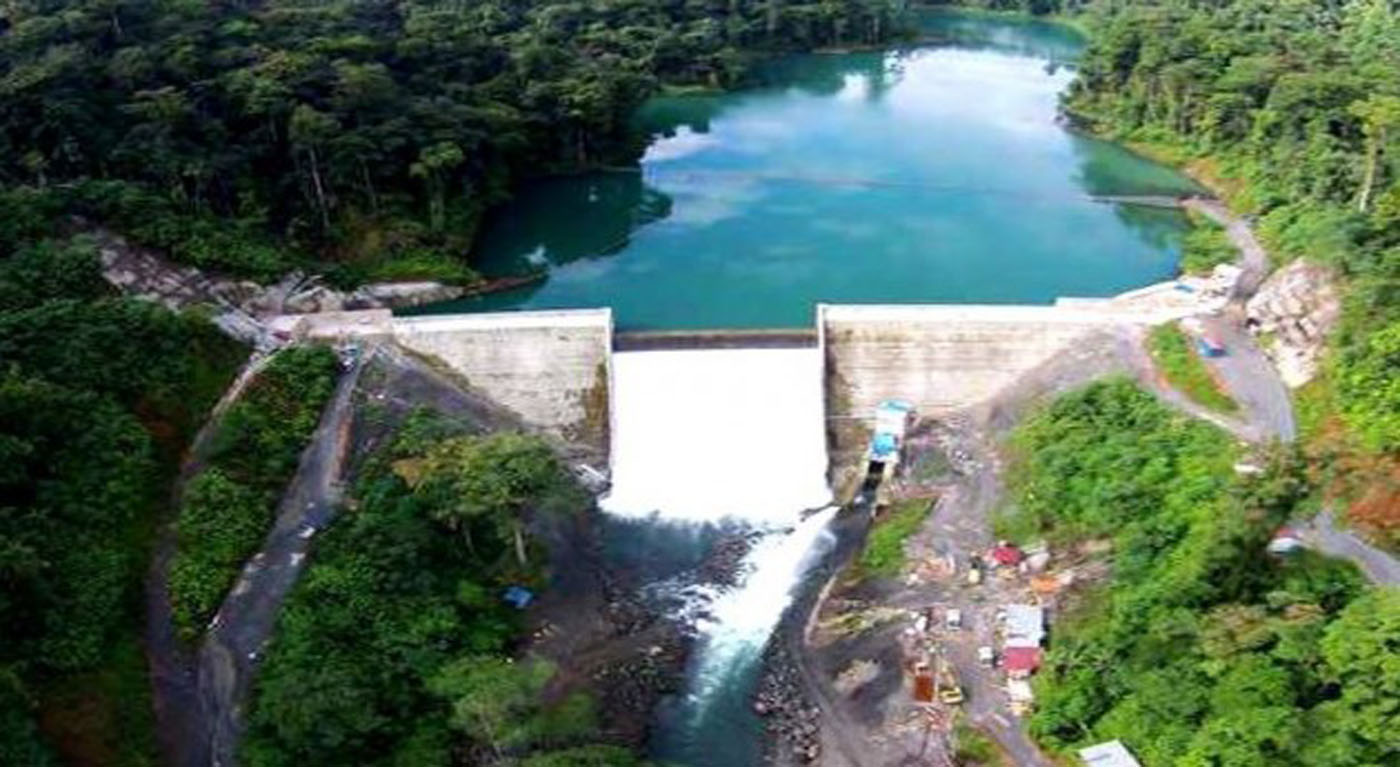

Bonyic

Download PDF data sheet
Bonyic completed
Bonyic completed

Particulars

Owner: Hidroécología Teribe (HET) S.A.

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 1 m3x106

Height: 37 metres

Length: 165 metres

Volume of RCC: unknown

Total volume: 88 m3x103

Construction Dates

Start of Project: /11 ( 2011)

Start of RCC: /13 ( 2013)

End of RCC: 08/14 (August 2014)

End of Project: /15 ( 2015)

Country: Panama

River: Bonyic

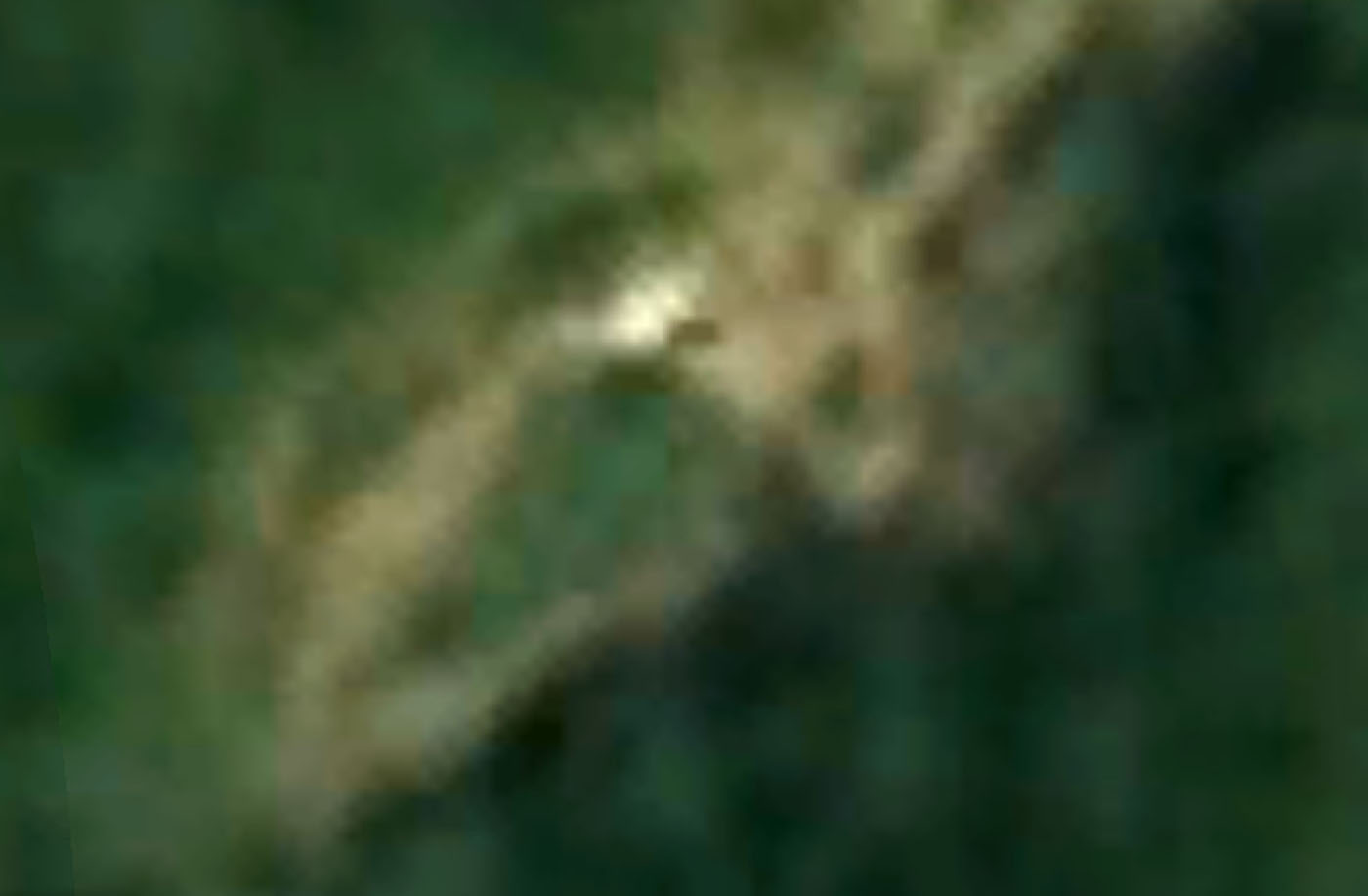

DMS Co-ordinates: 9˚19'20.54"N, 82˚38'52.04"W

DD Co-ordinates: 9.322372, -82.647789

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type
