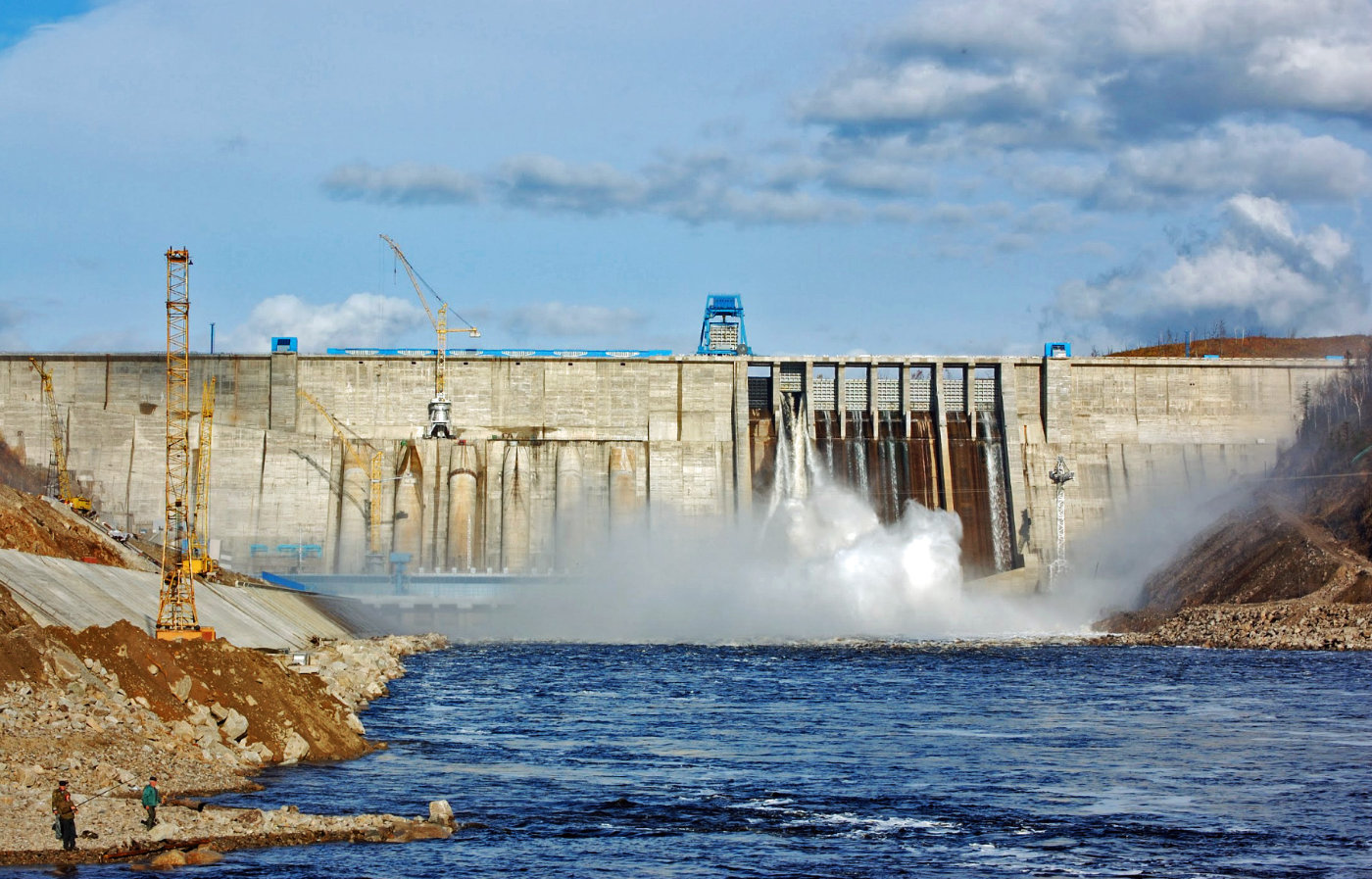

Bureyskaya

Download PDF data sheet
Bureyskaya completed
Bureyskaya completed

Particulars

Owner: RusHydro

Designer: Lenhydroproject, Inc.

Contractor: Bureyagesstroy

Statistics

Type: Gravity

Purpose(s): Flood Control / Hydropower

Reservoir capacity: 21000 m3x106

Height: 139 metres

Length: 810 metres

Volume of RCC: 709 m3x103

Total volume: 3538 m3x103

Construction Dates

Start of Project: 01/76 (January 1976)

Start of RCC: 01/85 (January 1985)

End of RCC: /03 ( 2003)

End of Project: /09 ( 2009)

Country: Russia

River: Bureya

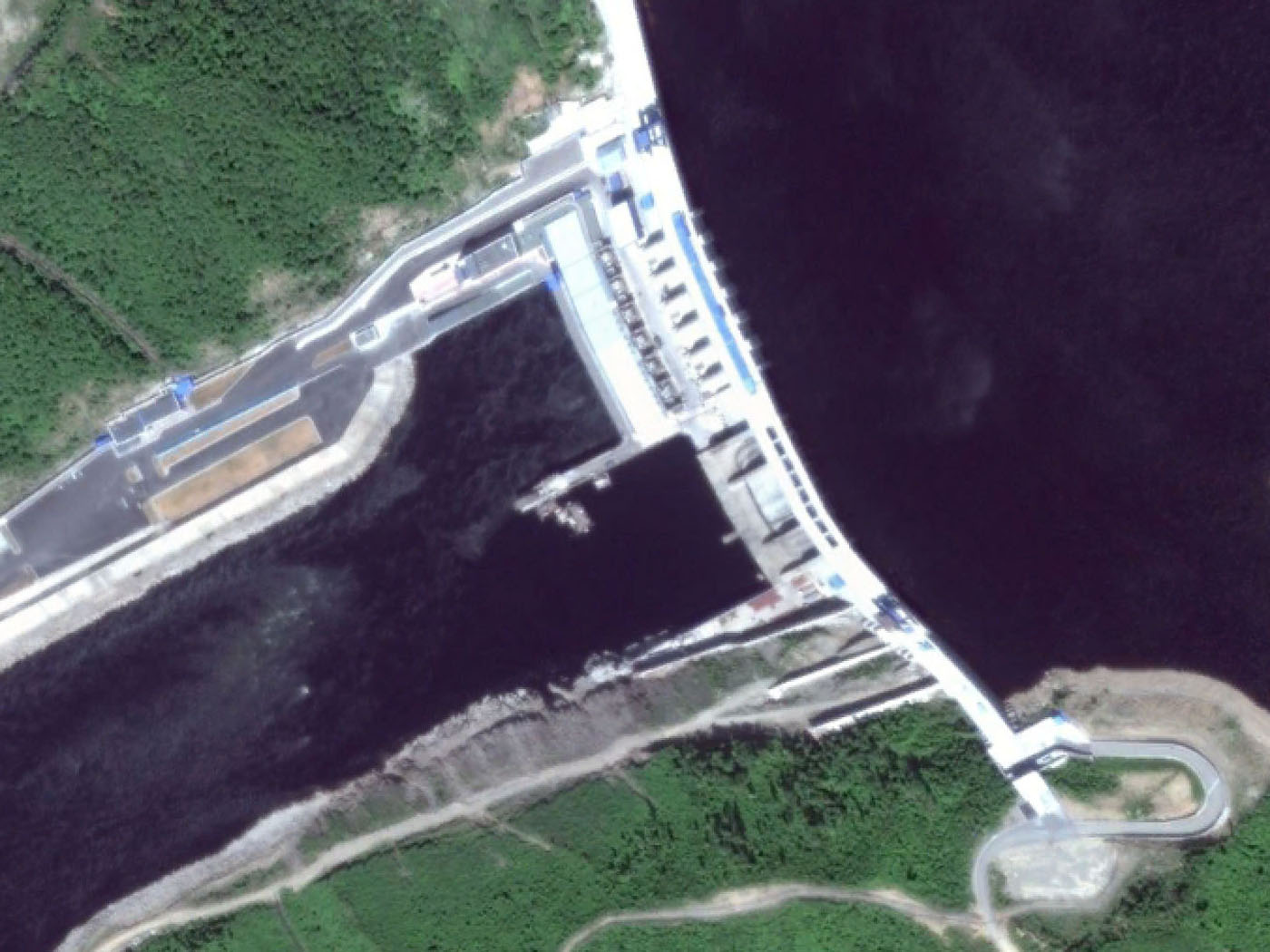

DMS Co-ordinates: 50˚16'10.66"N, 130˚18'47.50"E

DD Co-ordinates: 50.269627, 130.313187

Facings

Upstream

SlopeType
VerticalTraditional concrete against formwork

Downstream

SlopeType
0.70Traditional concrete against formwork

Spillway

SlopeType
0.70Traditional concrete against formwork

Placement

Layers (mm)Lifts (mm)
300  -300  -
500500

Cementitious material

Cement (kg/m3)
95  to
Pozzolan (kg/m3)Pozzolan Type
25  toNatural pozzolan (ASTM Class N)
