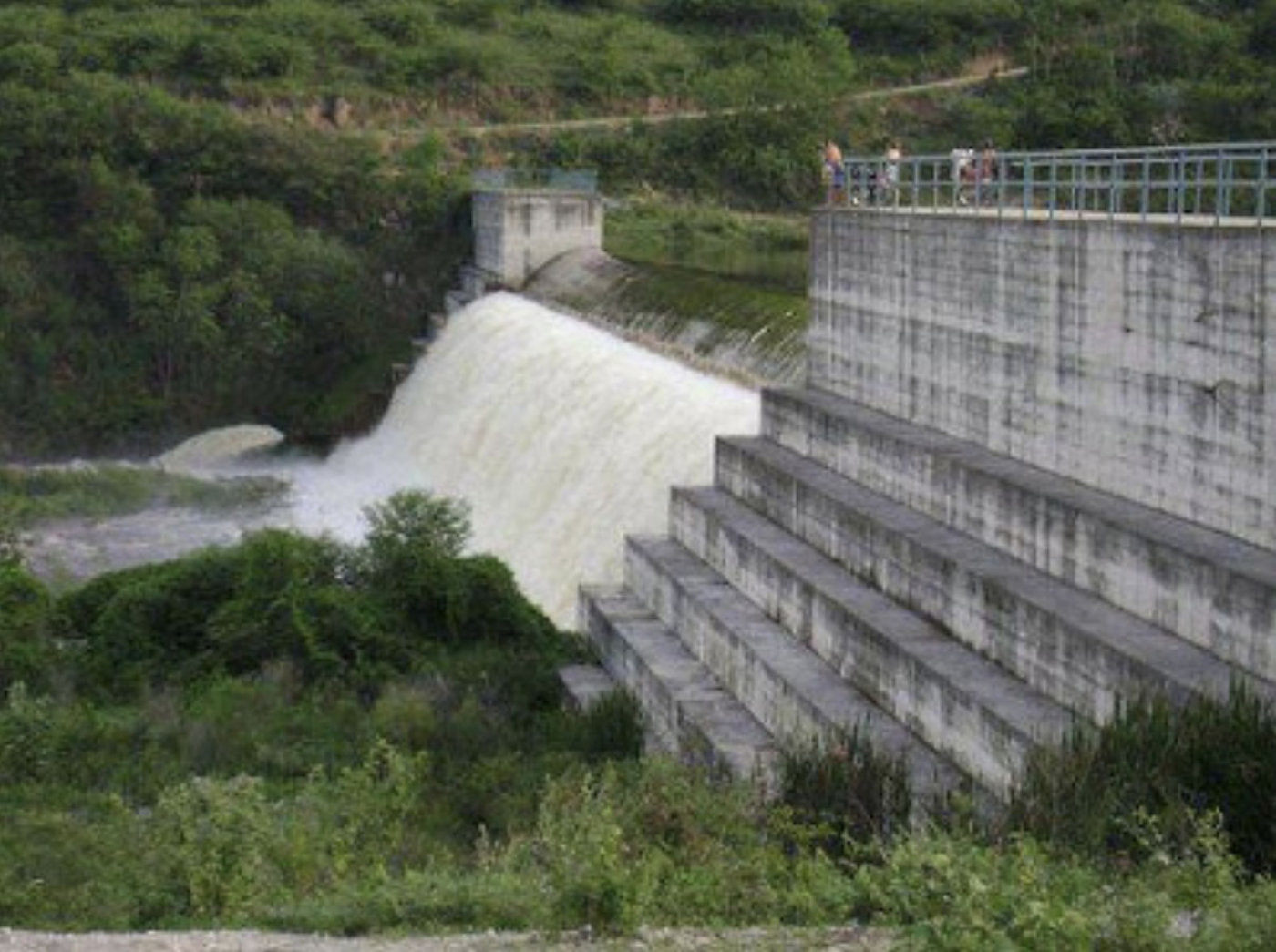

Cachoeira Grande

Download PDF data sheet

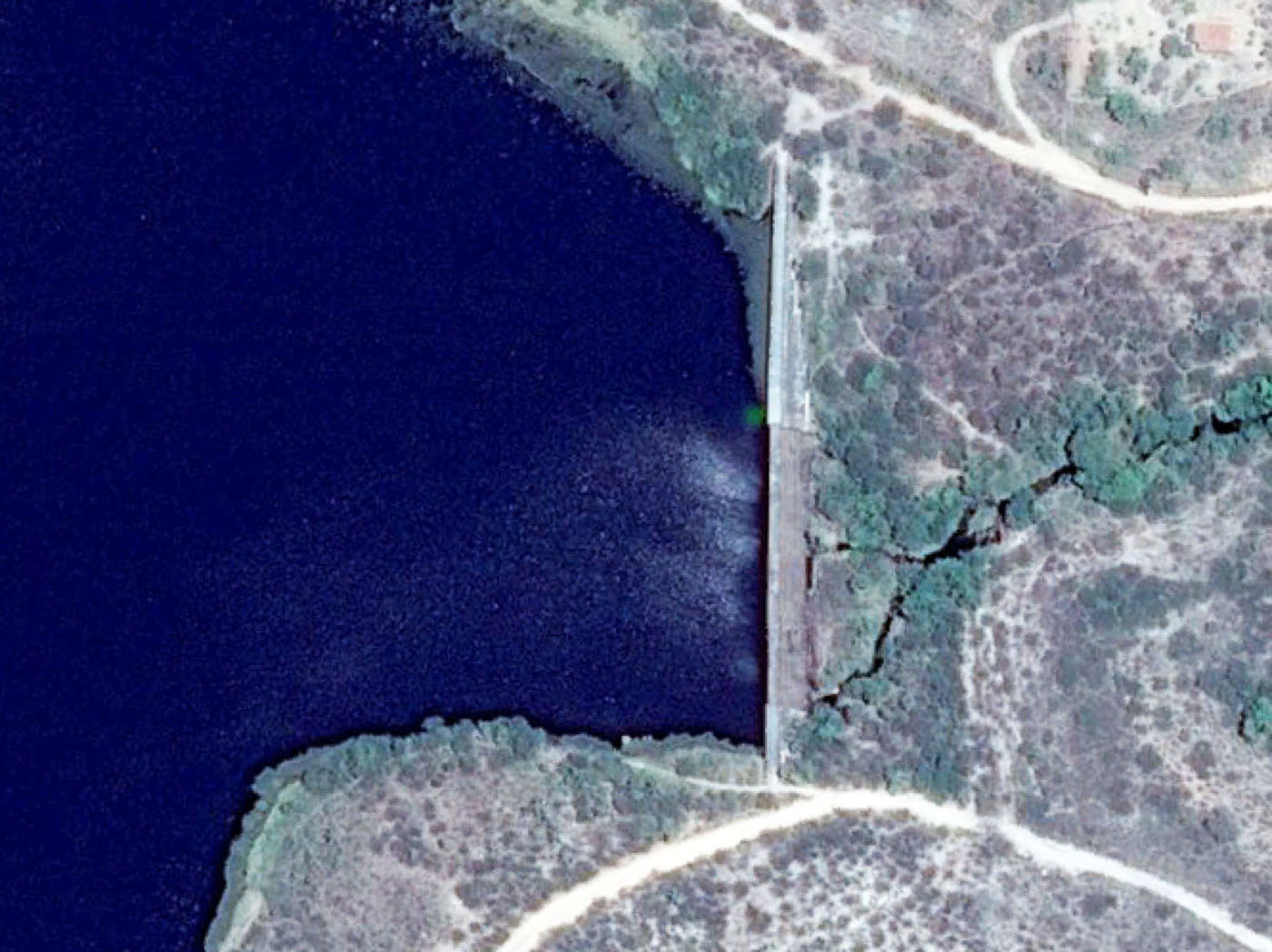

Cachoeira Grande on Google Earth
Cachoeira Grande on Google Earth

Particulars

Owner: Empresa Baiana de Aguas e Saneamento S/A

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: unknown

Height: 16 metres

Length: 207 metres

Volume of RCC: unknown

Total volume: unknown

Construction Dates

Start of Project: /04 ( 2004)

Start of RCC: /04 ( 2004)

End of RCC: /05 ( 2005)

End of Project: /05 ( 2005)

Country: Brazil

River: Chopin

DMS Co-ordinates: 11˚21'7.97"S, 40˚25'55.04"W

DD Co-ordinates: -11.352214, -40.431957

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type
