Castro Alves
Download PDF data sheet

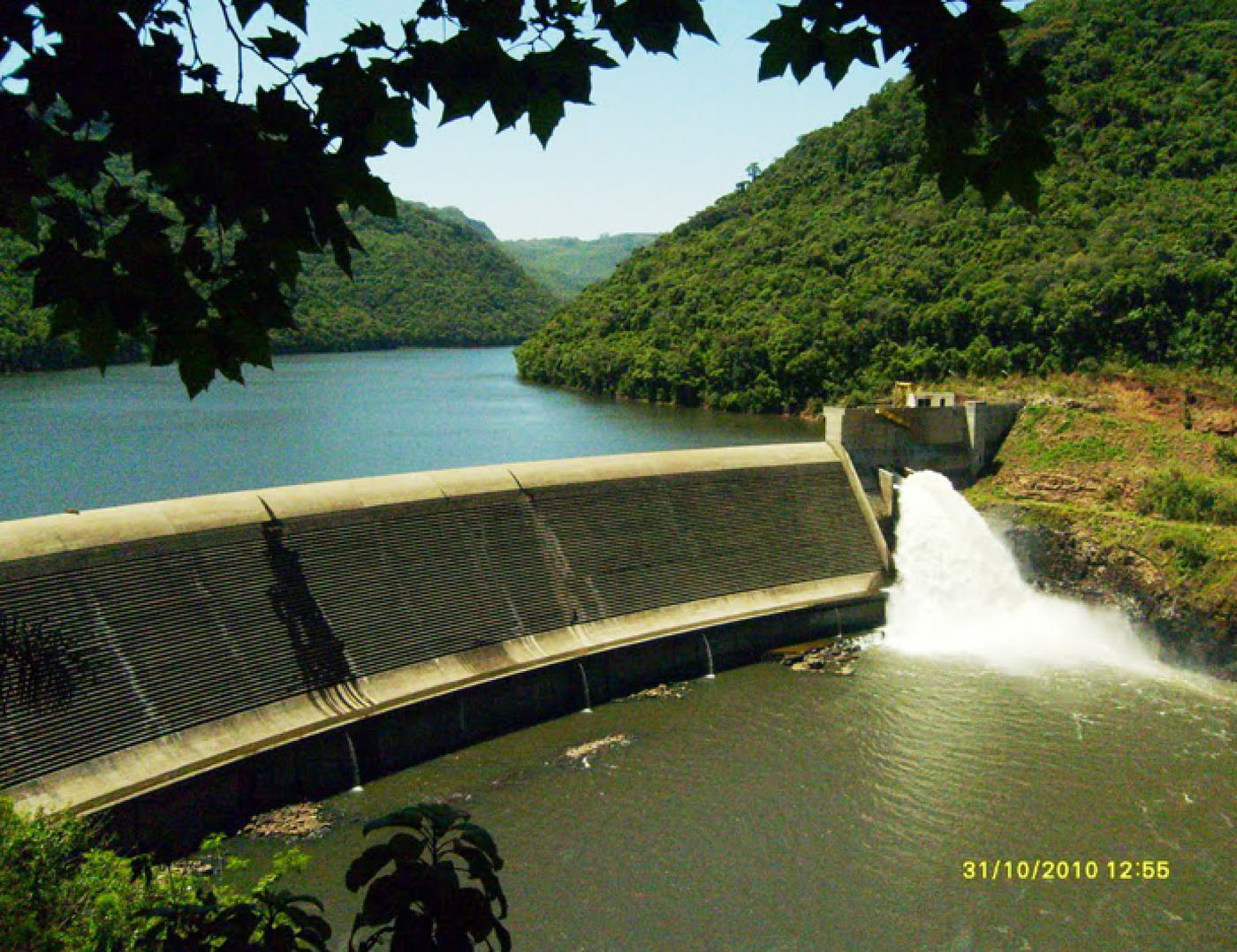

Castro Alves completed
Particulars
Owner: unknown
Designer: Engevix Engenharia and CCCC
Contractor: unknown
Statistics
Type: Gravity
Purpose(s): Hydropower
Reservoir capacity: 127 m3x106
Height: 48 metres
Length: 350 metres
Volume of RCC: 240 m3x103
Total volume: 322 m3x103

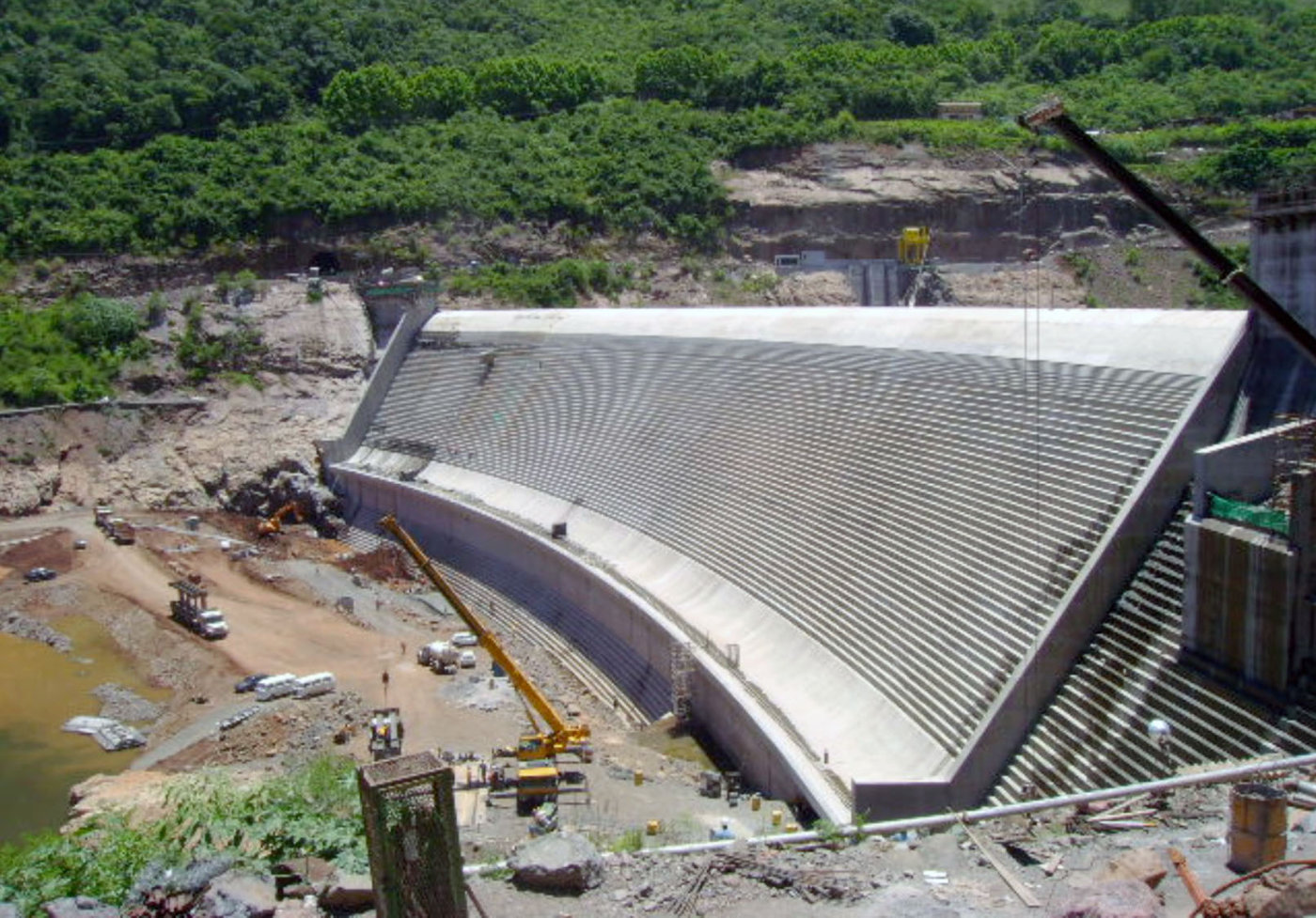

Construction Dates
Start of Project: —/05 (— 2005)
Start of RCC: —/06 (— 2006)
End of RCC: —/07 (— 2007)
End of Project: 02/08 (February 2008)
Country: Brazil
River: Das Antas

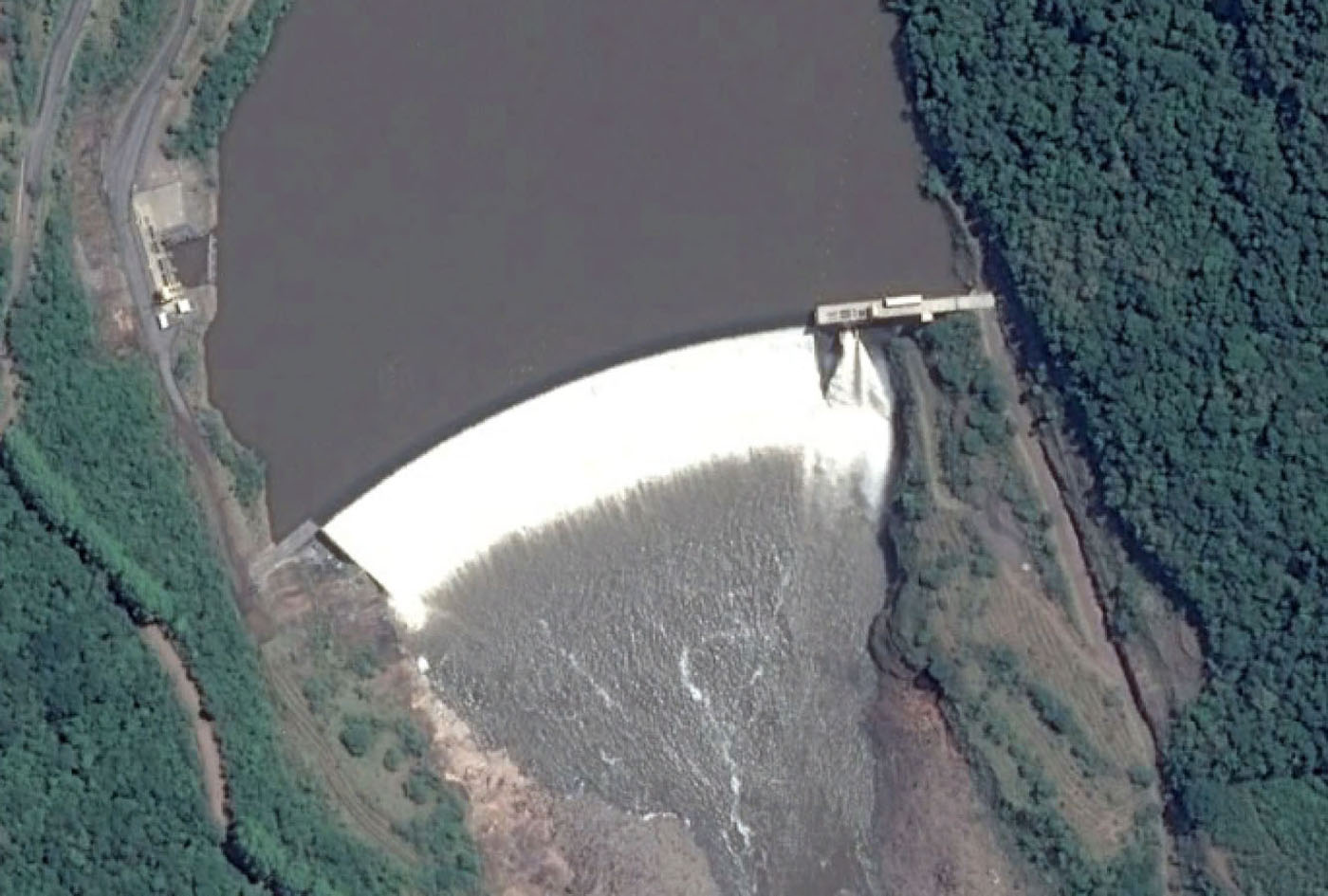

DMS Co-ordinates: 29˚0'19.95"S, 51˚23'3.39"W
DD Co-ordinates: -29.005543, -51.384277
Facings
Upstream
| Slope | Type |
|---|---|
| Vertical |
Downstream
| Slope | Type |
|---|---|
| 1.30 |
Spillway
| Slope | Type |
|---|---|
| 1.30 |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
Cementitious material
| Cement (kg/m3) |
|---|
| 60 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 15 | Natural pozzolan (ASTM Class N) |
