El Realito

Download PDF data sheet

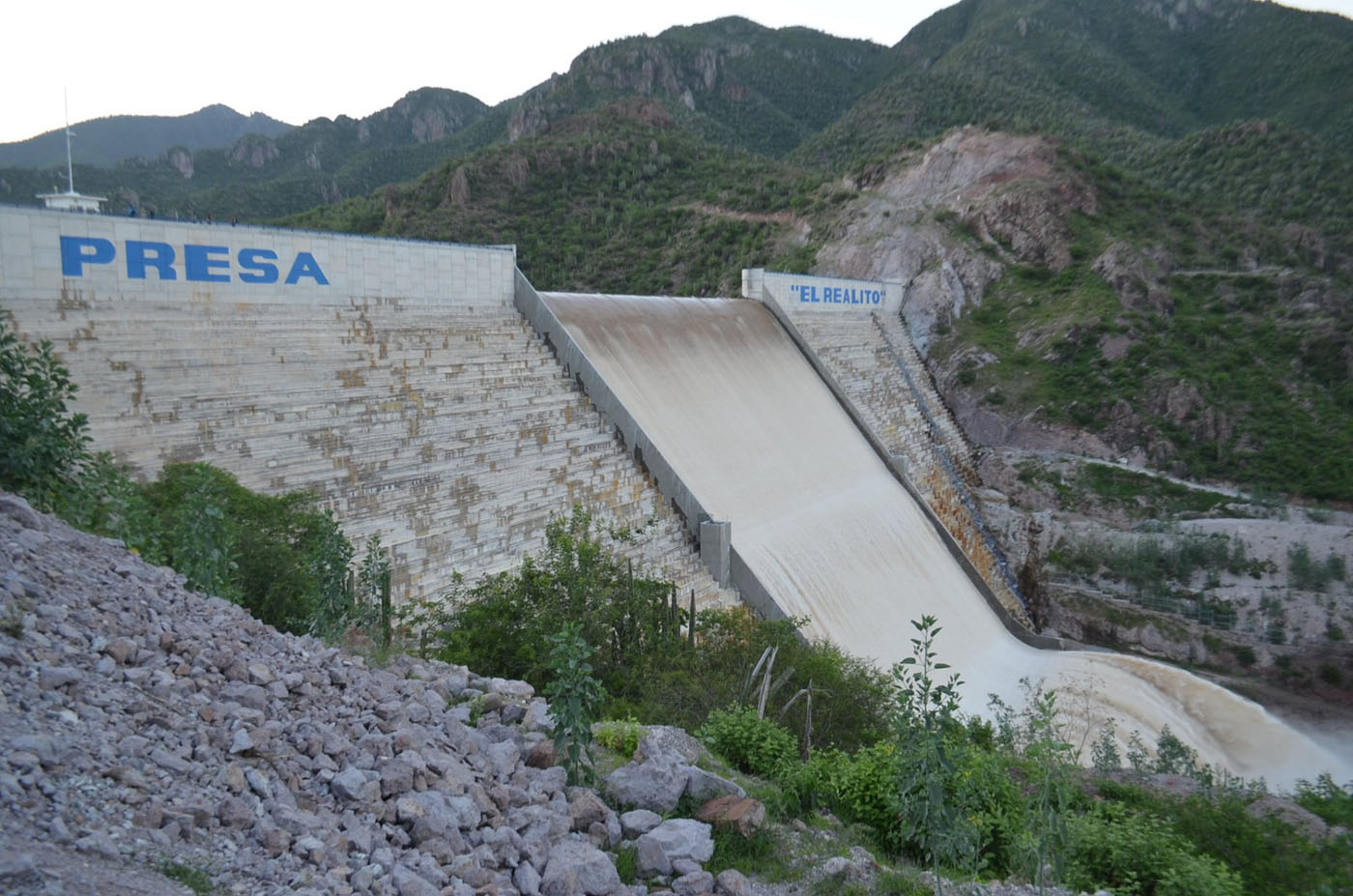

El Realito completed
El Realito completed

Particulars

Owner: CNA (Comisión Nacional del Agua)

Designer: Technoproject

Contractor: Grupo Carso/Carlo (La Constructora de Infraestructuras Latino Americana)

Statistics

Type: Gravity

Purpose(s): unknown

Reservoir capacity: 57 m3x106

Height: 85 metres

Length: 270 metres

Volume of RCC: 420 m3x103

Total volume: unknown

Construction Dates

Start of Project: /08 ( 2008)

Start of RCC: 07/09 (July 2009)

End of RCC: 06/11 (June 2011)

End of Project: /11 ( 2011)

Country: Mexico

River: Santa Maria

DMS Co-ordinates: 21˚36'25.96"N, 100˚14'9.57"W

DD Co-ordinates: 21.607210, -100.235992

Facings

Upstream

SlopeType
VerticalTraditional concrete against formwork

Downstream

SlopeType
0.85

Spillway

SlopeType
0.85

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
33  to
Pozzolan (kg/m3)Pozzolan Type
27  toGround-granulated blast-furnace slag
