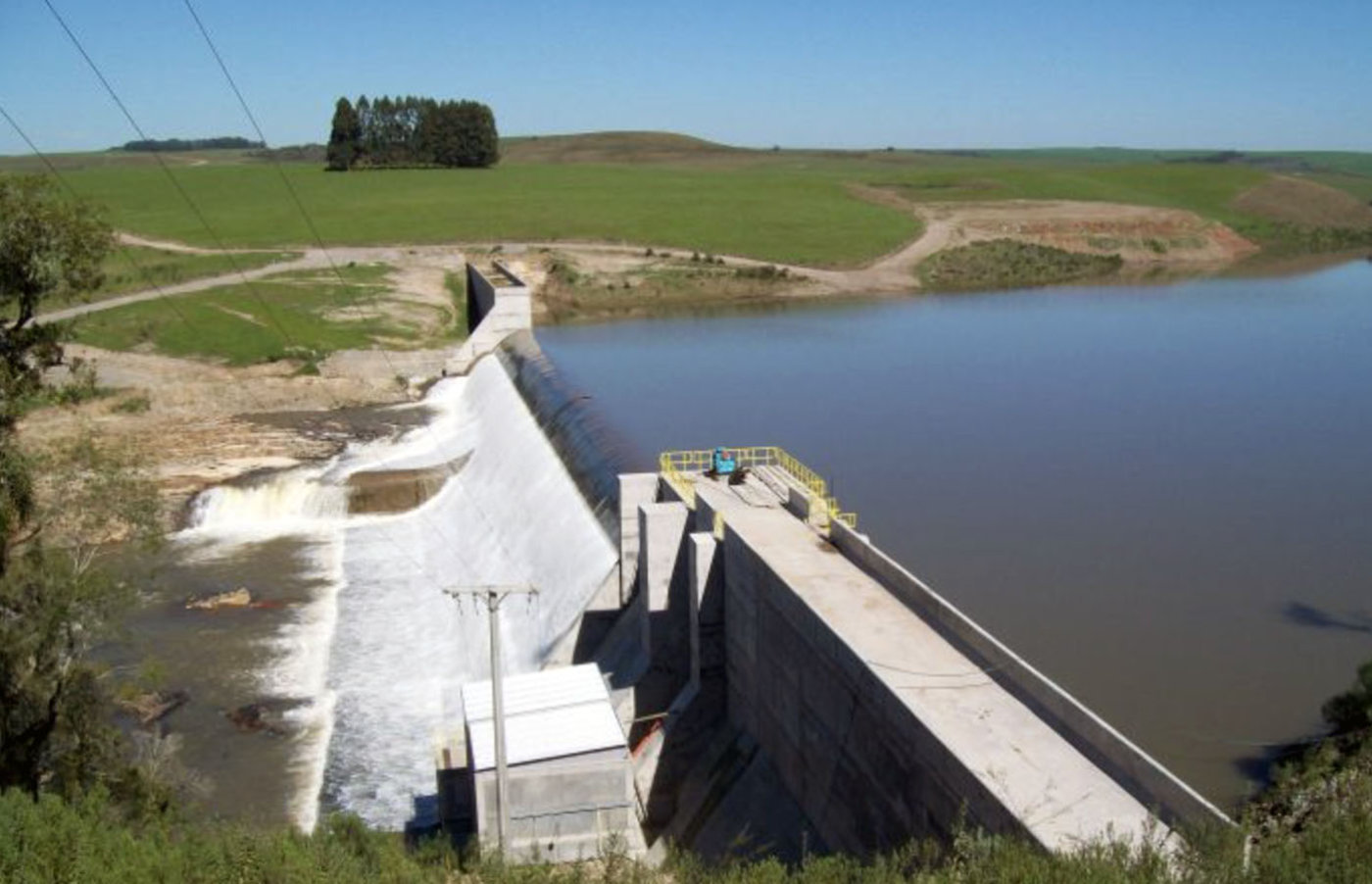

Engenheiro Ernesto Jorge Dreher

Download PDF data sheet

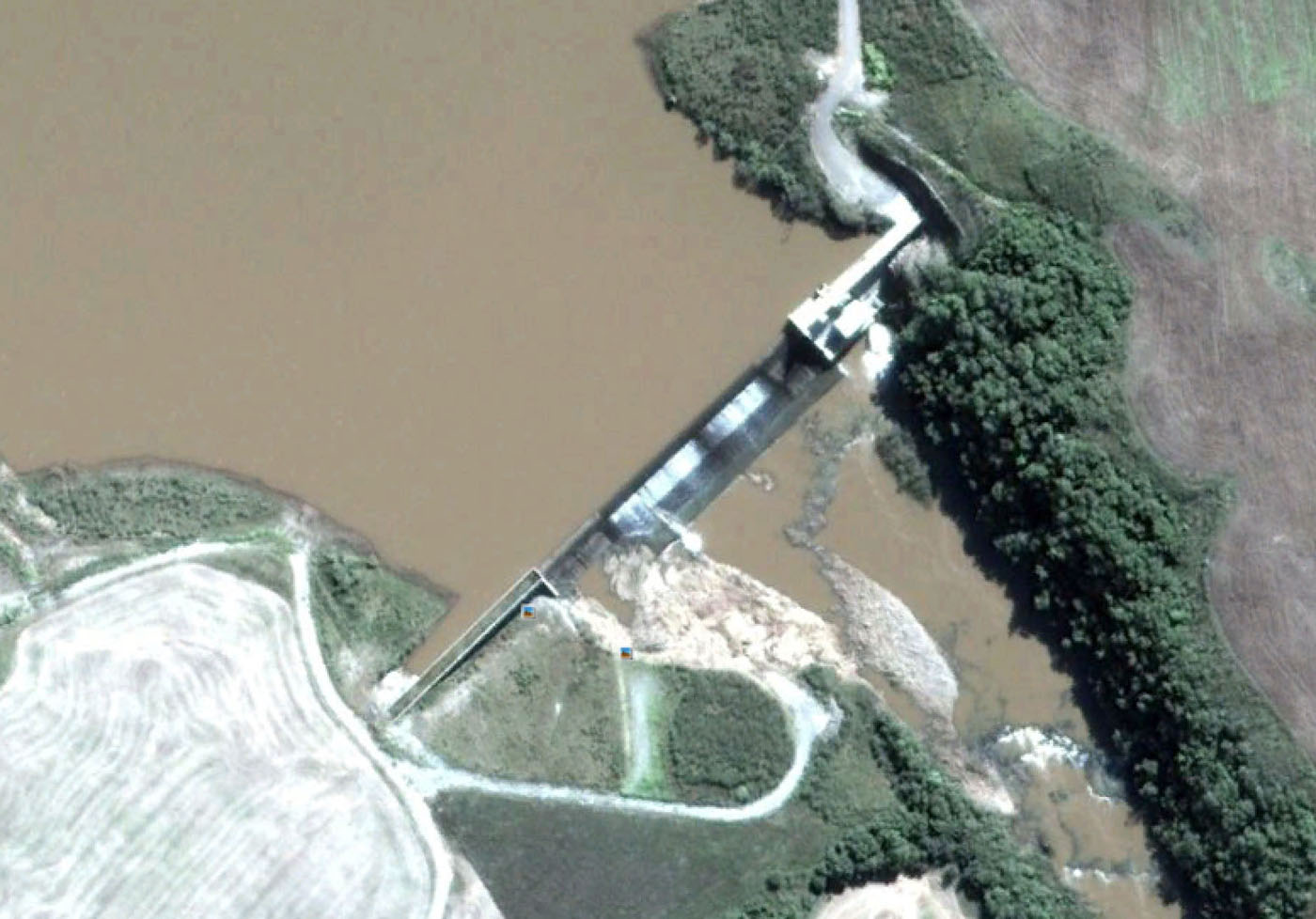

Engenheiro Ernesto Jorge Dreher on Google Earth
Engenheiro Ernesto Jorge Dreher on Google Earth

Particulars

Owner: Rincão do Ivaí Energia S.A.

Designer: unknown

Contractor: Toniolo, Busnello

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 4 m3x106

Height: 23 metres

Length: 220 metres

Volume of RCC: 29 m3x103

Total volume: 35 m3x103

Construction Dates

Start of Project: /07 ( 2007)

Start of RCC: /08 ( 2008)

End of RCC: /08 ( 2008)

End of Project: 04/09 (April 2009)

Country: Brazil

River: Ivai

DMS Co-ordinates: 29˚07'20.14"S, 53˚21'58.63"W

DD Co-ordinates: -29.122261, -53.366287

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)
68
Pozzolan (kg/m3)Pozzolan Type
17
