Enjil

Download PDF data sheet

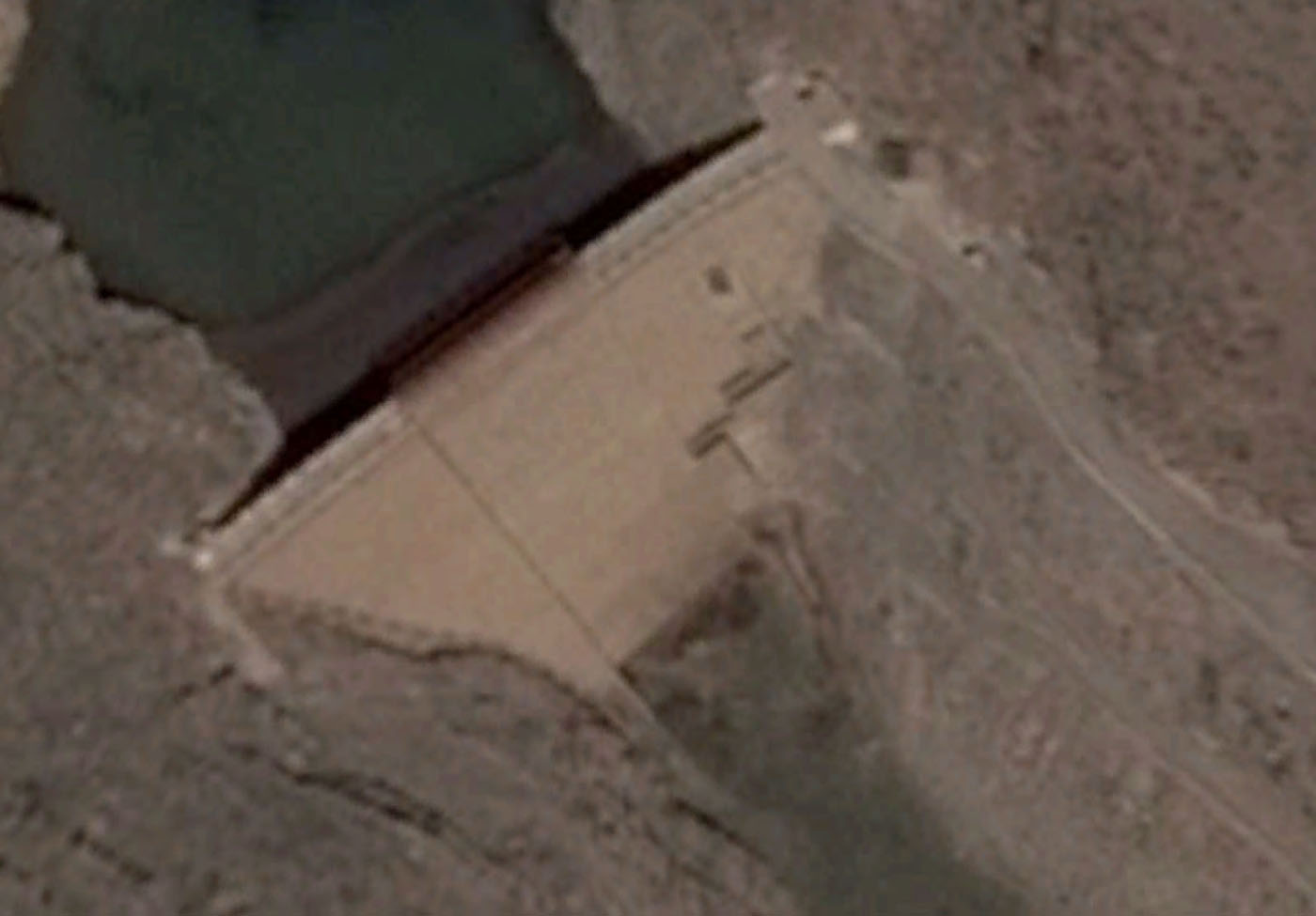

Enjil on Google Earth
Enjil on Google Earth

Particulars

Owner: Direction des Aménagements Hydrauliques

Designer: EQUITER

Contractor: Direction des Aménagements Hydrauliques

Statistics

Type: Gravity

Purpose(s): Irrigation / Water Supply

Reservoir capacity: 12 m3x106

Height: 36 metres

Length: 80 metres

Volume of RCC: 45 m3x103

Total volume: 57 m3x103

Construction Dates

Start of Project: 11/93 (November 1993)

Start of RCC: 03/94 (March 1994)

End of RCC: 10/95 (October 1995)

End of Project: 03/96 (March 1996)

Country: Morocco

River: Taghoucht

DMS Co-ordinates: 33˚14'16.24"N, 4˚39'0.21"W

DD Co-ordinates: 33.237843, -4.650058

Facings

Upstream

SlopeType
0.20Traditional concrete against precast concrete panels

Downstream

SlopeType
0.80Traditional concrete against formwork  [stepped face]

Spillway

SlopeType
0.80Traditional concrete against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
110
150
Pozzolan (kg/m3)Pozzolan Type
0Natural pozzolan (ASTM Class N)
0
