Esmeralda

Download PDF data sheet

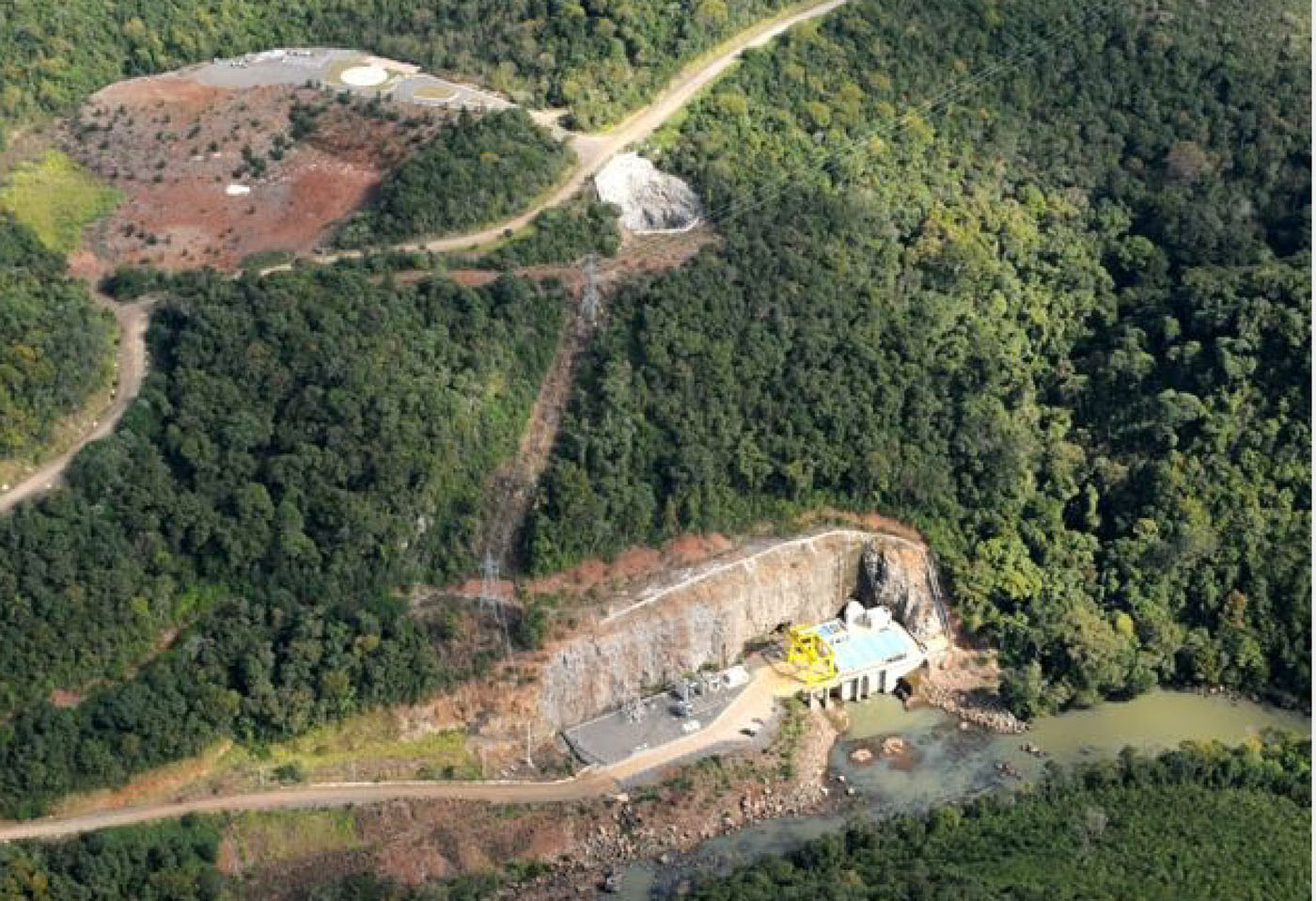

Esmeralda under construction
Esmeralda under construction

Particulars

Owner: unknown

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 1 m3x106

Height: 19 metres

Length: unknown

Volume of RCC: 15 m3x103

Total volume: 27 m3x103

Construction Dates

Start of Project: /05 ( 2005)

Start of RCC: /05 ( 2005)

End of RCC: /06 ( 2006)

End of Project: /06 ( 2006)

Country: Brazil

River: unknown

DMS Co-ordinates: 27˚47'19.39"S, 51˚20'52.81"W

DD Co-ordinates: -27.788719, -51.348003

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)
64
Pozzolan (kg/m3)Pozzolan Type
16
