Hervás

Download PDF data sheet

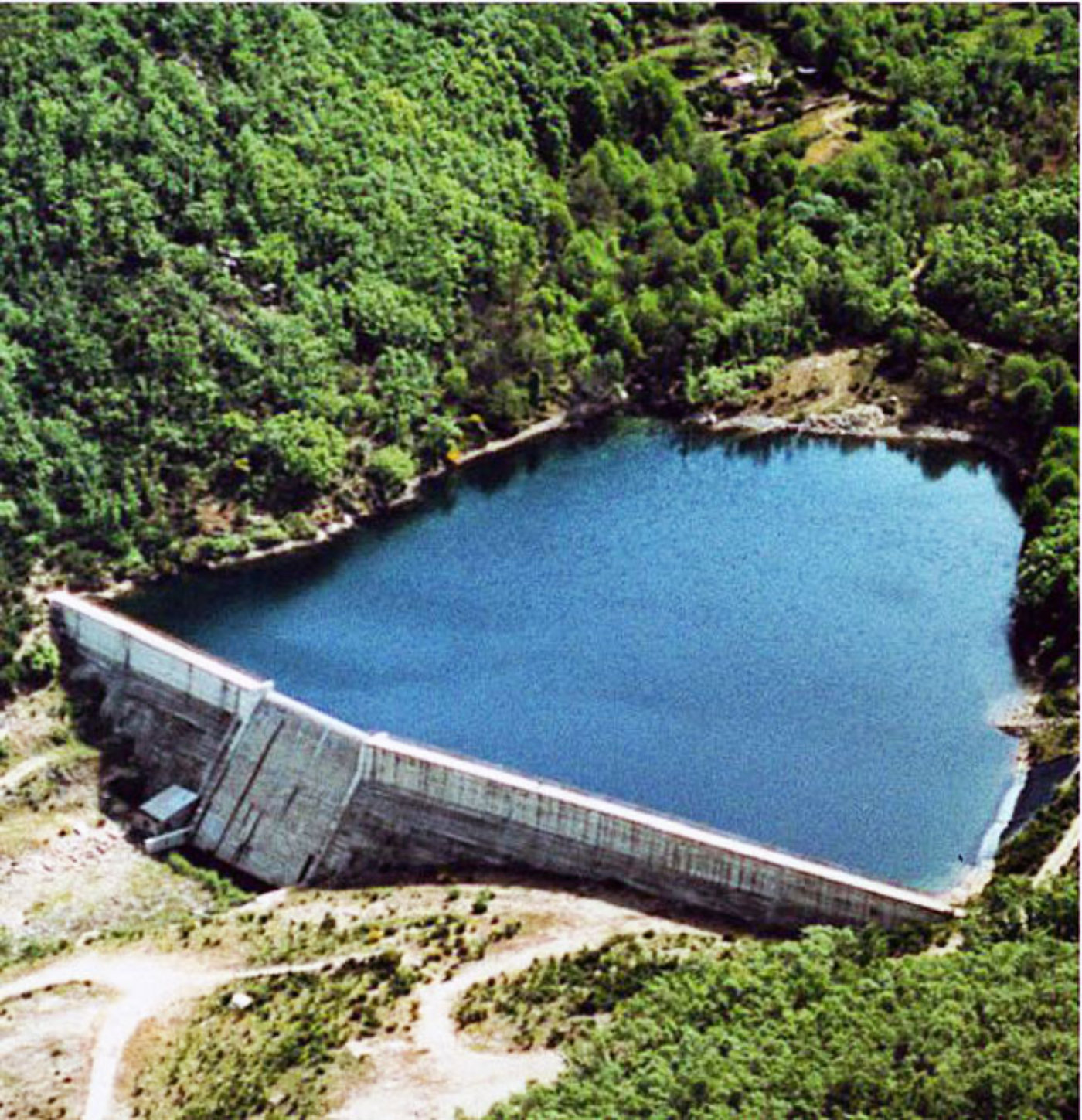

Hervás completed
Hervás completed

Particulars

Owner: Junta de Extremadura

Designer: Euroestudios S.A.

Contractor: Construcciones y Contratas

Statistics

Type: Gravity

Purpose(s): Water Supply

Reservoir capacity: 1 m3x106

Height: 33 metres

Length: 210 metres

Volume of RCC: 24 m3x103

Total volume: 43 m3x103

Construction Dates

Start of Project: 01/89 (January 1989)

Start of RCC: 03/90 (March 1990)

End of RCC: 09/90 (September 1990)

End of Project: 10/90 (October 1990)

Country: Spain

River: Hervás

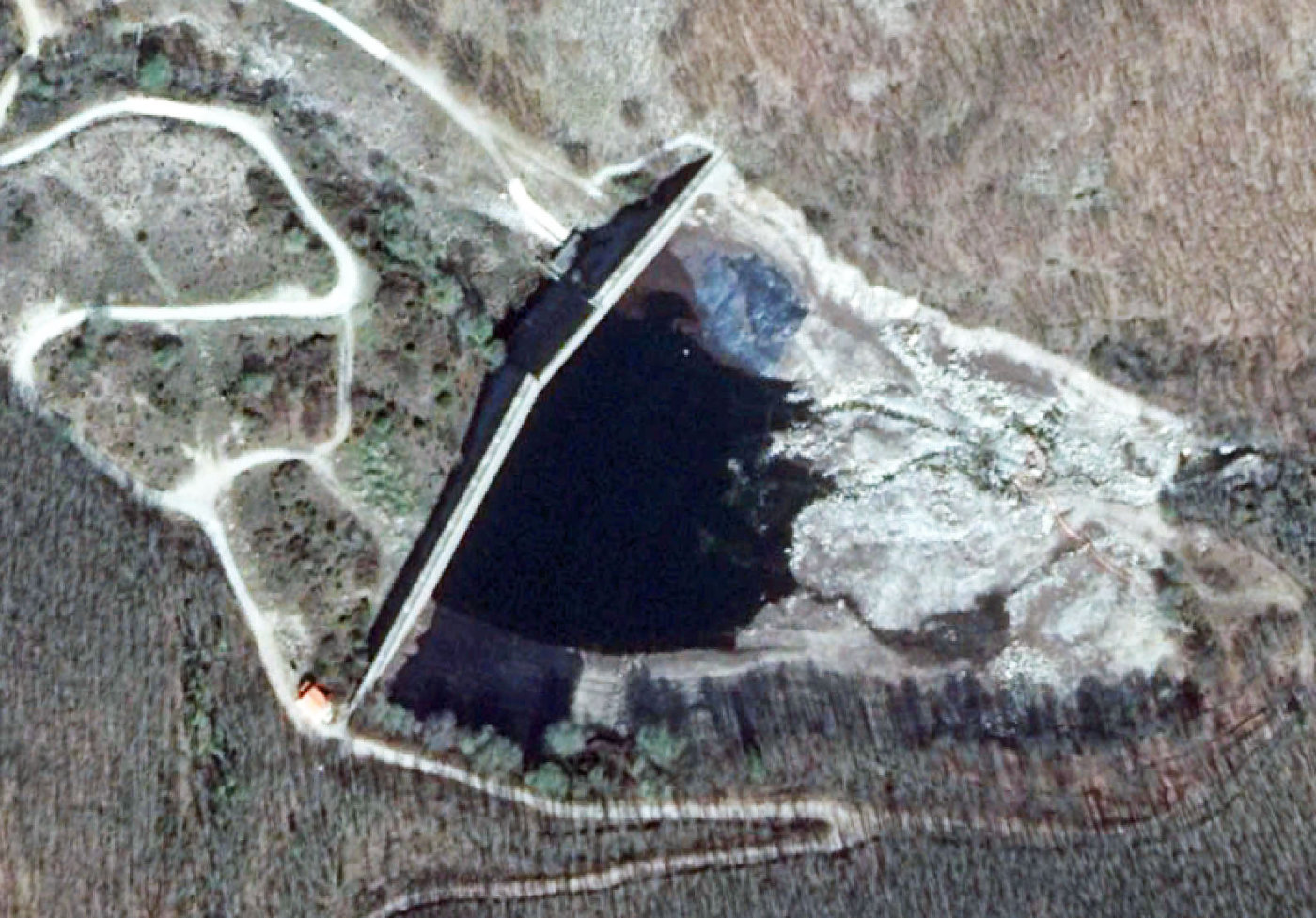

DMS Co-ordinates: 40˚16'9.39"N, 5˚49'26.92"W

DD Co-ordinates: 40.269276, -5.824144

Facings

Upstream

SlopeType
0.15Traditional concrete against formwork

Downstream

SlopeType
0.70Traditional concrete against formwork  [stepped face]
 Traditional concrete against precast concrete panels  [stepped face]

Spillway

SlopeType
0.70Traditional concrete against formwork

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
80
Pozzolan (kg/m3)Pozzolan Type
155Low-lime flyash (ASTM Class F)
