Huizhou PSS - Lower dam

Download PDF data sheet

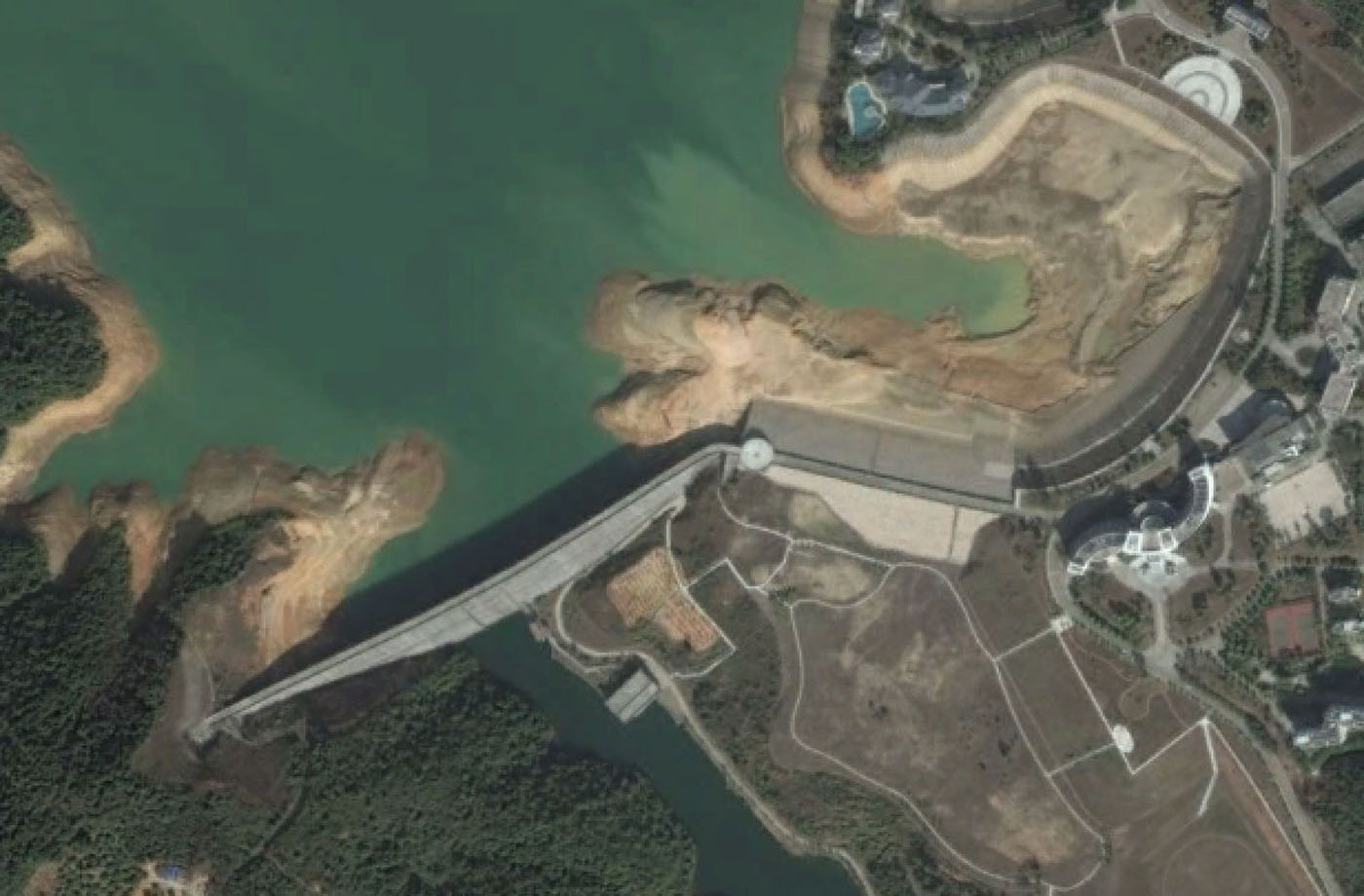

Huizhou PSS - Lower dam on Google Earth
Huizhou PSS - Lower dam on Google Earth

Particulars

Owner: China Southern Power Grid

Designer: Guangdong Provincial Investigation and Design Institute of Water Conservancy and Electric Power

Contractor: Guangdong 2nd Construction Bureau

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 32 m3x106

Height: 61 metres

Length: 420 metres

Volume of RCC: 235 m3x103

Total volume: 242 m3x103

Construction Dates

Start of Project: /02 ( 2002)

Start of RCC: /03 ( 2003)

End of RCC: /05 ( 2005)

End of Project: /11 ( 2011)

Country: China

River: Caitouhe

DMS Co-ordinates: 23˚16'6.53"N, 114˚18'33.36"E

DD Co-ordinates: 23.268480, 114.309265

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type
