Huizhou PSS - Upper dam

Download PDF data sheet

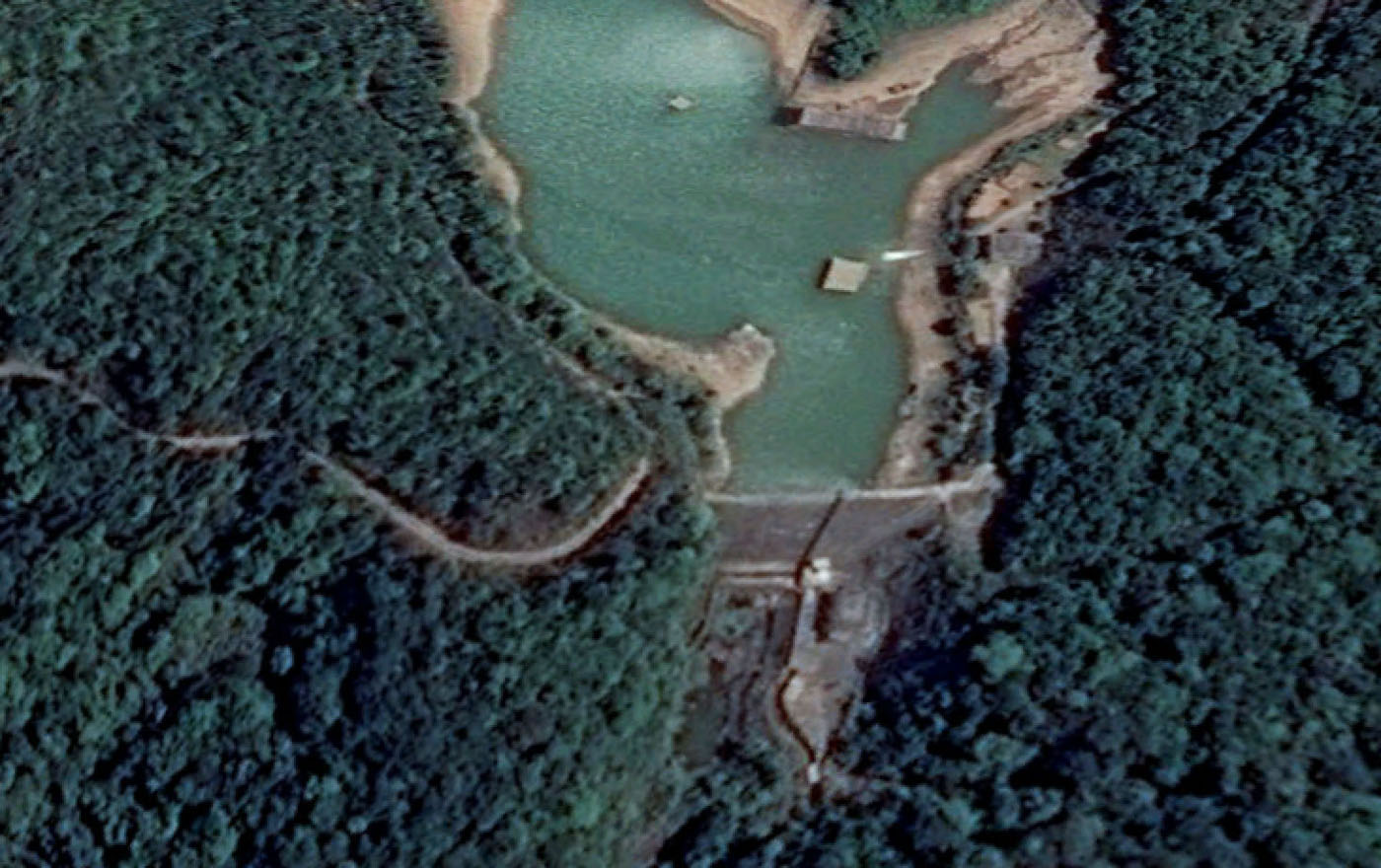

Huizhou PSS - Upper dam on Google Earth
Huizhou PSS - Upper dam on Google Earth

Particulars

Owner: China Southern Power Grid

Designer: Guangdong Provincial Investigation and Design Institute of Water Conservancy and Electric Power

Contractor: 8th Construction Bureau

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 32 m3x106

Height: 56 metres

Length: 168 metres

Volume of RCC: 84 m3x103

Total volume: 93 m3x103

Construction Dates

Start of Project: 10/04 (October 2004)

Start of RCC: 12/05 (December 2005)

End of RCC: 05/07 (May 2007)

End of Project: /11 ( 2011)

Country: China

River: Xiaojinhe

DMS Co-ordinates: 23˚16'40.26"N, 114˚22'00.14"E

DD Co-ordinates: 23.277849, 114.366707

Facings

Upstream

SlopeType
VerticalTraditional concrete against formwork

Downstream

SlopeType
0.75Traditional concrete against formwork

Spillway

SlopeType
0.70Traditional concrete against formwork

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
64
Pozzolan (kg/m3)Pozzolan Type
125Low-lime flyash (ASTM Class F)
