Karamürsel Ihsaniye

Download PDF data sheet

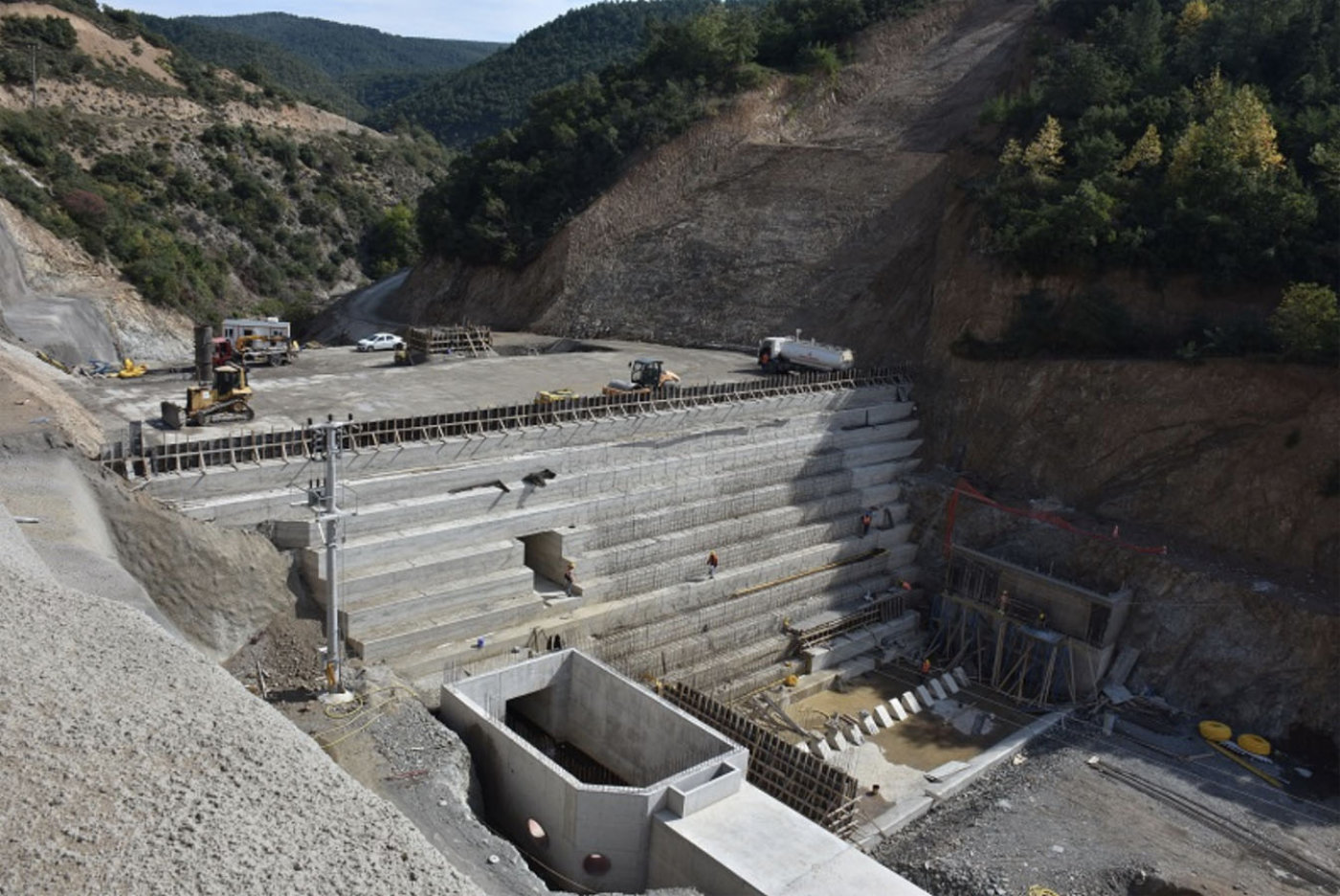

Karamürsel Ihsaniye under construction
Karamürsel Ihsaniye under construction

Particulars

Owner: DSI - State Hydraulic Works

Designer: unknown

Contractor: Ceysu Insaat

Statistics

Type: Gravity

Purpose(s): Irrigation / Water Supply

Reservoir capacity: 9 m3x106

Height: 69 metres

Length: unknown

Volume of RCC: 130 m3x103

Total volume: 185 m3x103

Construction Dates

Start of Project: 03/16 (March 2016)

Start of RCC: 03/17 (March 2017)

End of RCC: 04/19 (April 2019)

End of Project: 12/19 (December 2019)

Country: Turkey

River: unknown

DMS Co-ordinates: unknown

DD Co-ordinates: unknown

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)
75
Pozzolan (kg/m3)Pozzolan Type
45Low-lime flyash (ASTM Class F)
