La Puebla de Cazalla

Download PDF data sheet

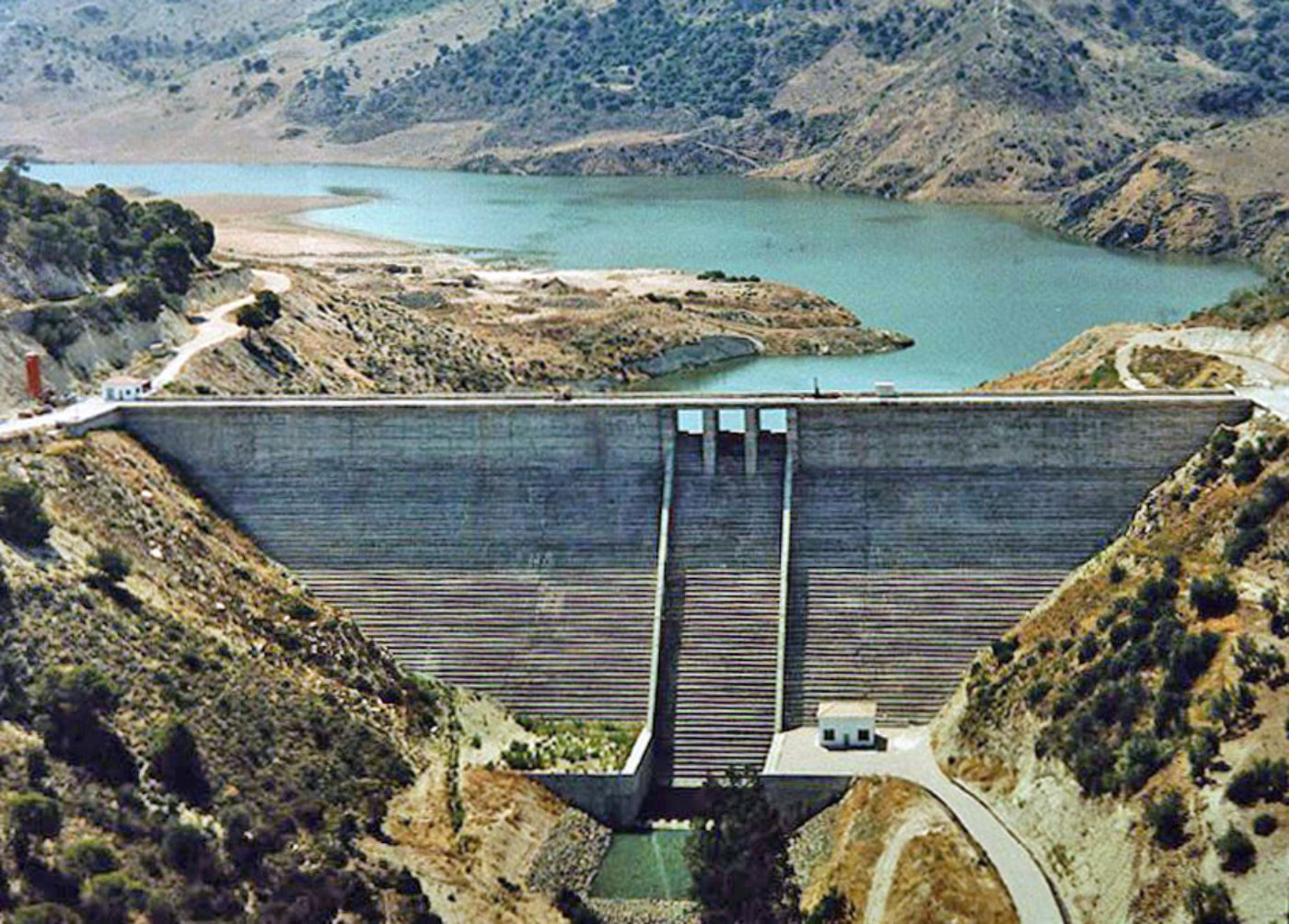

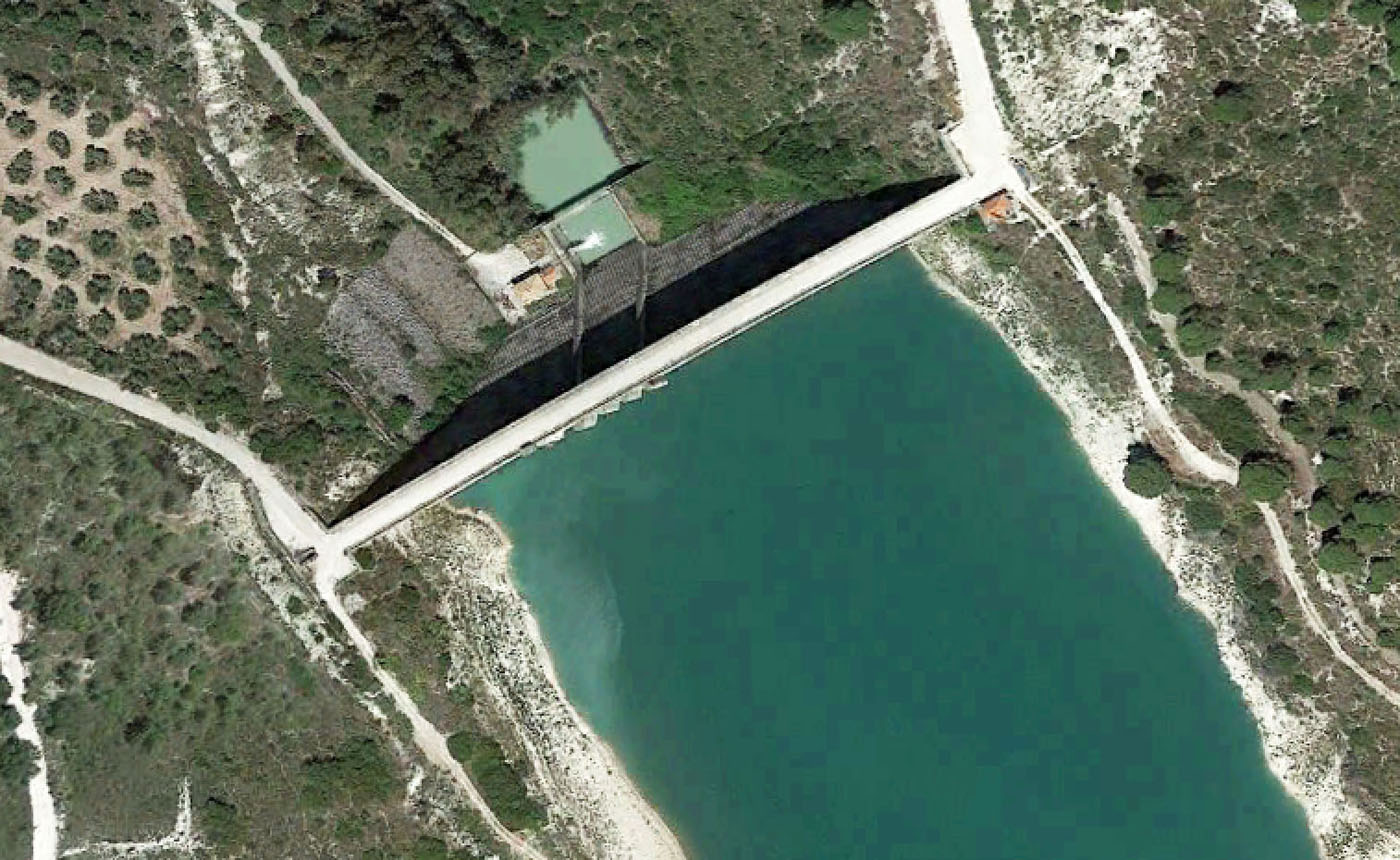

La Puebla de Cazalla completed
La Puebla de Cazalla completed

Particulars

Owner: Confederación Hidrográfica del Guadalquivir

Designer: Agua y Estructuras S.A. (AYESA)

Contractor: Huarte S.A.

Statistics

Type: Gravity

Purpose(s): Irrigation

Reservoir capacity: 74 m3x106

Height: 71 metres

Length: 220 metres

Volume of RCC: 205 m3x103

Total volume: 220 m3x103

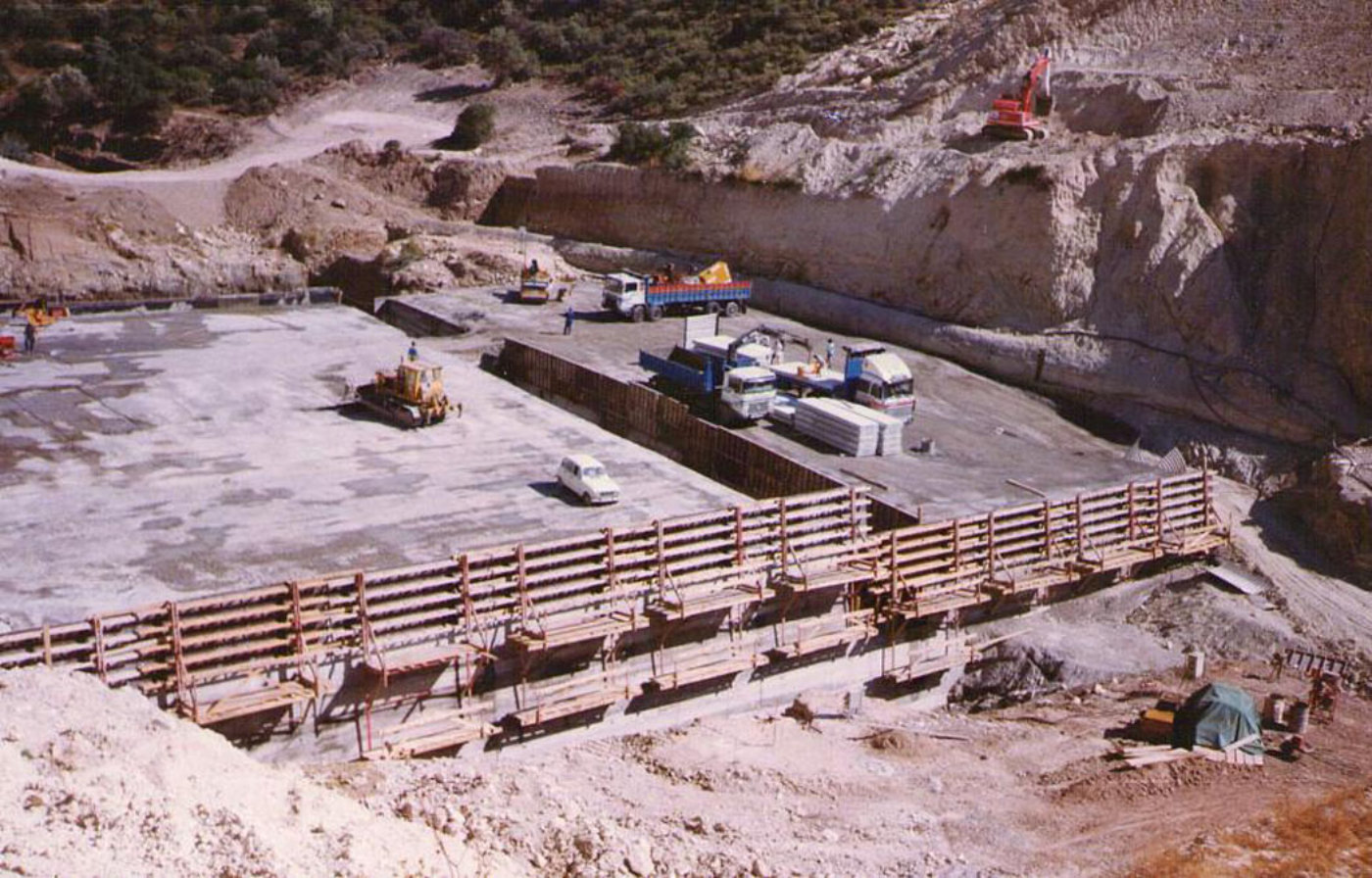

Construction Dates

Start of Project: 03/88 (March 1988)

Start of RCC: 08/89 (August 1989)

End of RCC: 10/91 (October 1991)

End of Project: 12/91 (December 1991)

Country: Spain

River: Corbones

DMS Co-ordinates: 37˚7'46.9"N, 5˚14'36.76"W

DD Co-ordinates: 37.129696, -5.243544

Facings

Upstream

SlopeType
VerticalRCC against formwork
0.20RCC against formwork

Downstream

SlopeType
0.80RCC against formwork  [stepped face]

Spillway

SlopeType
0.80RCC against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
80
Pozzolan (kg/m3)Pozzolan Type
130Low-lime flyash (ASTM Class F)
