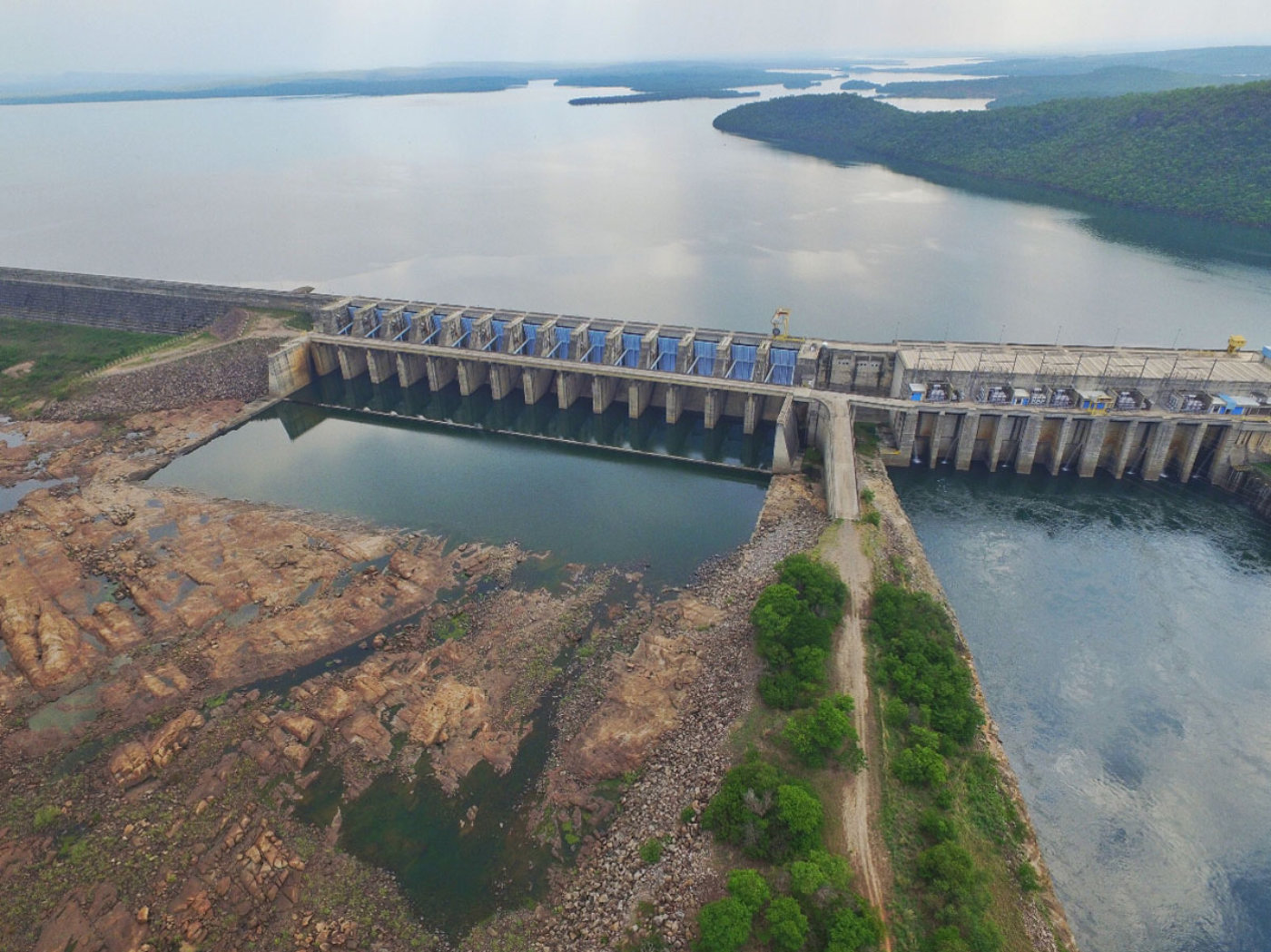

Lajeado (Luis Eduardo Magalhães)

Download PDF data sheet
Lajeado (Luis Eduardo Magalhães) completed
Lajeado (Luis Eduardo Magalhães) completed

Particulars

Owner: Investco (Tractebel)

Designer: Themag

Contractor: Odebrecht and Andrade Gutierrez

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 4982 m3x106

Height: 43 metres

Length: 2100 metres

Volume of RCC: 188 m3x103

Total volume: 210 m3x103

Construction Dates

Start of Project: 07/98 (July 1998)

Start of RCC: 06/01 (June 2001)

End of RCC: 12/01 (December 2001)

End of Project: 12/02 (December 2002)

Country: Brazil

River: Tocantins

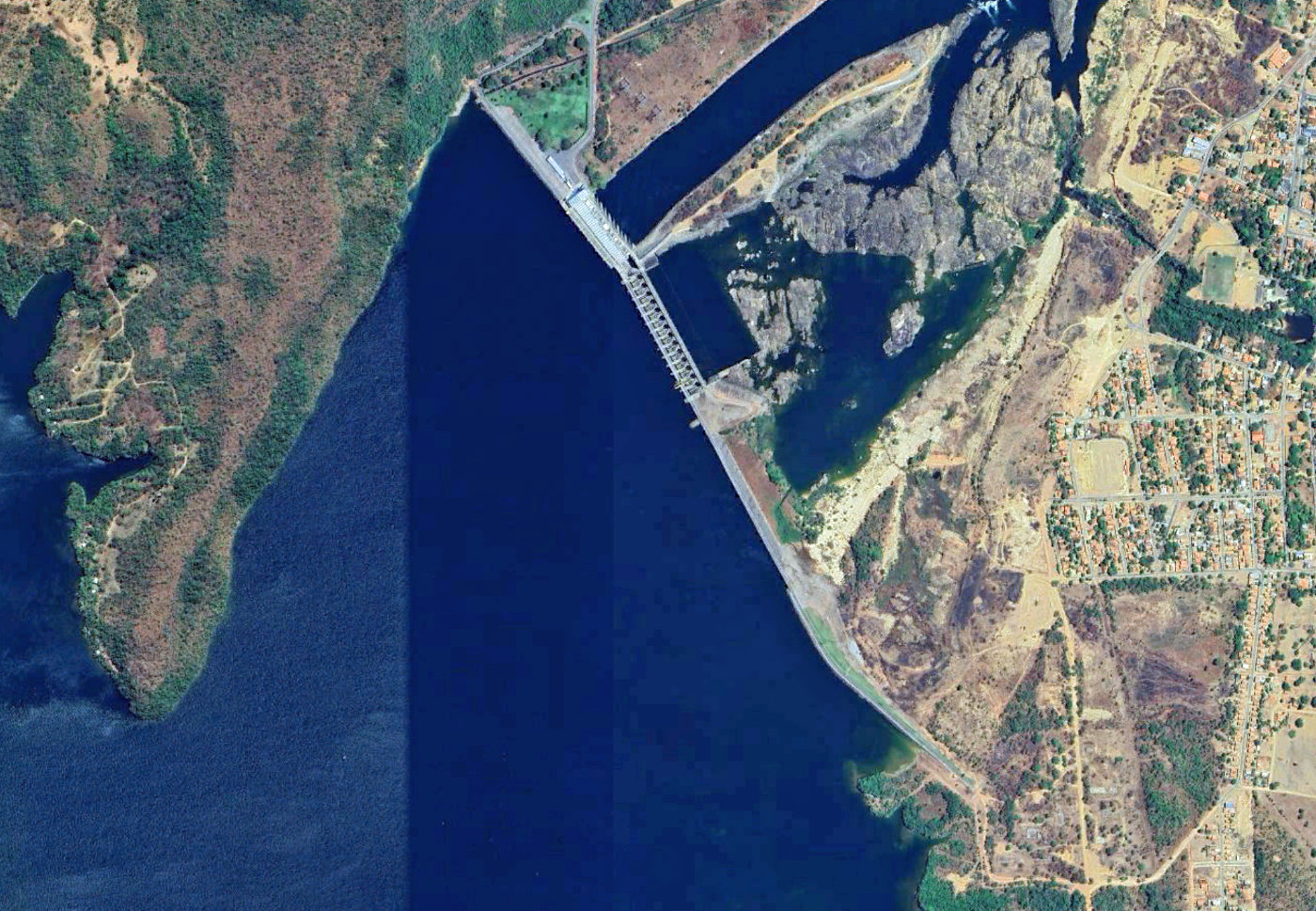

DMS Co-ordinates: 09˚45'28.14"S, 48˚22'18.97"W

DD Co-ordinates: -9.757817, -48.371937

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
30
Pozzolan (kg/m3)Pozzolan Type
40Ground-granulated blast-furnace slag
