Moínho

Download PDF data sheet

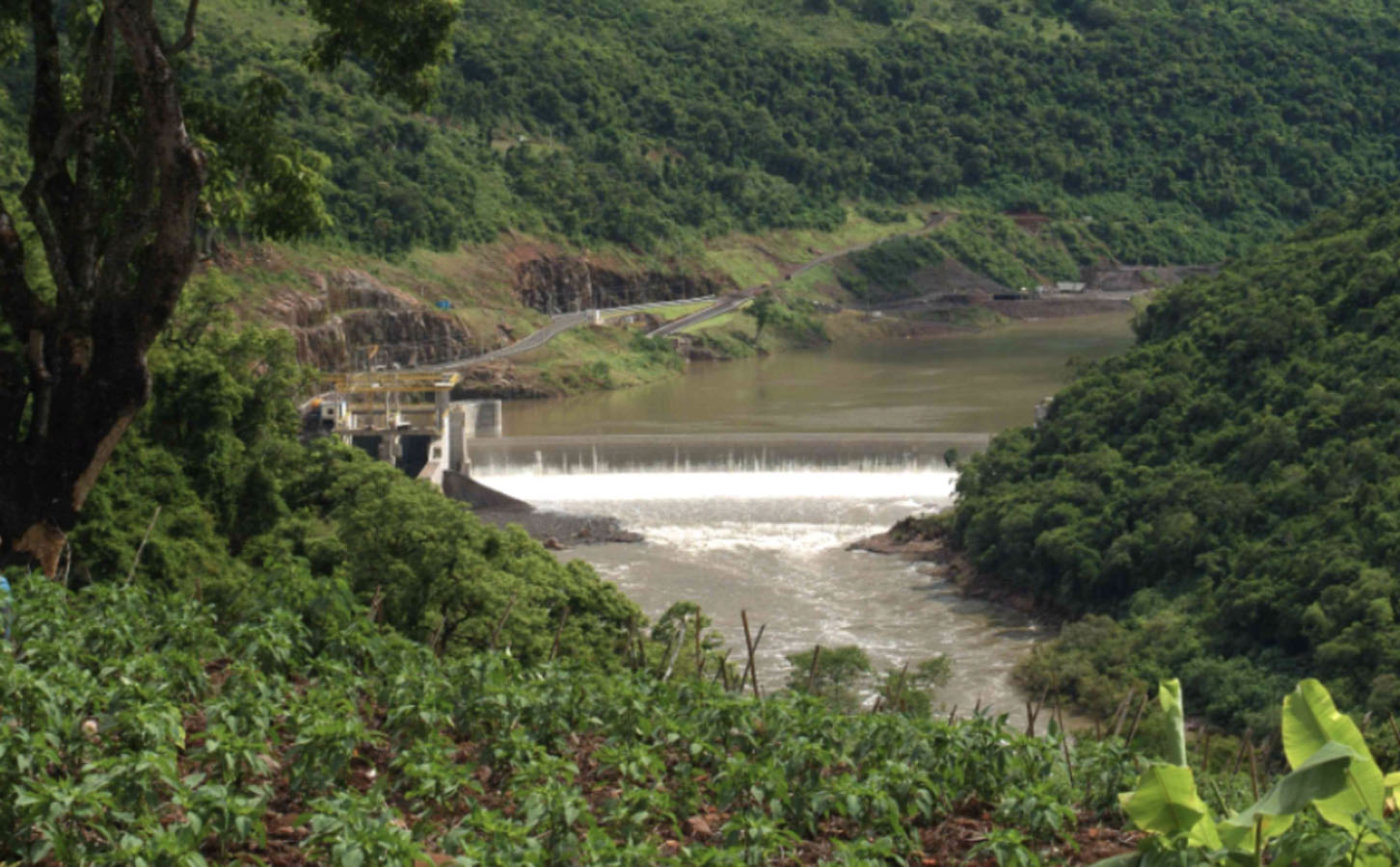

Moínho completed
Moínho completed

Particulars

Owner: Statkraft

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 1 m3x106

Height: 22 metres

Length: unknown

Volume of RCC: 9 m3x103

Total volume: 25 m3x103

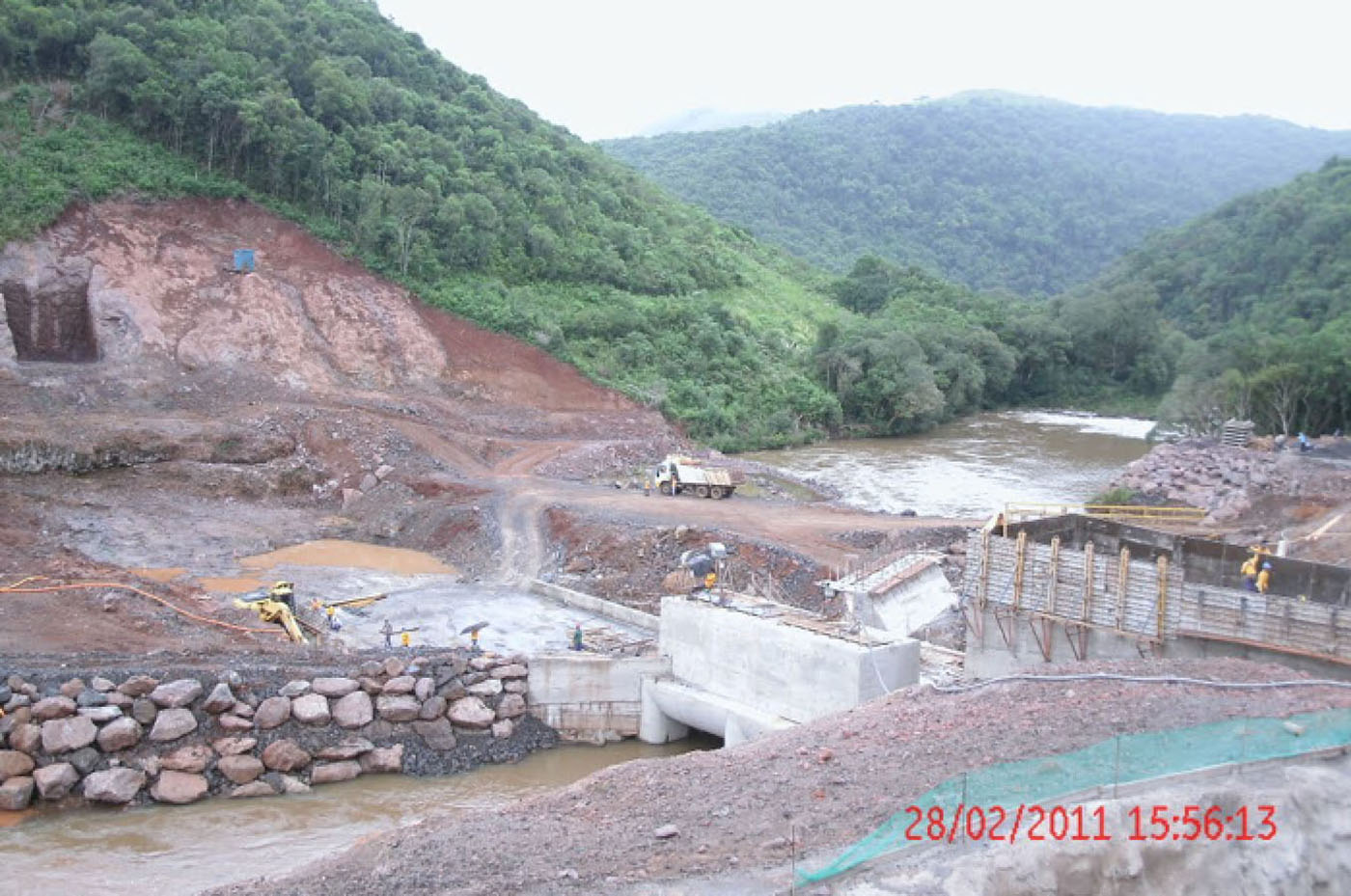

Construction Dates

Start of Project: /09 ( 2009)

Start of RCC: /10 ( 2010)

End of RCC: /11 ( 2011)

End of Project: /11 ( 2011)

Country: Brazil

River: Bernado Jose

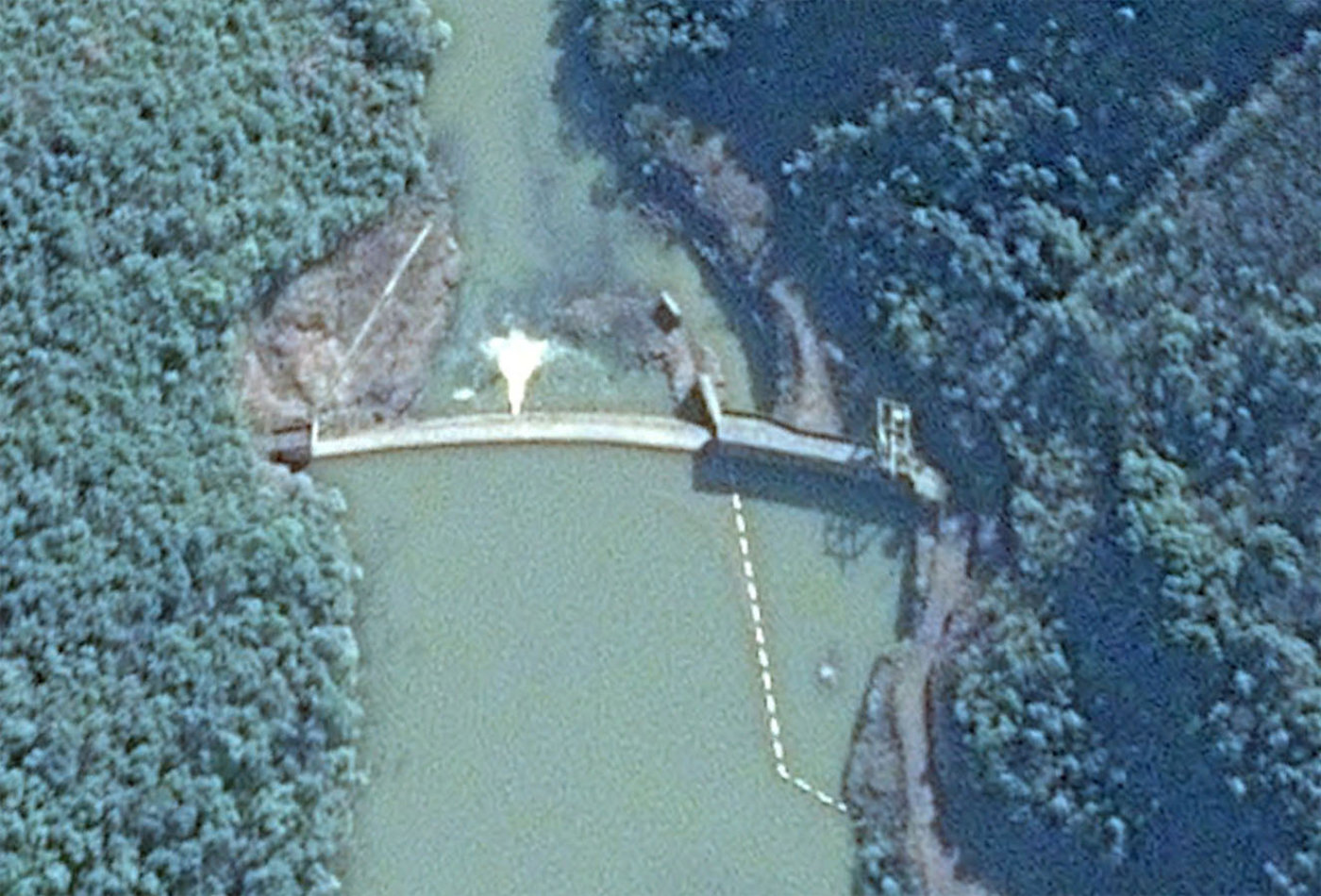

DMS Co-ordinates: 27˚46'20.25"S, 51˚20'1.73"W

DD Co-ordinates: -27.772291, -51.334217

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)
68
Pozzolan (kg/m3)Pozzolan Type
17Natural pozzolan (ASTM Class N)
