Naras

Download PDF data sheet

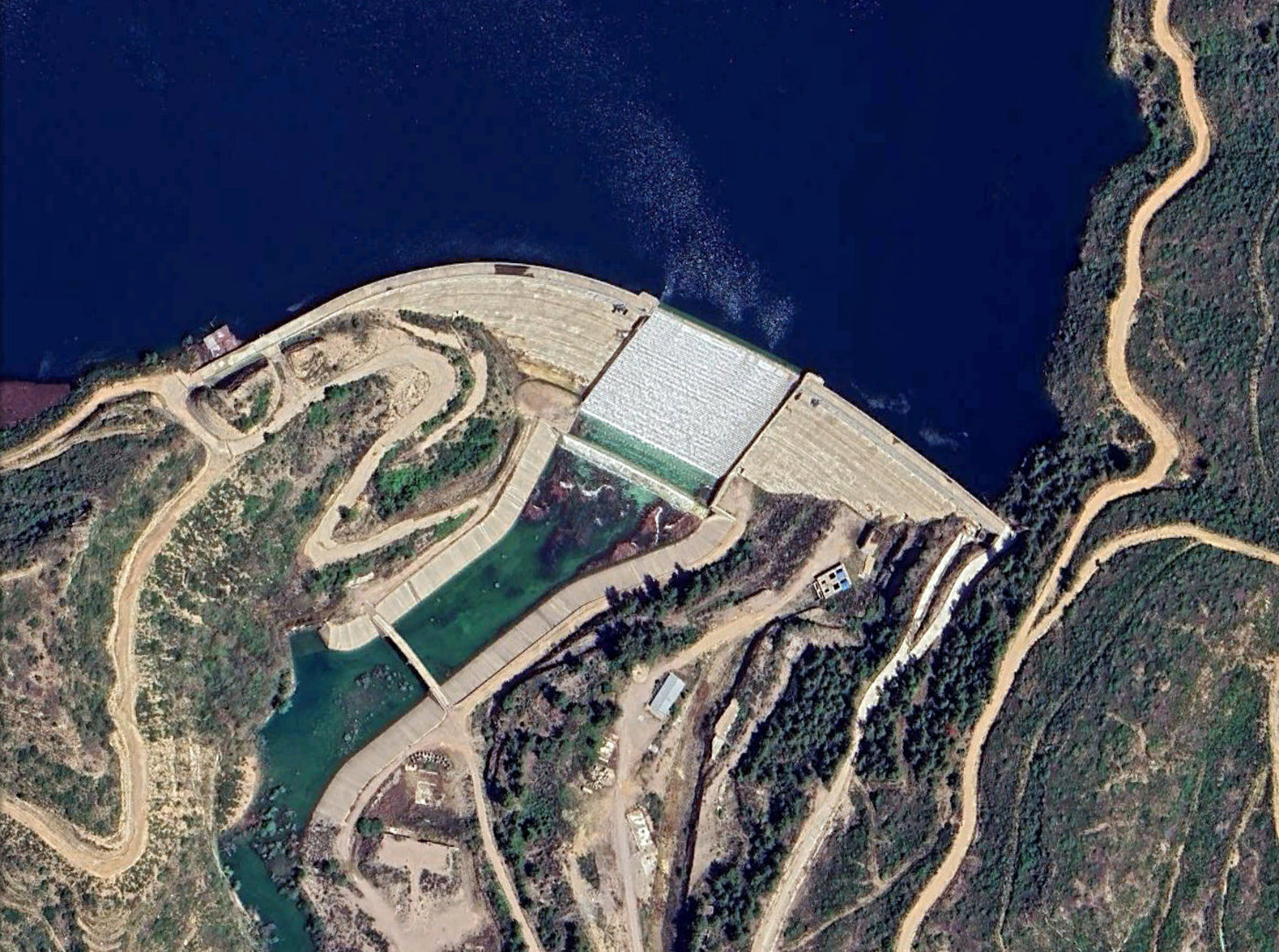

Naras completed

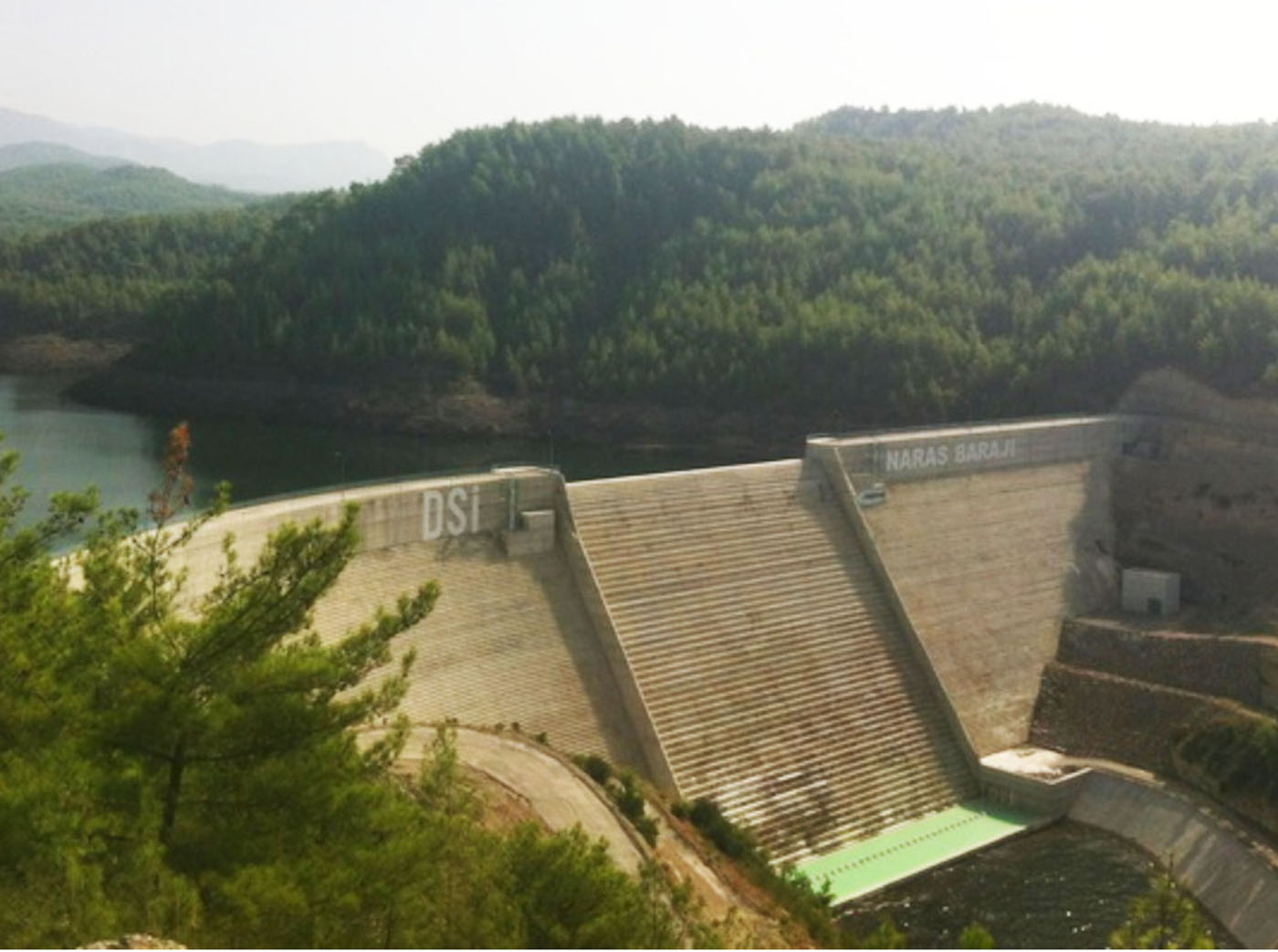

Naras completed

Particulars

Owner: DSI - State Hydraulic Works

Designer: Temelsu International Engineering Services Inc.

Contractor: NVS İnsaat Sanayi ve Ticaretİ Ltd. Şirketi

Statistics

Type: Gravity

Purpose(s): Flood Control / Irrigation

Reservoir capacity: 92 m3x106

Height: 78 metres

Length: 448 metres

Volume of RCC: 600 m3x103

Total volume: 677 m3x103

Construction Dates

Start of Project: 01/11 (January 2011)

Start of RCC: 12/12 (December 2012)

End of RCC: 01/14 (January 2014)

End of Project: 05/14 (May 2014)

Country: Turkey

River: Manavgat

DMS Co-ordinates: 36˚53'27.87"N, 31˚24'14.16"E

DD Co-ordinates: 36.891075, 31.403933

Facings

Upstream

SlopeType
0.15RCC against formwork

Downstream

SlopeType
0.80RCC against formwork  [stepped face]

Spillway

SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
110
Pozzolan (kg/m3)Pozzolan Type
90Natural pozzolan (ASTM Class N)
