Okshtuni

Download PDF data sheet

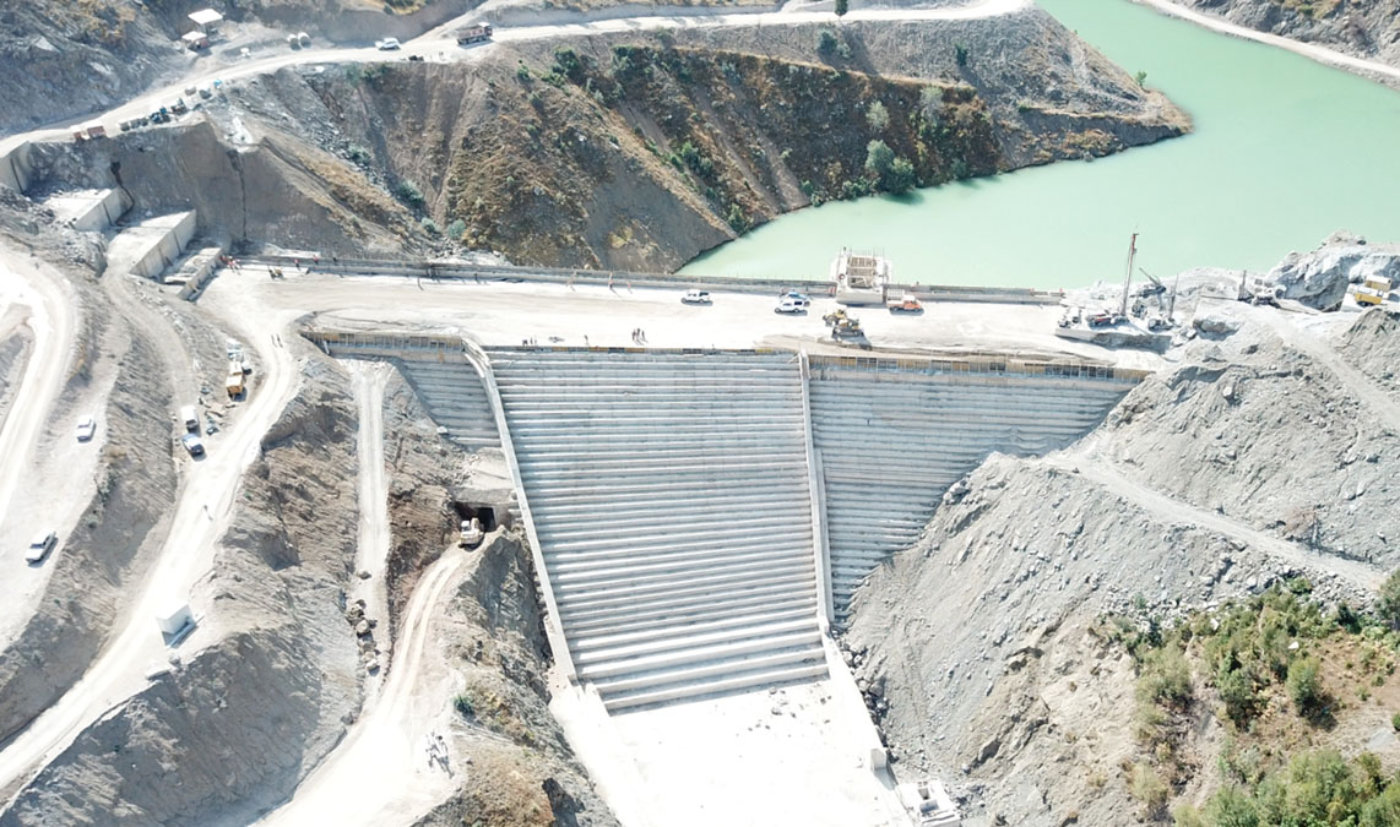

Okshtuni under construction
Okshtuni under construction

Particulars

Owner: Diteko Sh.p.k

Designer: E.B.S. Sh.p.k

Contractor: Gjoka Konstruksion Sh.a

Statistics

Type: Gravity

Purpose(s): Flood Control / Hydropower

Reservoir capacity: 7 m3x106

Height: 65 metres

Length: 253 metres

Volume of RCC: 141 m3x103

Total volume: 194 m3x103

Construction Dates

Start of Project: 08/15 (August 2015)

Start of RCC: 03/17 (March 2017)

End of RCC: 10/17 (October 2017)

End of Project: 02/18 (February 2018)

Country: Albania

River: Okshtuni

DMS Co-ordinates: 41˚23'52.17"N, 20˚22'55.85"E

DD Co-ordinates: 41.397823, 20.382181

Facings

Upstream

SlopeType
VerticalReinforced conventional concrete cast after RCC placement
0.15

Downstream

SlopeType
0.90Reinforced conventional concrete cast after RCC placement  [stepped face]

Spillway

SlopeType
0.90Reinforced conventional concrete cast after RCC placement  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
115
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -
