Olivenhain

Download PDF data sheet

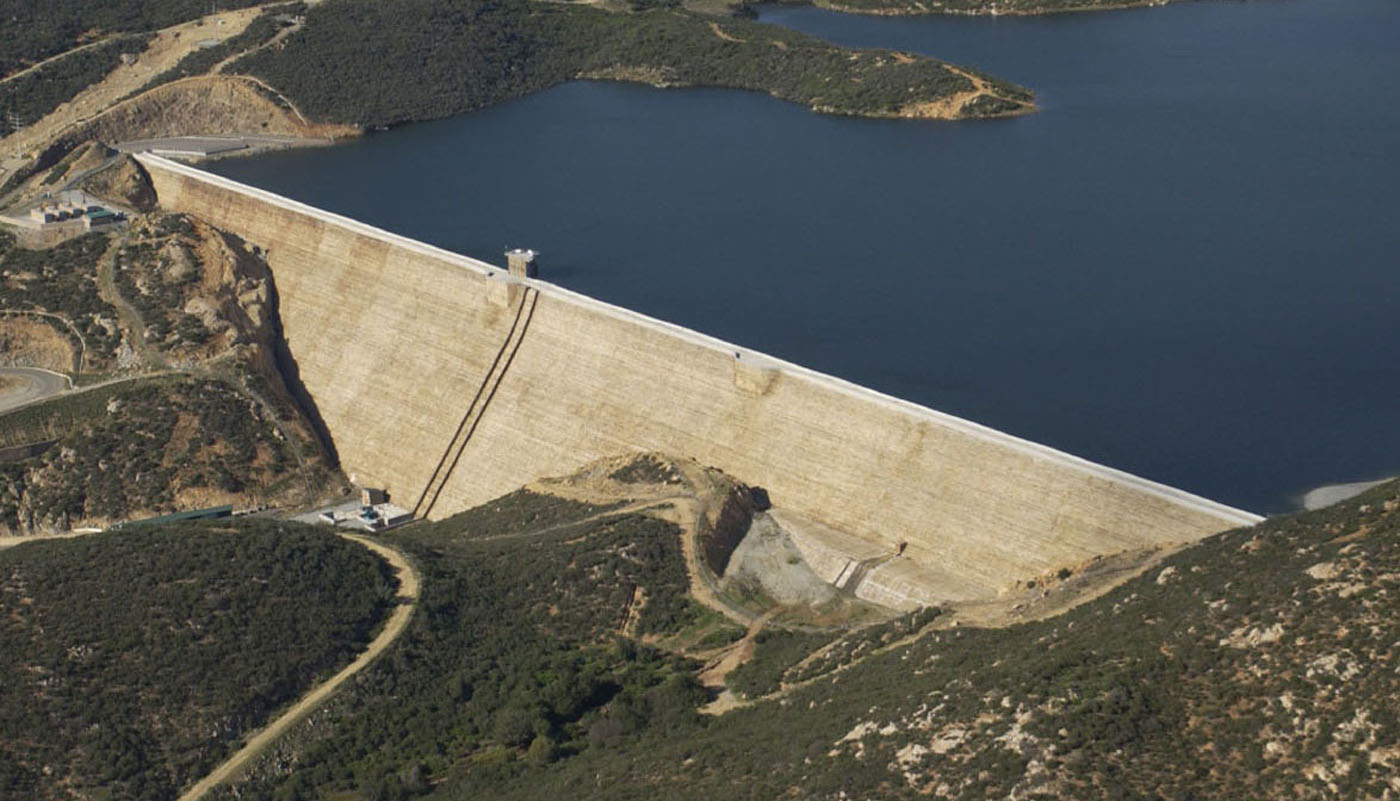

Olivenhain completed
Olivenhain completed

Particulars

Owner: San Diego County Water Authority

Designer: Parsons-Harza JV.

Contractor: Kiewit Pacific Co. Ltd.

Statistics

Type: Gravity

Purpose(s): Water Supply

Reservoir capacity: 30 m3x106

Height: 97 metres

Length: 788 metres

Volume of RCC: 1070 m3x103

Total volume: 1140 m3x103

Construction Dates

Start of Project: 06/01 (June 2001)

Start of RCC: 02/02 (February 2002)

End of RCC: 10/02 (October 2002)

End of Project: 07/03 (July 2003)

Country: USA

River: Escondido Creek

DMS Co-ordinates: 33˚04'13.21"N, 117˚08'17.51"W

DD Co-ordinates: 33.070335, -117.138199

Facings

Upstream

SlopeType
VerticalRCC against formwork with external geomembrane (GEVR/GE-RCC)

Downstream

SlopeType
0.80RCC against formwork  [stepped face]

Spillway

SlopeType
0.80Traditional concrete against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
74
Pozzolan (kg/m3)Pozzolan Type
121Low-lime flyash (ASTM Class F)
