Plano Alto

Download PDF data sheet

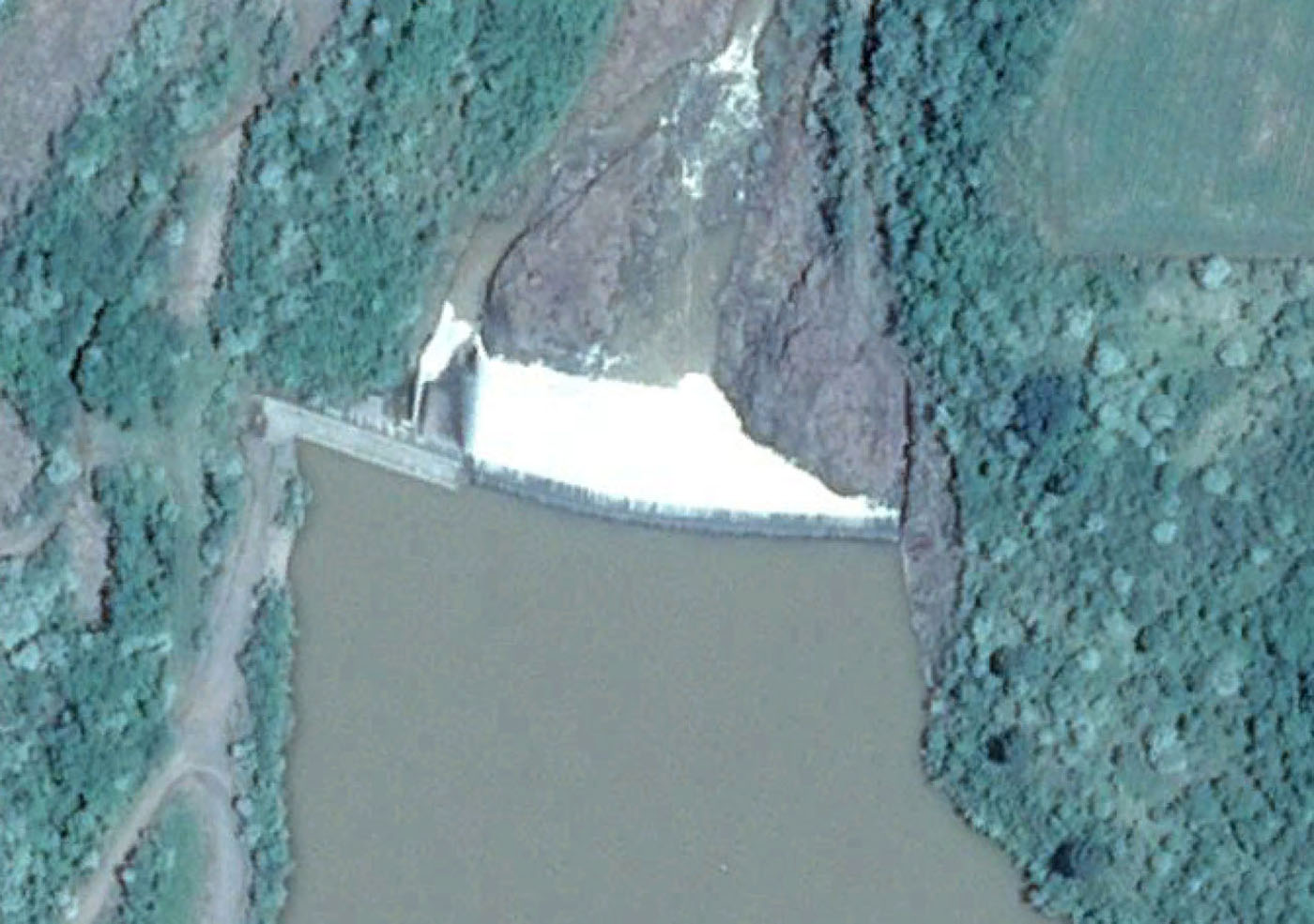

Plano Alto on Google Earth
Plano Alto on Google Earth

Particulars

Owner: SPE Plano Alto Energia S/A

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 1 m3x106

Height: 37 metres

Length: 172 metres

Volume of RCC: 42 m3x103

Total volume: 78 m3x103

Construction Dates

Start of Project: /06 ( 2006)

Start of RCC: /07 ( 2007)

End of RCC: /07 ( 2007)

End of Project: /08 ( 2008)

Country: Brazil

River: unknown

DMS Co-ordinates: 26˚57'28.86"S, 52˚20'25.46"W

DD Co-ordinates: -26.958017, -52.340405

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)
72
Pozzolan (kg/m3)Pozzolan Type
19
