Shannipo

Download PDF data sheet

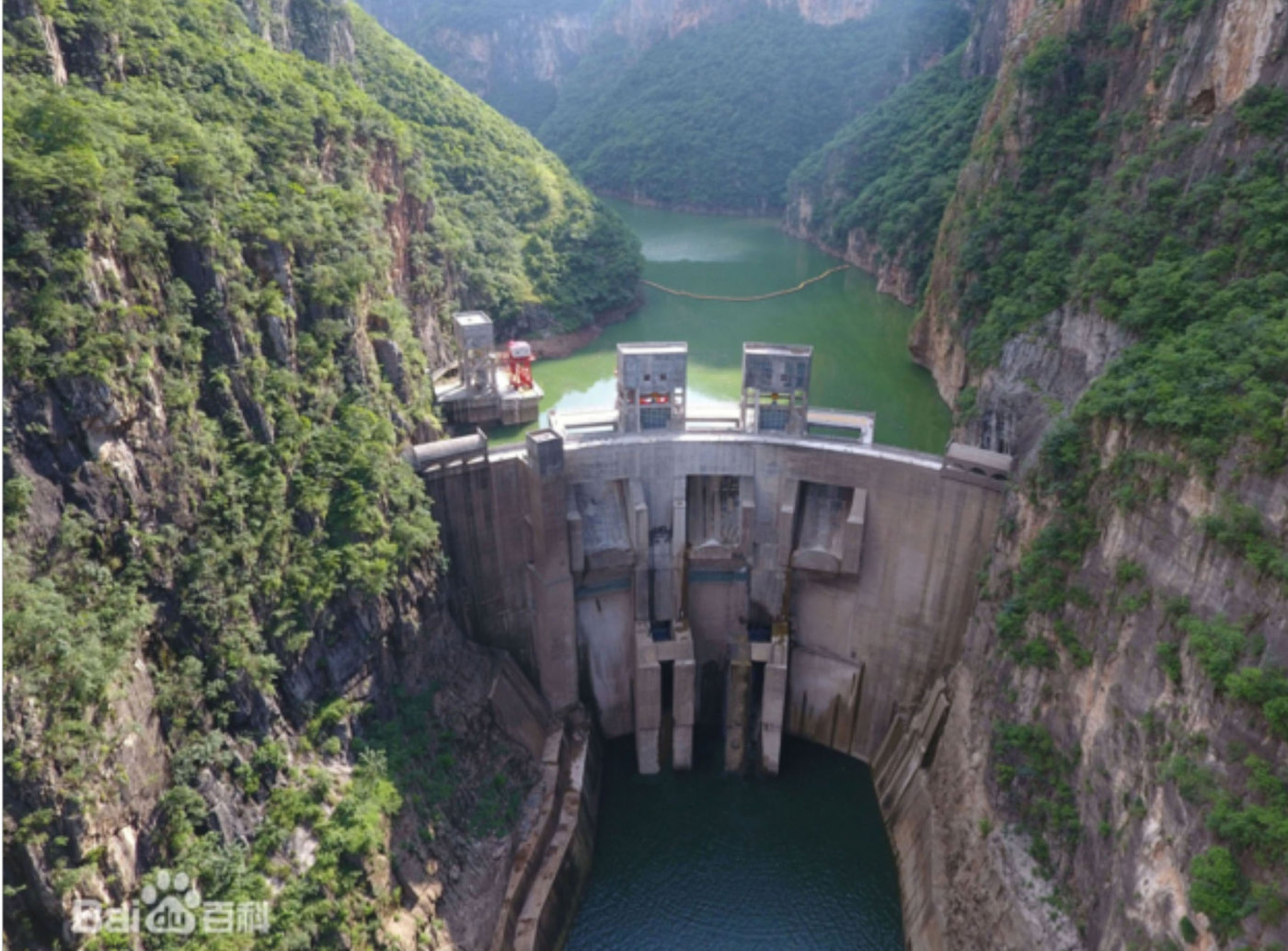

Shannipo completed
Shannipo completed

Particulars

Owner: Guizhou Qianyuan Power Co. Ltd.

Designer: Guiyang Hydropower Investigation, Design and Research Institute, CHECC

Contractor: unknown

Statistics

Type: Thin Arch

Purpose(s): Hydropower

Reservoir capacity: 85 m3x106

Height: 119 metres

Length: 205 metres

Volume of RCC: 199 m3x103

Total volume: 267 m3x103

Construction Dates

Start of Project: /09 ( 2009)

Start of RCC: /11 ( 2011)

End of RCC: /14 ( 2014)

End of Project: /15 ( 2015)

Country: China

River: Beipan

DMS Co-ordinates: unknown

DD Co-ordinates: unknown

Facings

Upstream

SlopeType
curveRCC against formwork (GEVR/GE-RCC)

Downstream

SlopeType
curveRCC against formwork

Spillway

SlopeType
ogeeRCC against formwork

Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type
