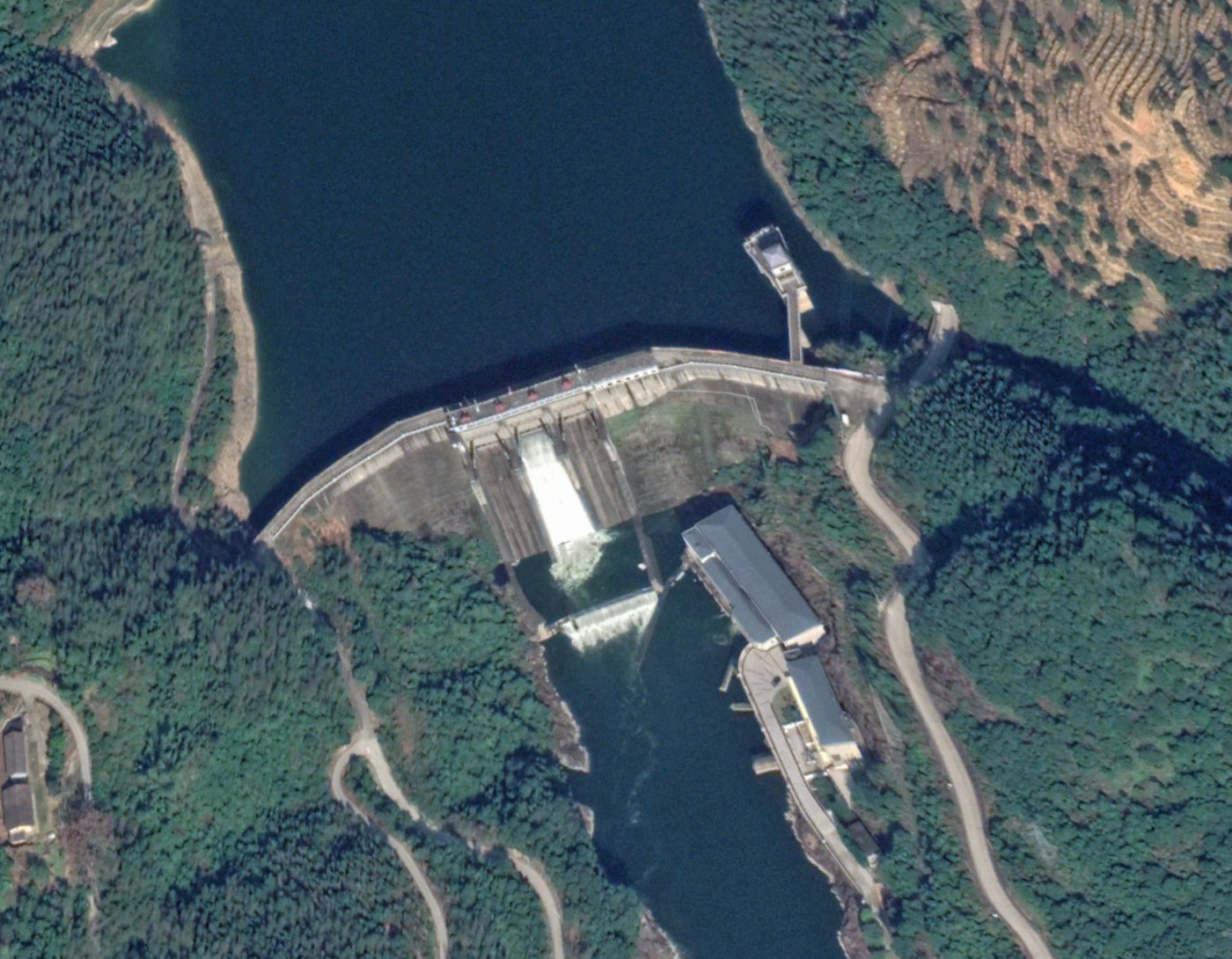

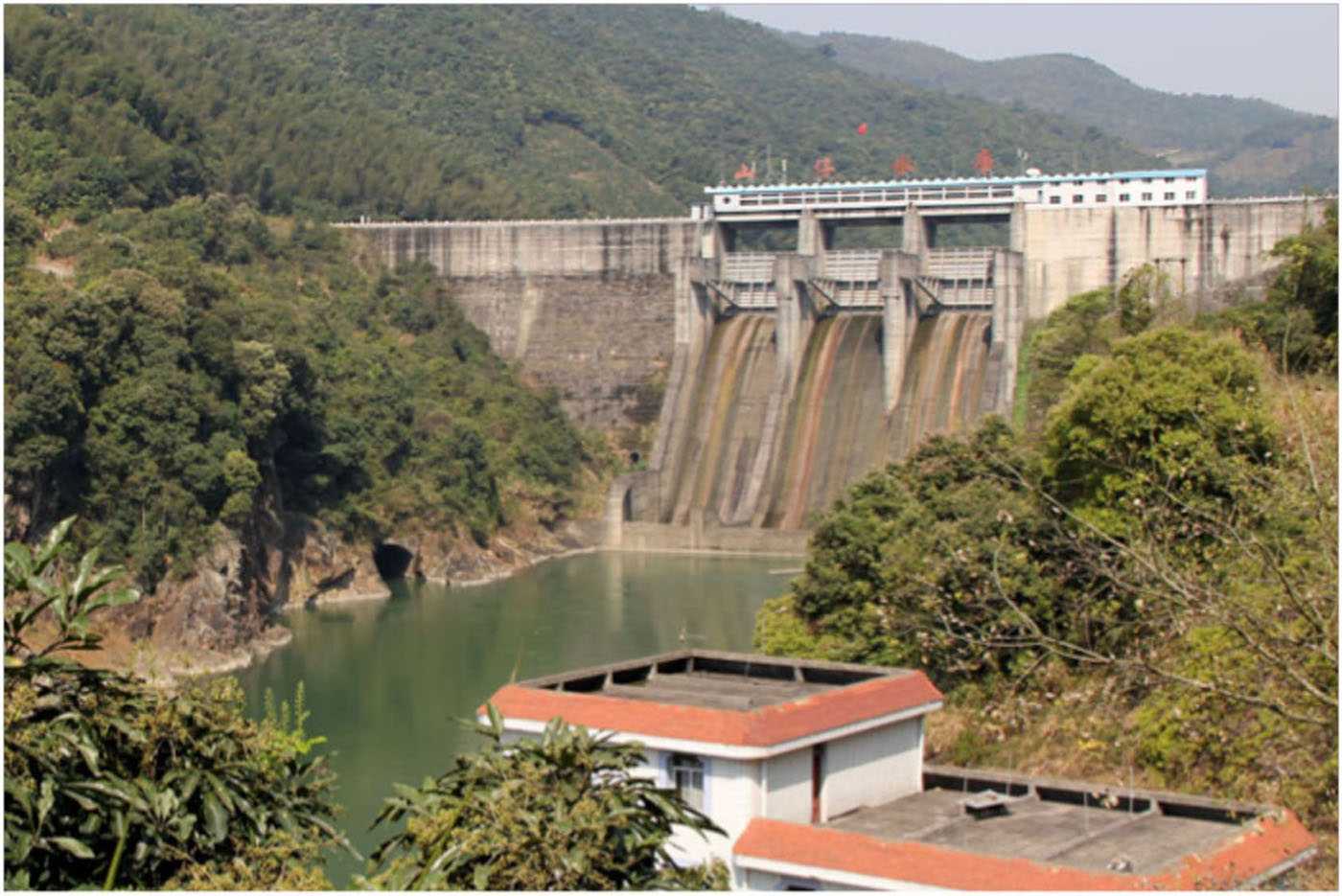

Shanzi

Download PDF data sheet
Shanzi completed
Shanzi completed

Particulars

Owner: Lianjiang Water Conservancy Bureau

Designer: Fujian Institute of Investigation and Design of Water Conservancy and Hydropower

Contractor: 14th Construction Bureau, MOE & MWR

Statistics

Type: Gravity

Purpose(s): Flood Control / Hydropower / Irrigation / Water Supply

Reservoir capacity: 172 m3x106

Height: 66 metres

Length: 274 metres

Volume of RCC: 180 m3x103

Total volume: 272 m3x103

Construction Dates

Start of Project: 08/92 (August 1992)

Start of RCC: 11/93 (November 1993)

End of RCC: 05/94 (May 1994)

End of Project: 06/95 (June 1995)

Country: China

River: Aojiang

DMS Co-ordinates: unknown

DD Co-ordinates: unknown

Facings

Upstream

SlopeType
VerticalTraditional concrete against precast concrete panels

Downstream

SlopeType
0.80RCC against precast concrete blocks

Spillway

SlopeType
0.77Reinforced concrete cast against precast units or slip-formed facing elements

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
65
55
Pozzolan (kg/m3)Pozzolan Type
125Low-lime flyash (ASTM Class F)
95
