Tirgu Jiu

Download PDF data sheet

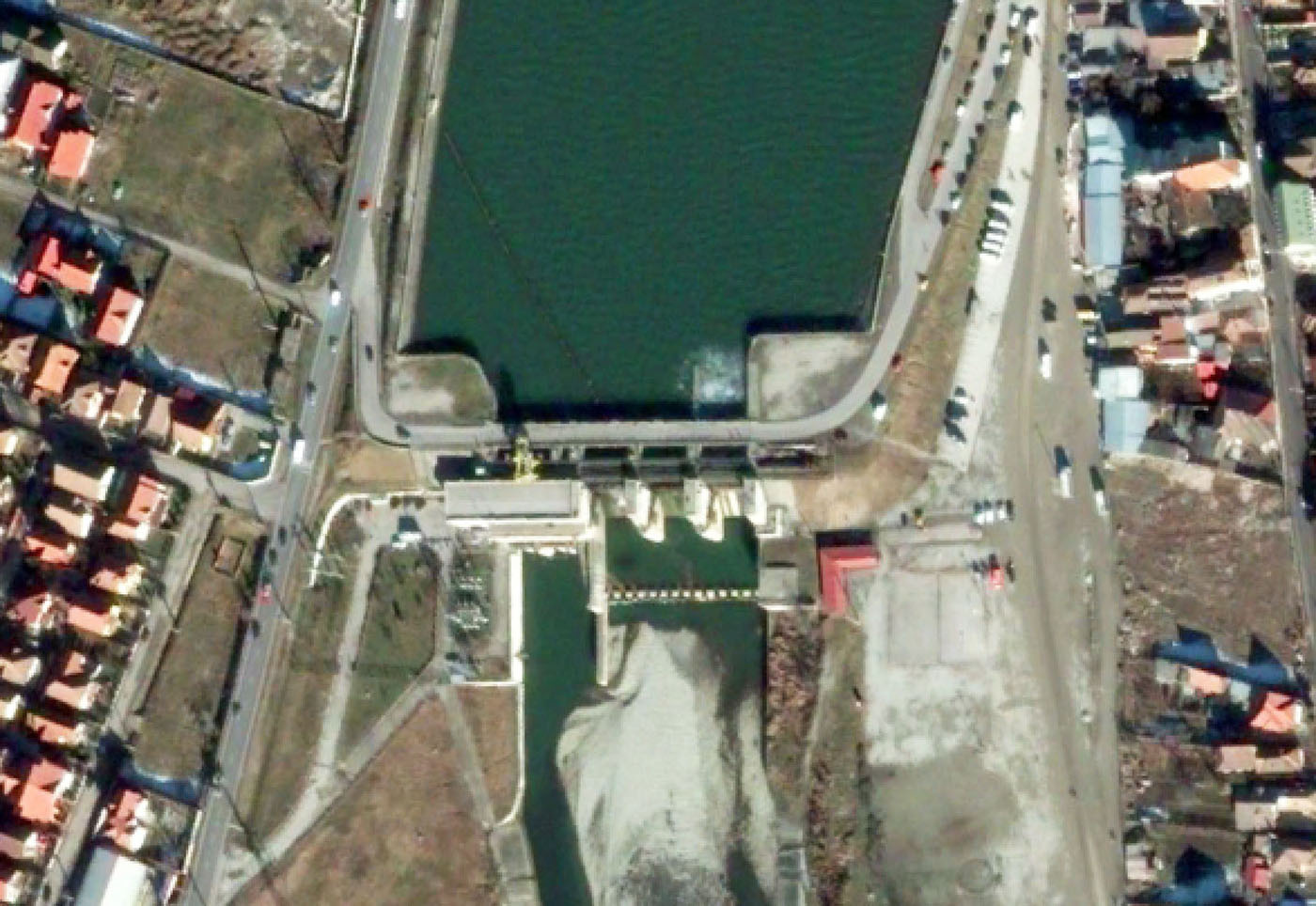

Tirgu Jiu on Google Earth
Tirgu Jiu on Google Earth

Particulars

Owner: Romanian Electricity Authority (RENAL) - Tirgu Jiu Branch

Designer: Institutul de Studii si Proiectari Hidroenergetice (ISPH) Bucuresti

Contractor: SC Hidroconstructia SA - Jiu Branch

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 2 m3x106

Height: 24 metres

Length: 61 metres

Volume of RCC: 13 m3x103

Total volume: 26 m3x103

Construction Dates

Start of Project: 08/86 (August 1986)

Start of RCC: 06/88 (June 1988)

End of RCC: 05/89 (May 1989)

End of Project: 12/93 (December 1993)

Country: Romania

River: Jiu

DMS Co-ordinates: 45˚1'57.82"N, 25˚15'51.35"E

DD Co-ordinates: 45.032726, 25.264263

Facings

Upstream

SlopeType
 Reinforced conventional concrete cast after RCC placement

Downstream

SlopeType
 Reinforced conventional concrete cast after RCC placement

Spillway

SlopeType
ogeeReinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300900

Cementitious material

Cement (kg/m3)
125
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -
