Ulus Eldeş
Download PDF data sheet

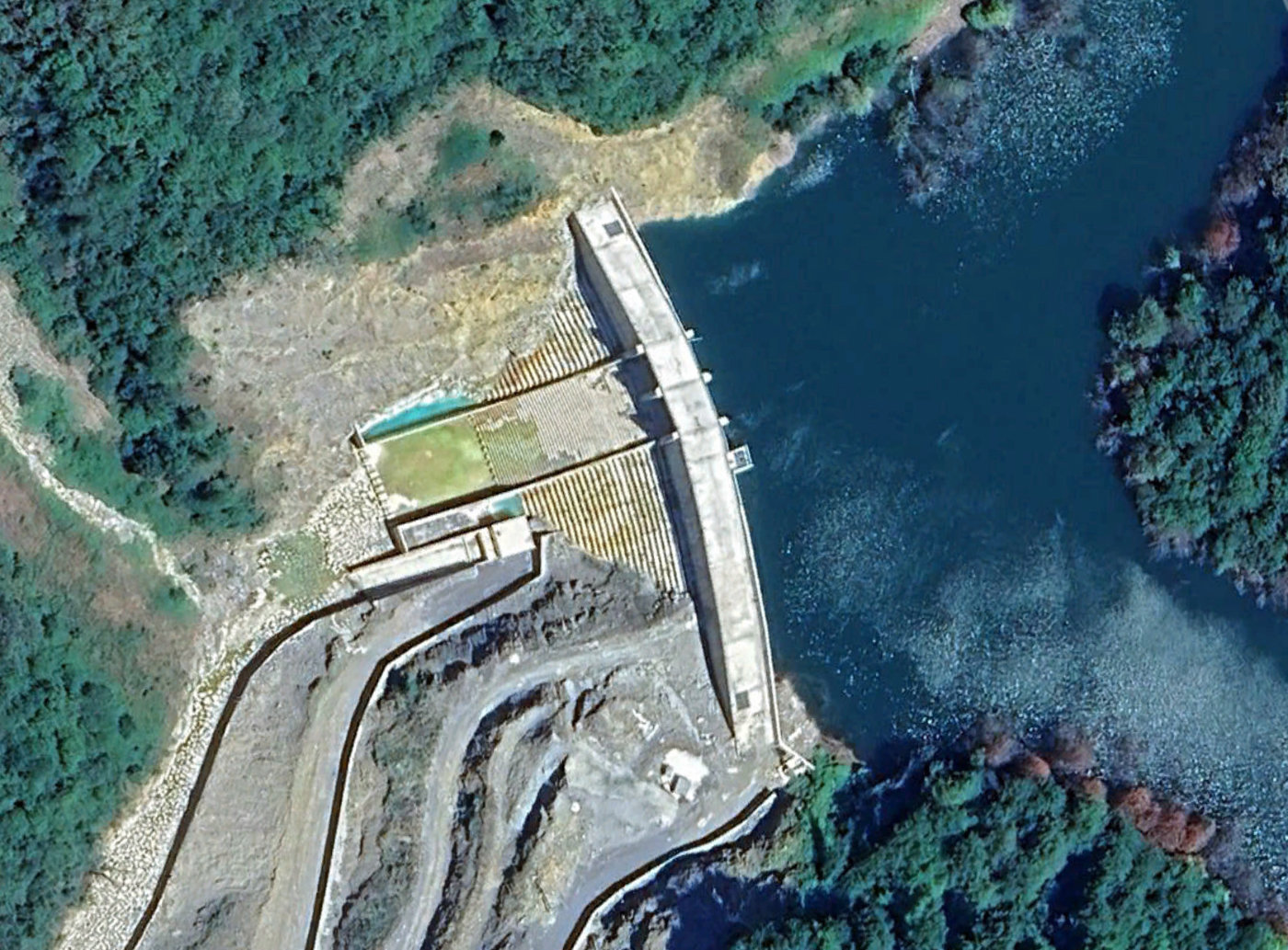

Ulus Eldeş on Google Earth
Particulars
Owner: DSI - State Hydraulic Works
Designer: unknown
Contractor: Magzen Enerji Yatirim İnsaat Anonim Şti.
Statistics
Type: Gravity
Purpose(s): Irrigation / Water Supply
Reservoir capacity: 1 m3x106
Height: 46 metres
Length: 125 metres
Volume of RCC: 38 m3x103
Total volume: unknown
Construction Dates
Start of Project: —/16 (— 2016)
Start of RCC: —/20 (— 2020)
End of RCC: —/22 (— 2022)
End of Project: —/23 (— 2023)
Country: Turkey
River: Karakuz Creek
DMS Co-ordinates: 41˚34'49.55"N, 32˚42'56.36"E
DD Co-ordinates: 41.580433, 32.715977
Facings
Upstream
| Slope | Type |
|---|---|
| Vertical | Traditional concrete against formwork |
| 0.10 | Traditional concrete against formwork |
Downstream
| Slope | Type |
|---|---|
| 0.80 | Traditional concrete against formwork [stepped face] |
Spillway
| Slope | Type |
|---|---|
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 300 |
Cementitious material
| Cement (kg/m3) |
|---|
| 83 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 68 | Low-lime flyash (ASTM Class F) |
