Binh Dien

Download PDF data sheet

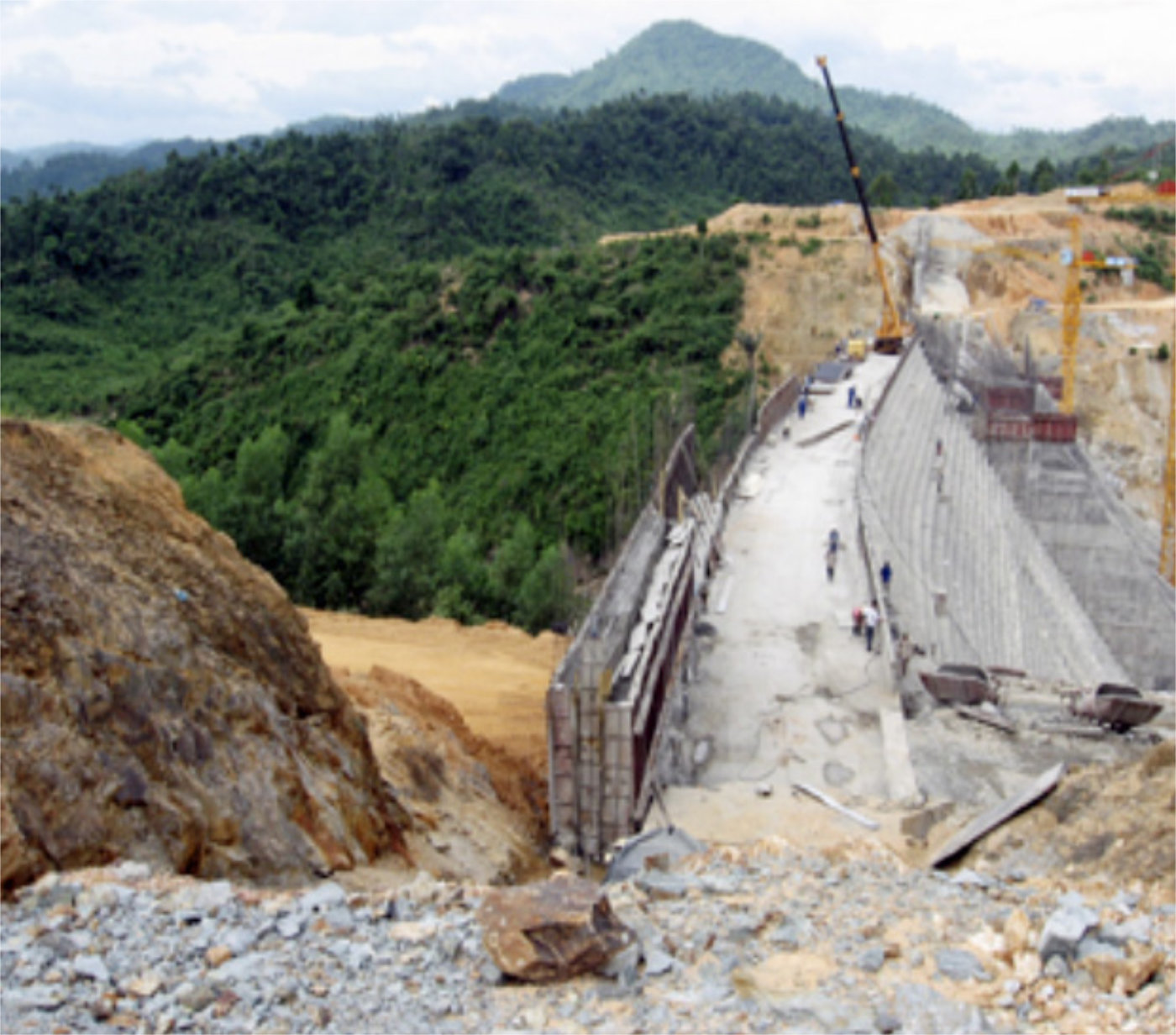

Binh Dien completed
Binh Dien completed

Particulars

Owner: Binh Dien Electricity Joint Stock Company

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 424 m3x106

Height: 55 metres

Length: 571 metres

Volume of RCC: 189 m3x103

Total volume: 423 m3x103

Construction Dates

Start of Project: /06 ( 2006)

Start of RCC: /07 ( 2007)

End of RCC: /08 ( 2008)

End of Project: /09 ( 2009)

Country: Vietnam

River: Huu Trach

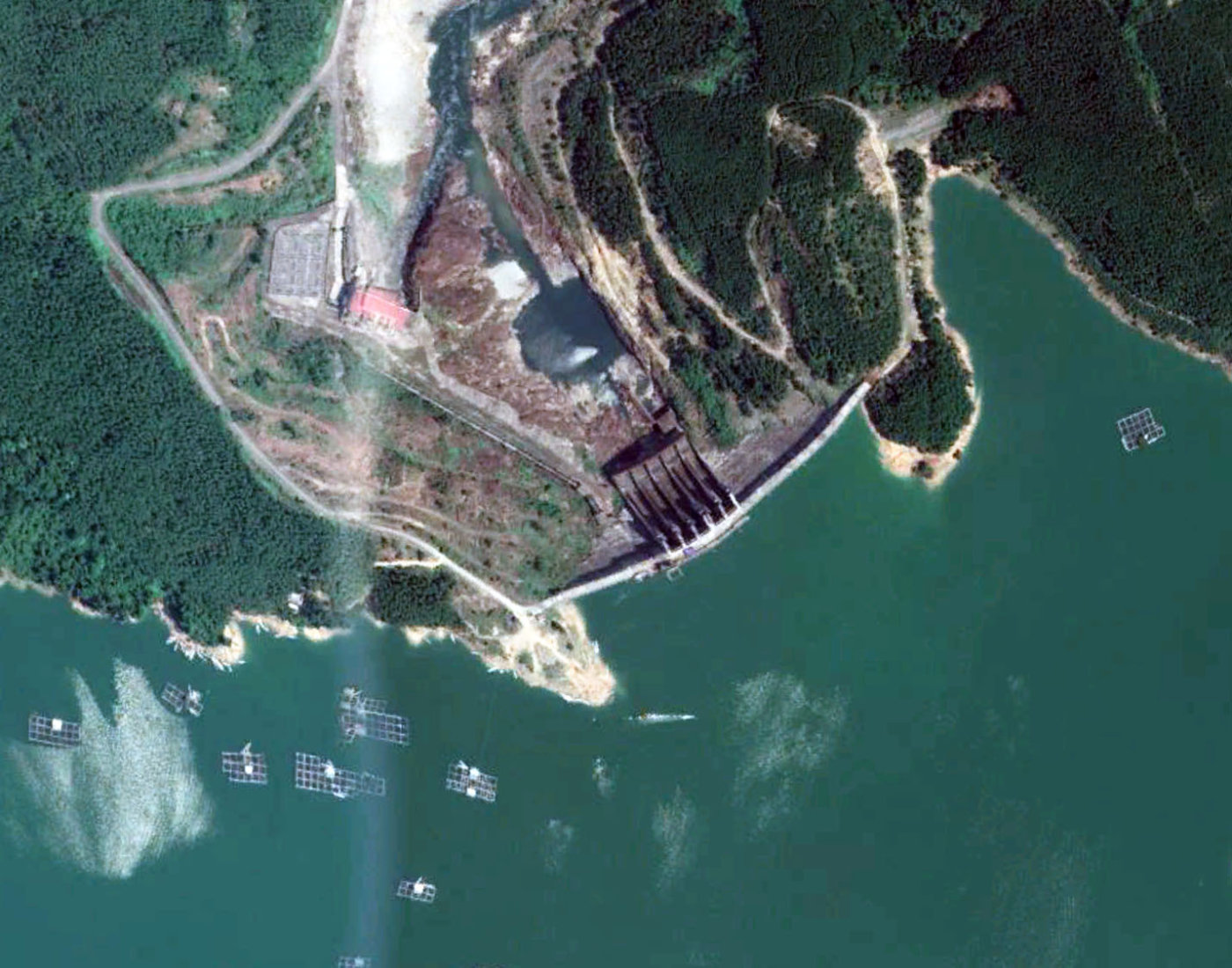

DMS Co-ordinates: 16˚19'1.77"N, 107˚30'10.24"E

DD Co-ordinates: 16.317158, 107.502846

Facings

Upstream

SlopeType


Downstream

SlopeType

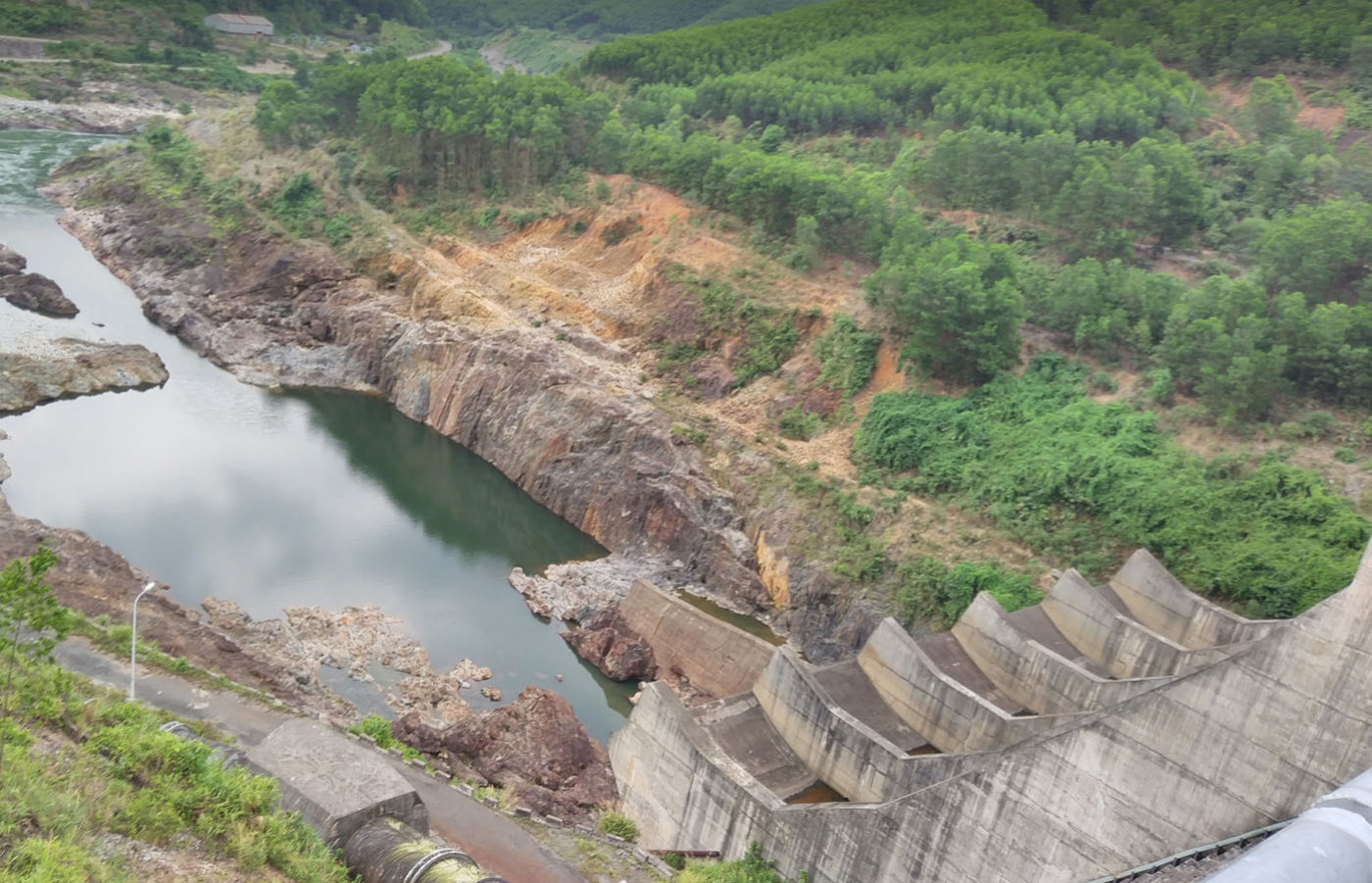

Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
70
Pozzolan (kg/m3)Pozzolan Type
105Low-lime flyash (ASTM Class F)
