Cheshmeh Ashegh

Download PDF data sheet

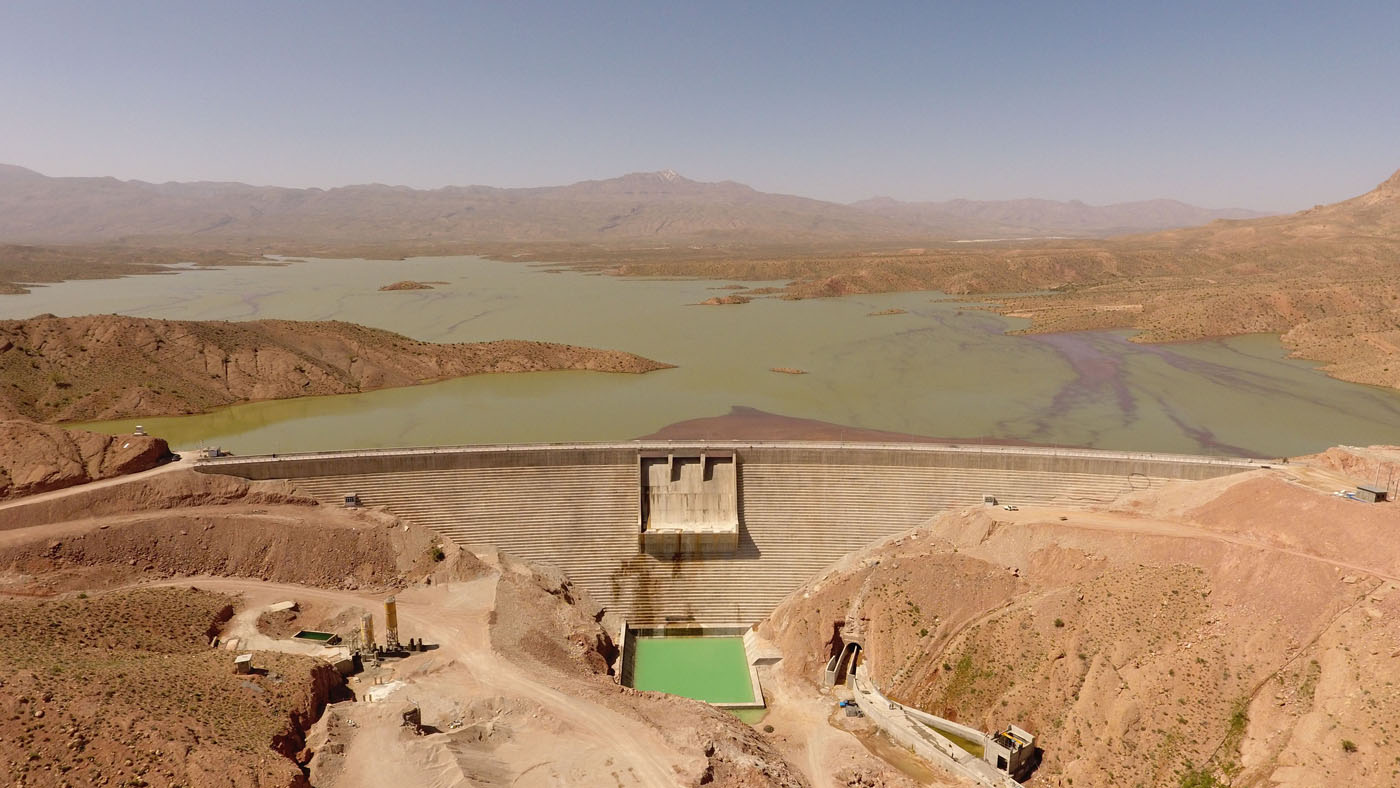

Cheshmeh Ashegh completed
Cheshmeh Ashegh completed

Particulars

Owner: Fars Regional Water Company

Designer: Ab Niroo Consulting Engineers

Contractor: Ev-Yol Construction Co.

Statistics

Type: Gravity

Purpose(s): Flood Control / Irrigation / Water Supply

Reservoir capacity: 69 m3x106

Height: 60 metres

Length: 375 metres

Volume of RCC: 130 m3x103

Total volume: 250 m3x103

Construction Dates

Start of Project: 06/10 (June 2010)

Start of RCC: 10/11 (October 2011)

End of RCC: 05/14 (May 2014)

End of Project: 03/17 (March 2017)

Country: Iran

River: Cheshmeh Ashegh

DMS Co-ordinates: 28˚52'51.88"N, 54˚53'3.81"E

DD Co-ordinates: 28.881079, 54.884392

Facings

Upstream

SlopeType
 Traditional concrete against formwork

Downstream

SlopeType
 Traditional concrete against formwork

Spillway

SlopeType
 Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300600  -
 900

Cementitious material

Cement (kg/m3)
120
Pozzolan (kg/m3)Pozzolan Type
80Natural pozzolan (ASTM Class N)
