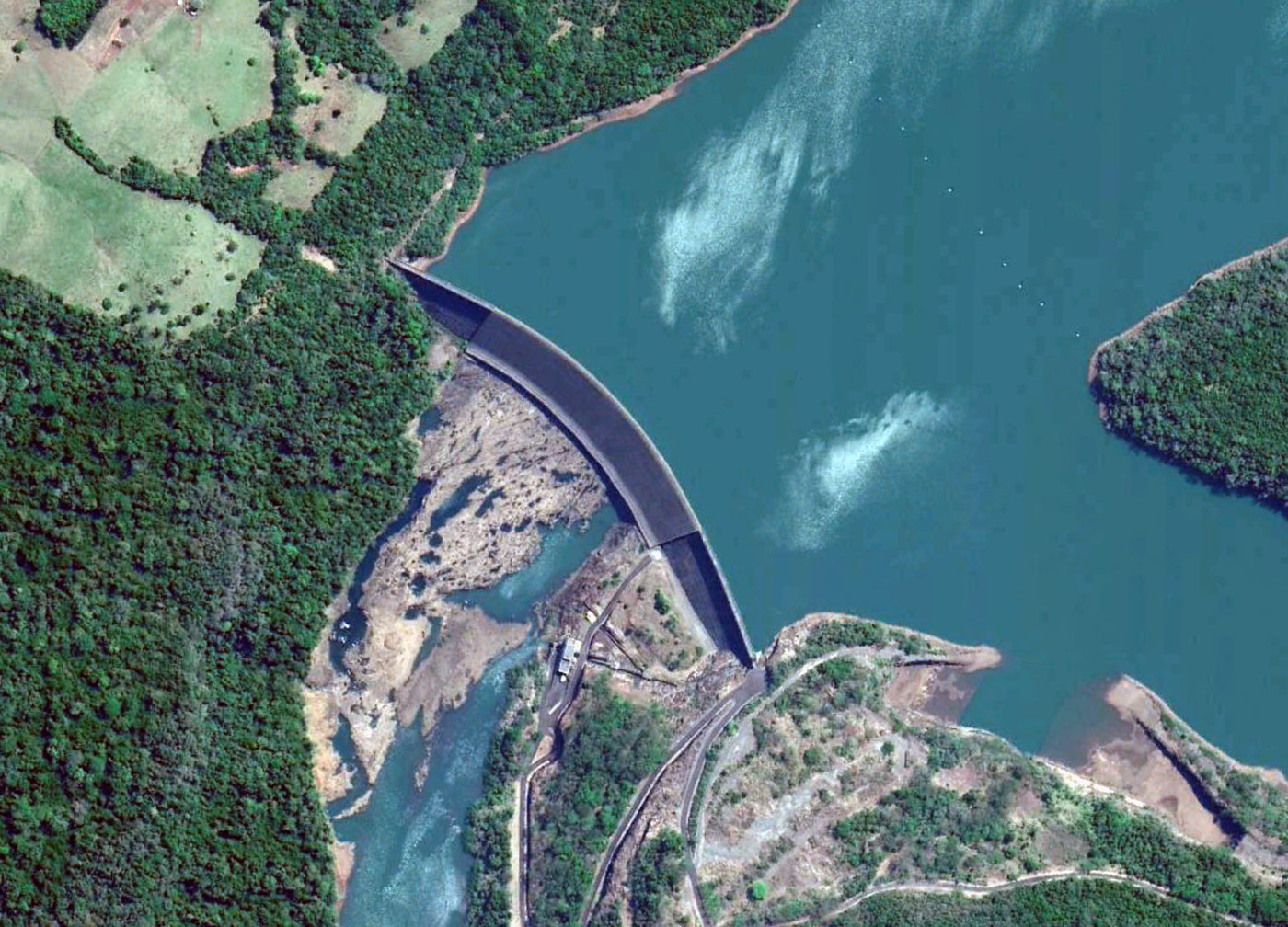

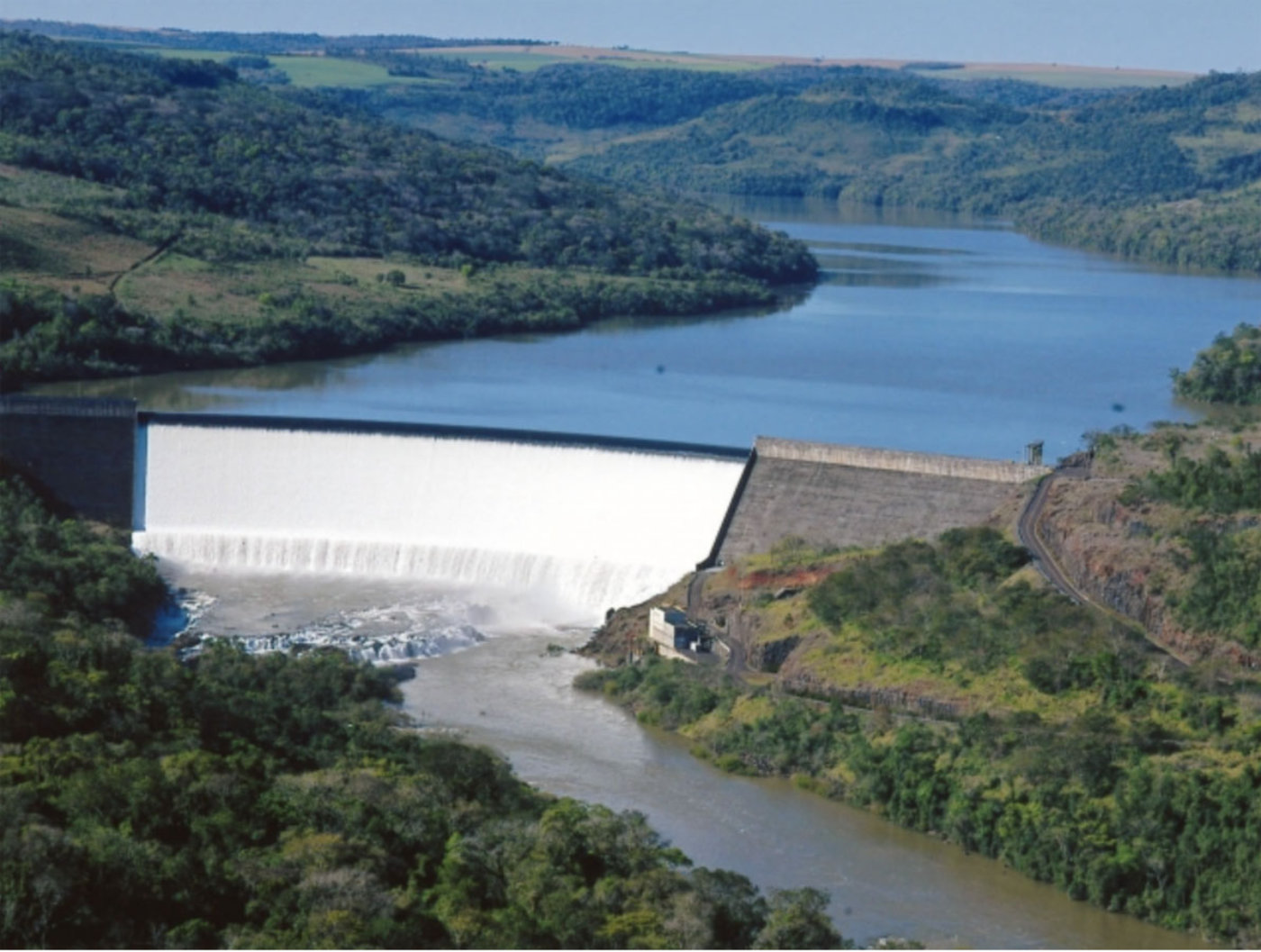

Derivação do Rio Jordão

Download PDF data sheet
Derivação do Rio Jordão completed
Derivação do Rio Jordão completed

Particulars

Owner: Copel Geração e Transmissão S.A.

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 110 m3x106

Height: 66 metres

Length: unknown

Volume of RCC: unknown

Total volume: unknown

Construction Dates

Start of Project: 05/94 (May 1994)

Start of RCC: /95 ( 1995)

End of RCC: /96 ( 1996)

End of Project: 12/97 (December 1997)

Country: Brazil

River: Jordão

DMS Co-ordinates: 25˚45'26.81"S, 52˚05'13.08"W

DD Co-ordinates: -25.757446, -52.086967

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type
