Dong Nai 3

Download PDF data sheet

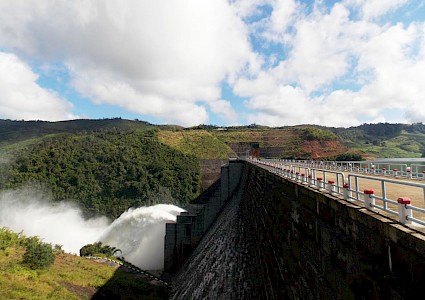

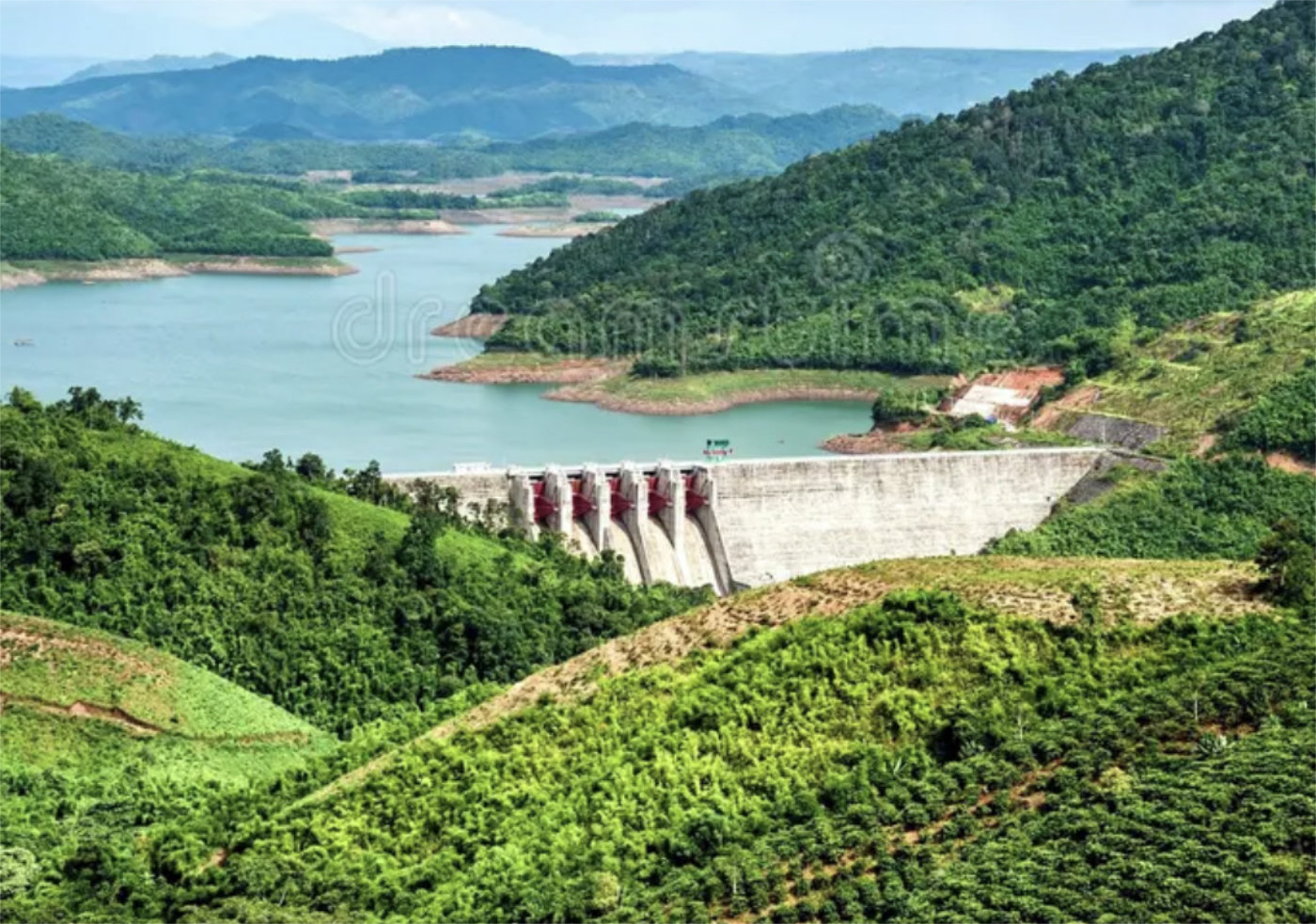

Dong Nai 3 completed
Dong Nai 3 completed

Particulars

Owner: EVN (Electrictie de Vietnam)

Designer: PECC2 (Power Engineering Consulting Company Nº2)

Contractor: GCC4

Statistics

Type: Gravity

Purpose(s): Flood Control / Hydropower

Reservoir capacity: 1690 m3x106

Height: 108 metres

Length: 594 metres

Volume of RCC: 1138 m3x103

Total volume: 1235 m3x103

Construction Dates

Start of Project: 12/04 (December 2004)

Start of RCC: 05/08 (May 2008)

End of RCC: 12/10 (December 2010)

End of Project: 10/11 (October 2011)

Country: Vietnam

River: Dong Nai

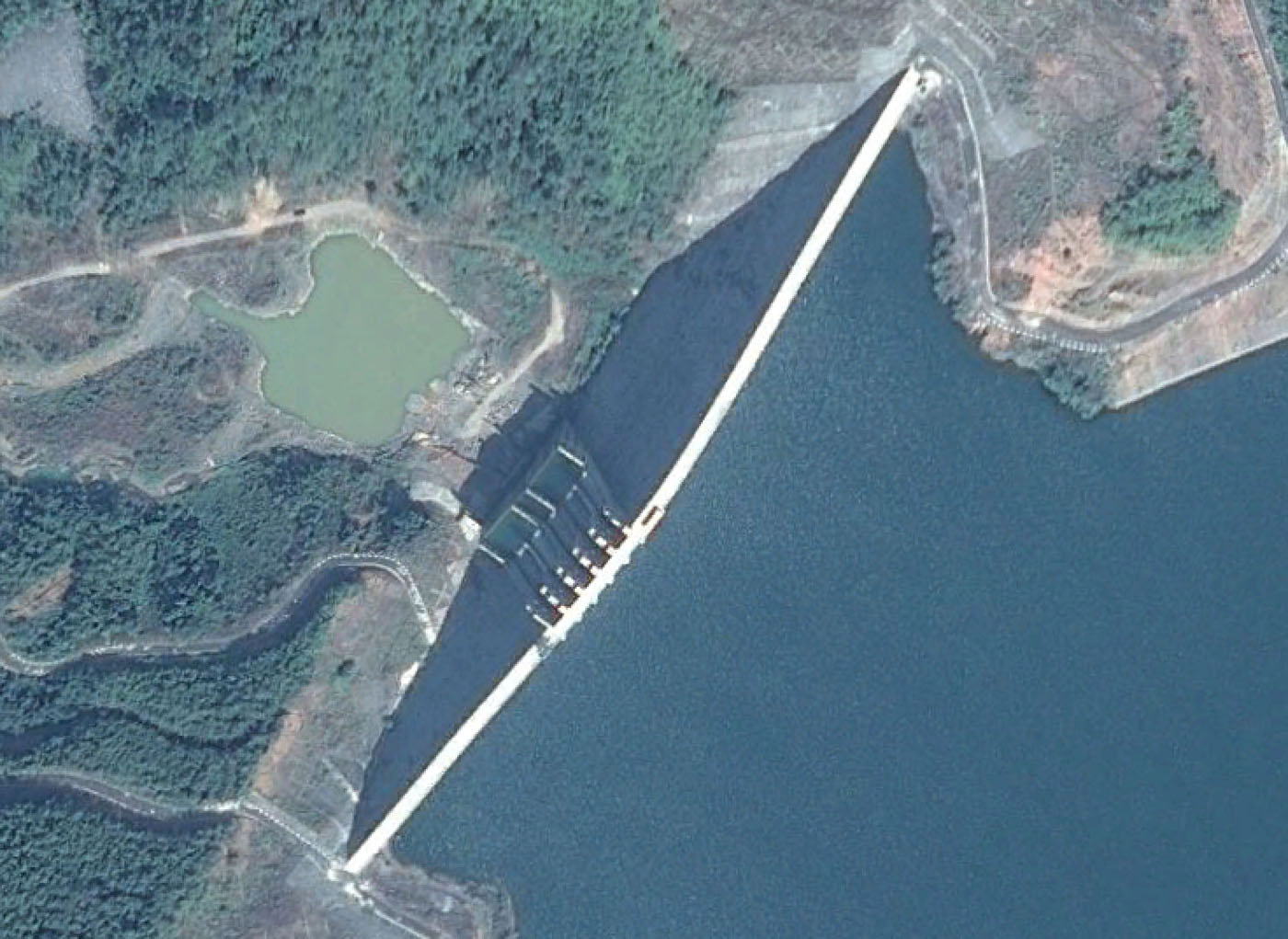

DMS Co-ordinates: 11˚52'20.06"N, 107˚53'19.23"E

DD Co-ordinates: 11.872239, 107.888672

Facings

Upstream

SlopeType
VerticalTraditional concrete against formwork

Downstream

SlopeType
0.75Traditional concrete against formwork  [stepped face]

Spillway

SlopeType
0.75Traditional concrete against formwork

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
75
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -
