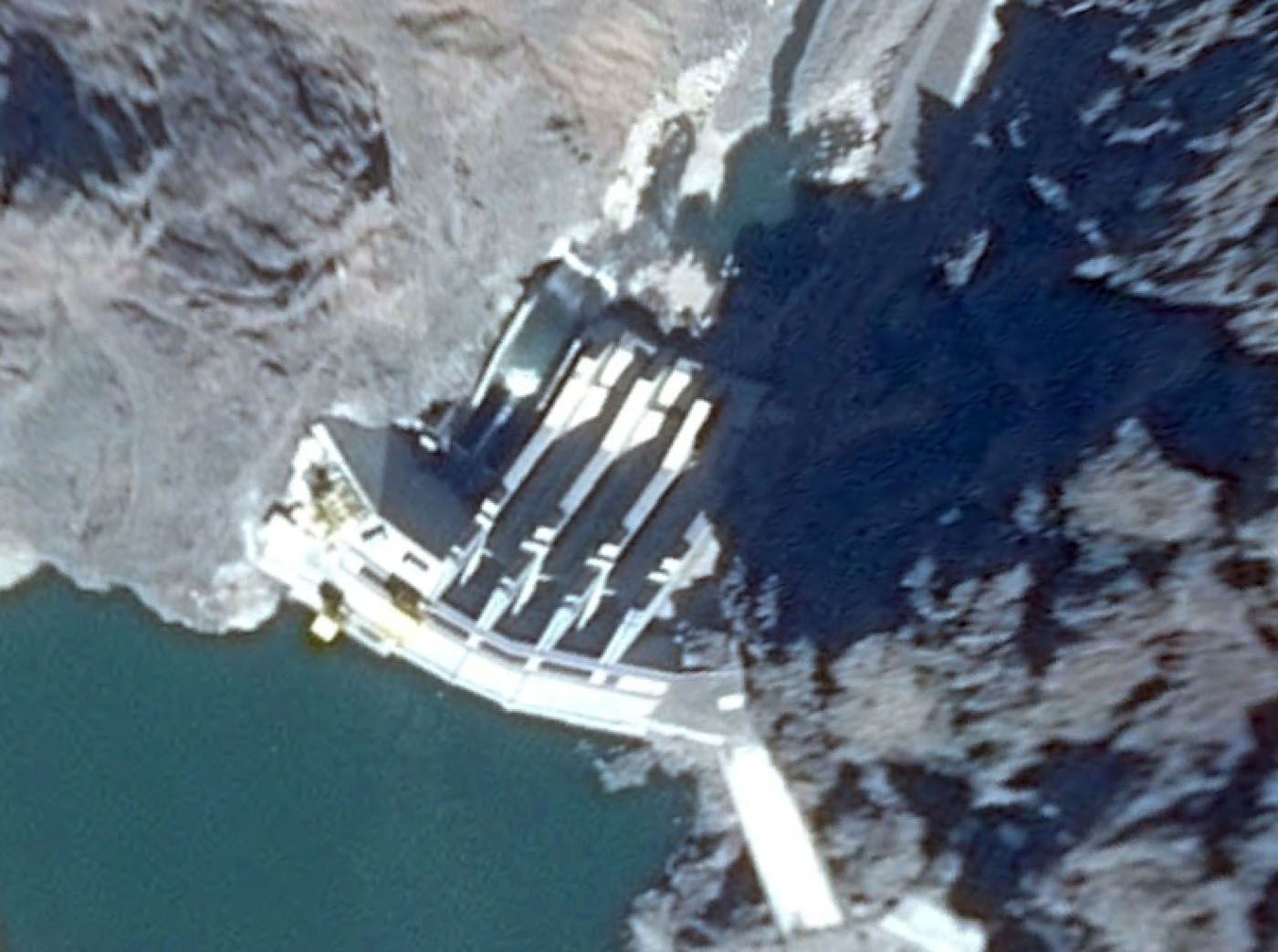

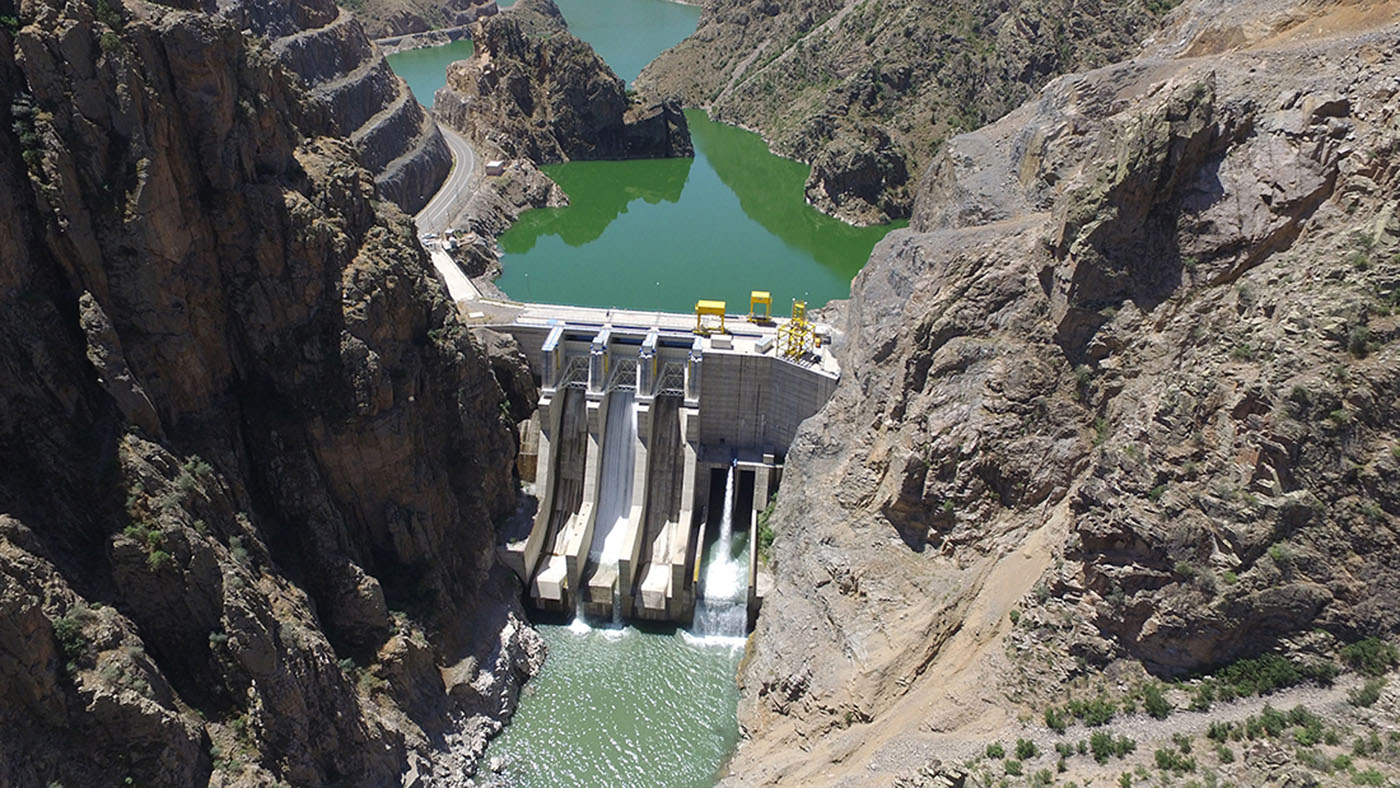

Güllübag

Download PDF data sheet
Güllübag completed
Güllübag completed

Particulars

Owner: Senerji Enerji

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 11 m3x106

Height: 72 metres

Length: 97 metres

Volume of RCC: 160 m3x103

Total volume: 175 m3x103

Construction Dates

Start of Project: 05/09 (May 2009)

Start of RCC: 02/11 (February 2011)

End of RCC: 06/11 (June 2011)

End of Project: 02/12 (February 2012)

Country: Turkey

River: Çoruh

DMS Co-ordinates: 40˚31'18.16"N, 41˚01'17.49"E

DD Co-ordinates: 40.521709, 41.021526

Facings

Upstream

SlopeType
VerticalRCC against formwork

Downstream

SlopeType
0.50RCC against formwork
0.70

Spillway

SlopeType
0.70Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
70
Pozzolan (kg/m3)Pozzolan Type
70Low-lime flyash (ASTM Class F)
