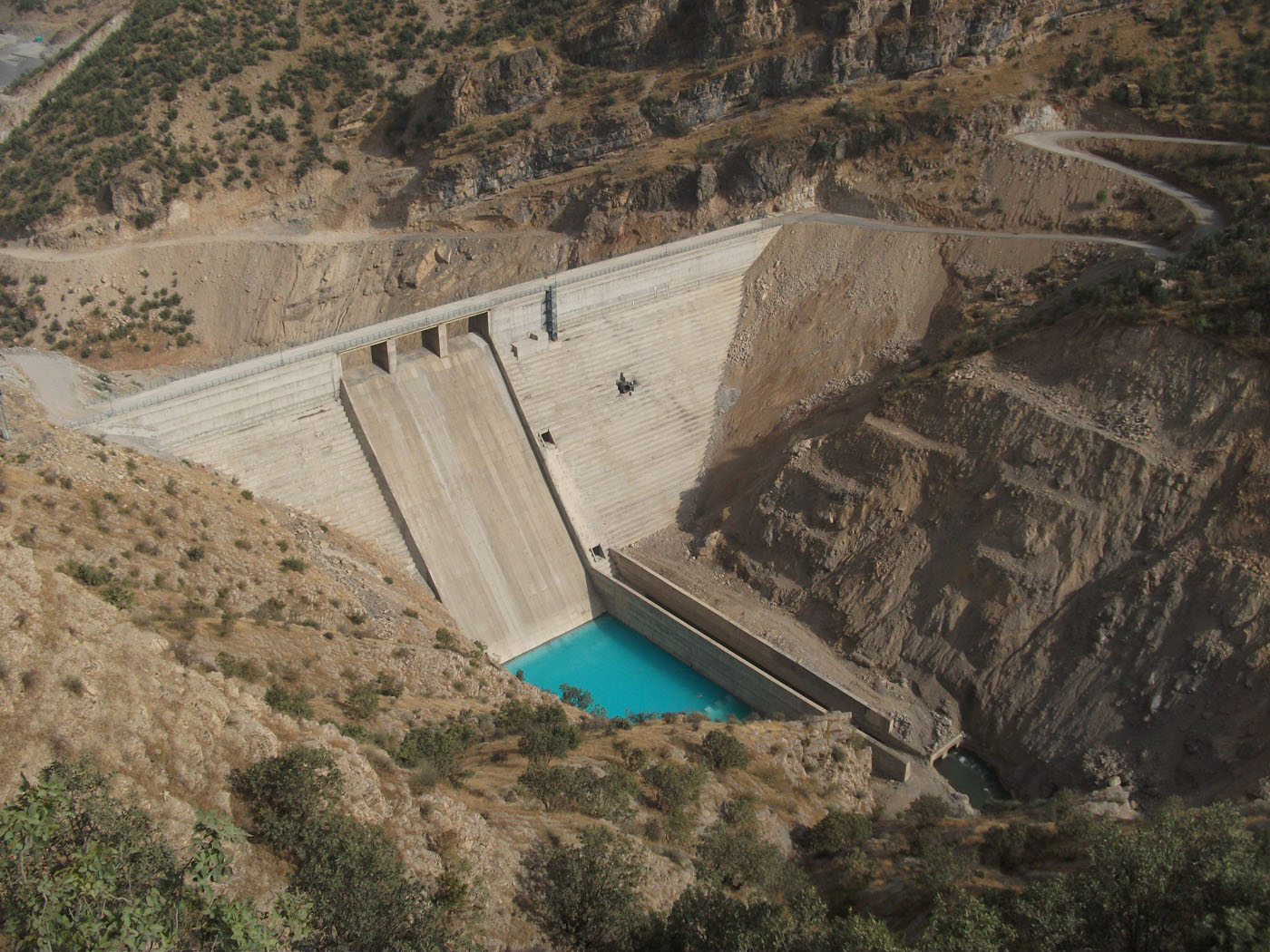

Şirnak
Download PDF data sheet
Şirnak completed
Particulars
Owner: DSI - State Hydraulic Works
Designer: ESPM Eser Proje ve Müh. A.S.
Contractor: AGE Construction and Trading Co.
Statistics
Type: Gravity
Purpose(s): Hydropower
Reservoir capacity: 18 m3x106
Height: 67 metres
Length: 198 metres
Volume of RCC: 157 m3x103
Total volume: 231 m3x103
Construction Dates
Start of Project: —/08 (— 2008)
Start of RCC: 11/09 (November 2009)
End of RCC: 08/10 (August 2010)
End of Project: 09/10 (September 2010)
Country: Turkey
River: Ortasui
DMS Co-ordinates: 37˚26'28.52"N, 42˚44'1.14"E
DD Co-ordinates: 37.441387, 42.733612
Facings
Upstream
| Slope | Type |
|---|---|
| 0.10 | Traditional concrete against formwork |
Downstream
| Slope | Type |
|---|---|
| 0.80 | Traditional concrete against formwork [stepped face] |
Spillway
| Slope | Type |
|---|---|
| 0.80 | Reinforced conventional concrete cast after RCC placement |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 300 | 600 |
Cementitious material
| Cement (kg/m3) |
|---|
| 125 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 0 | No pozzolan used |
