Jararaca

Download PDF data sheet

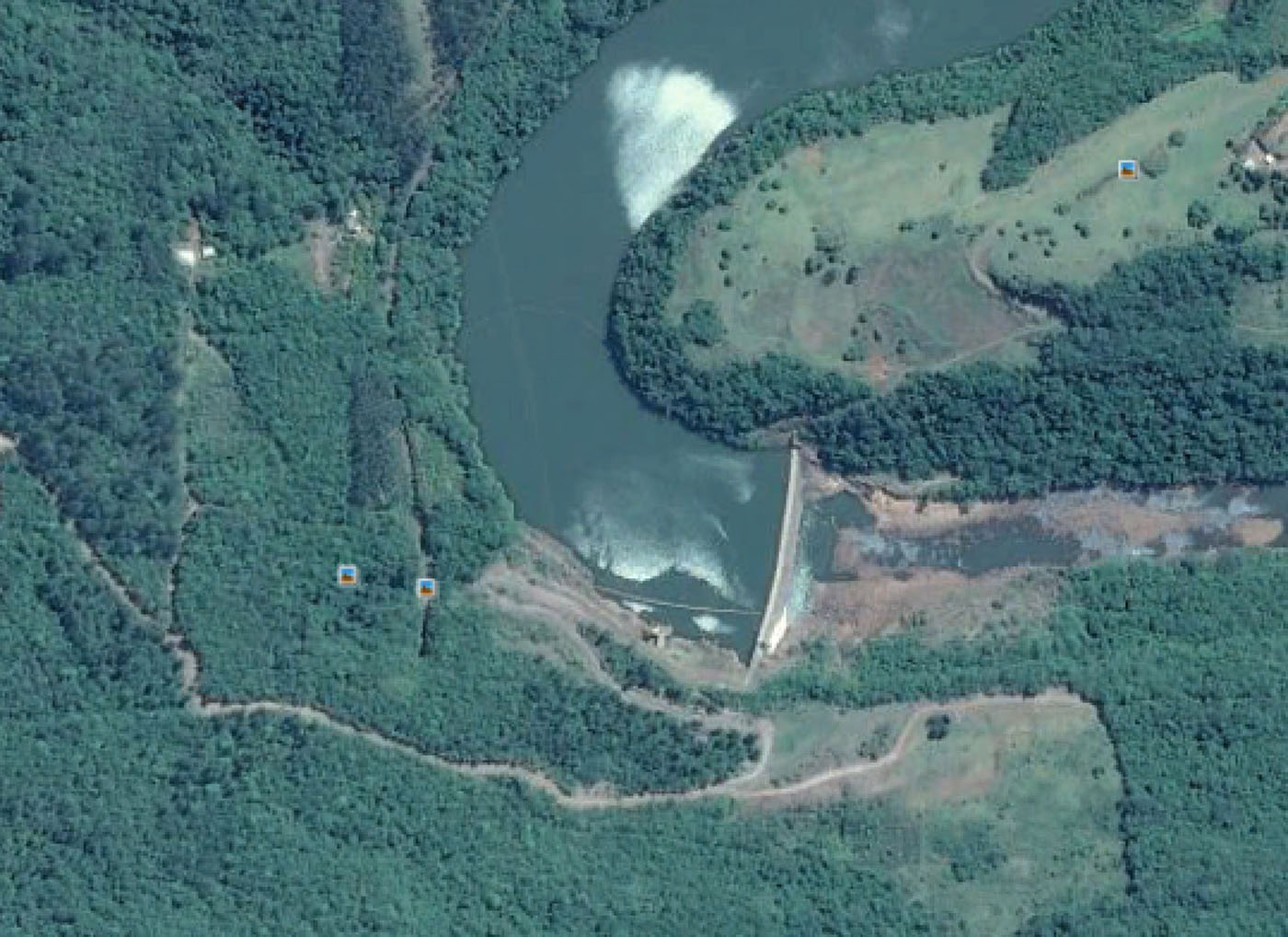

Jararaca on Google Earth
Jararaca on Google Earth

Particulars

Owner: Veneto Energética S/A

Designer: Hidrotermica SA

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 8 m3x106

Height: 25 metres

Length: 220 metres

Volume of RCC: 31 m3x103

Total volume: 61 m3x103

Construction Dates

Start of Project: /06 ( 2006)

Start of RCC: /07 ( 2007)

End of RCC: /07 ( 2007)

End of Project: 04/08 (April 2008)

Country: Brazil

River: da Prata

DMS Co-ordinates: 28˚56'16.56"S, 51˚27'57.52"W

DD Co-ordinates: -28.937933, -51.465977

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)
72
Pozzolan (kg/m3)Pozzolan Type
18
