Linha Emilia

Download PDF data sheet

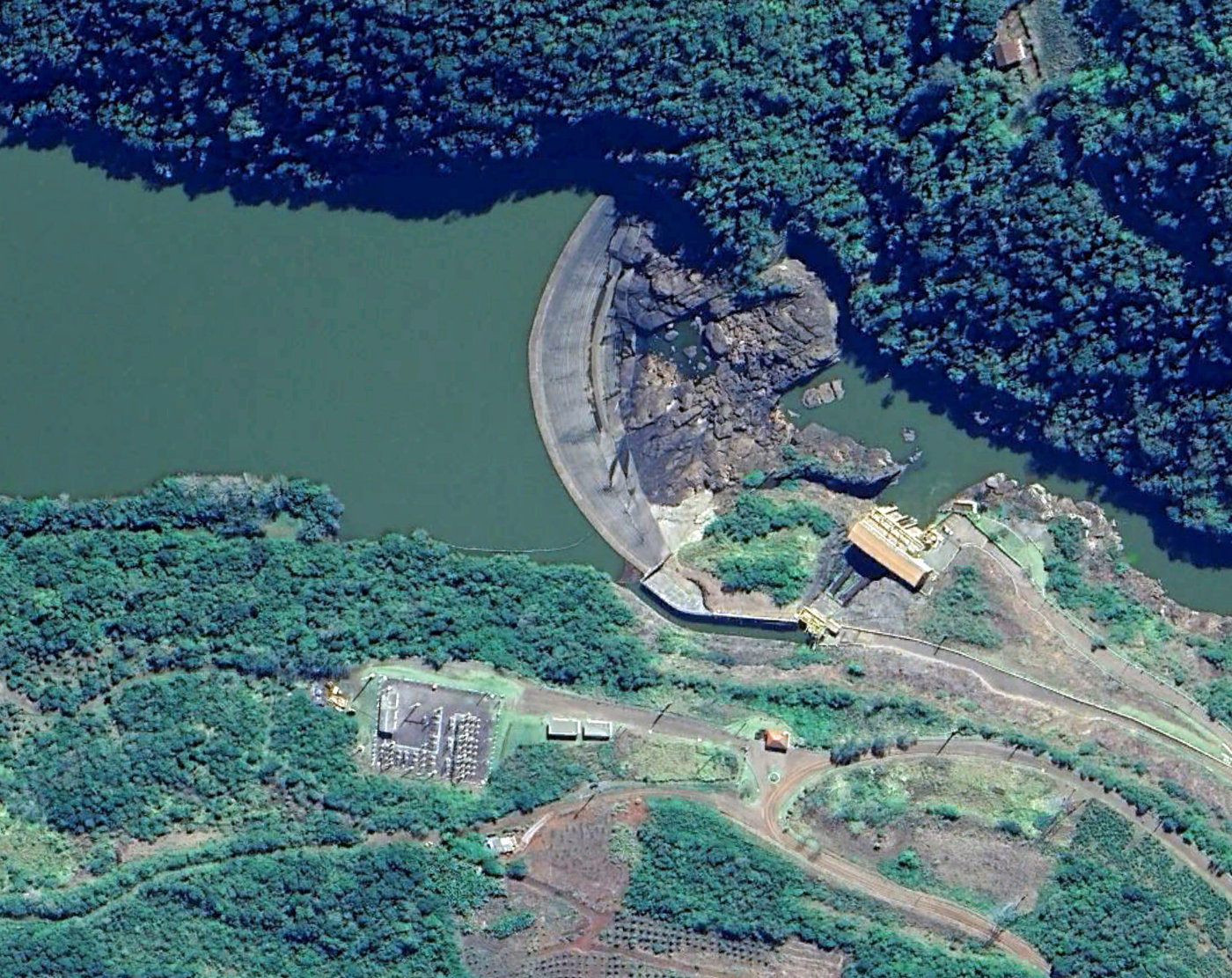

Linha Emilia on Google Earth
Linha Emilia on Google Earth

Particulars

Owner: Linha Emília Energética S/A

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 12 m3x106

Height: 30 metres

Length: 205 metres

Volume of RCC: 35 m3x103

Total volume: 54 m3x103

Construction Dates

Start of Project: /06 ( 2006)

Start of RCC: /07 ( 2007)

End of RCC: /07 ( 2007)

End of Project: /08 ( 2008)

Country: Brazil

River: unknown

DMS Co-ordinates: 28˚56'27.04"S, 51˚46'23.84"W

DD Co-ordinates: -28.940844, -51.773289

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type
