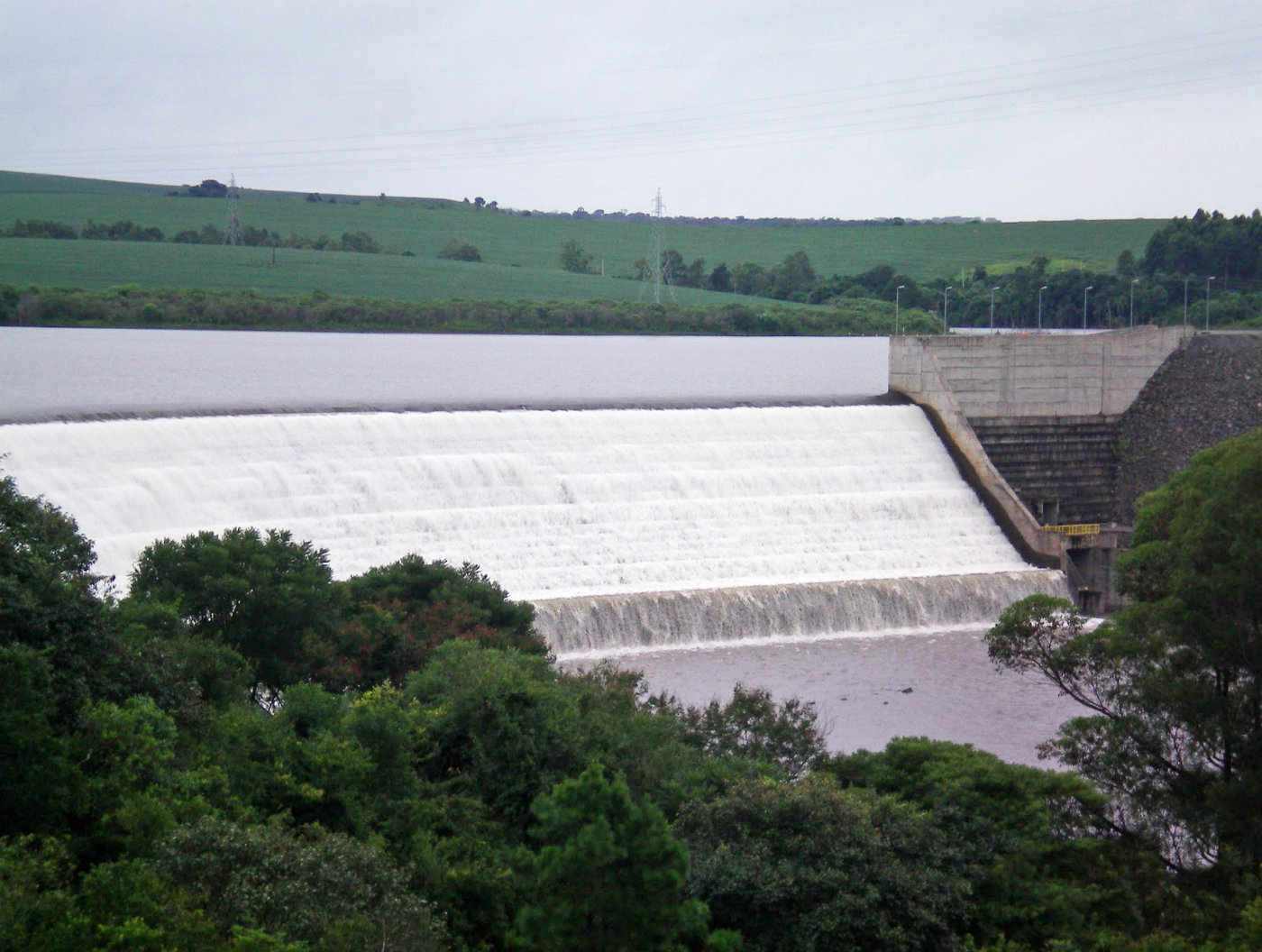

Ludesa

Download PDF data sheet
Ludesa completed
Ludesa completed

Particulars

Owner: CPFL Renovaveis

Designer: Consórcio São Domingos

Contractor: unknown

Statistics

Type: Hardfill

Purpose(s): Hydropower

Reservoir capacity: 142 m3x106

Height: 29 metres

Length: 300 metres

Volume of RCC: unknown

Total volume: unknown

Construction Dates

Start of Project: /06 ( 2006)

Start of RCC: /06 ( 2006)

End of RCC: /07 ( 2007)

End of Project: 04/07 (April 2007)

Country: Brazil

River: Chapecó

DMS Co-ordinates: 26˚34'41.15"S, 52˚29'46.76"W

DD Co-ordinates: -26.578096, -52.496323

Facings

Upstream

SlopeType
1.50

Downstream

SlopeType
1.50

Spillway

SlopeType
0.75

Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type
