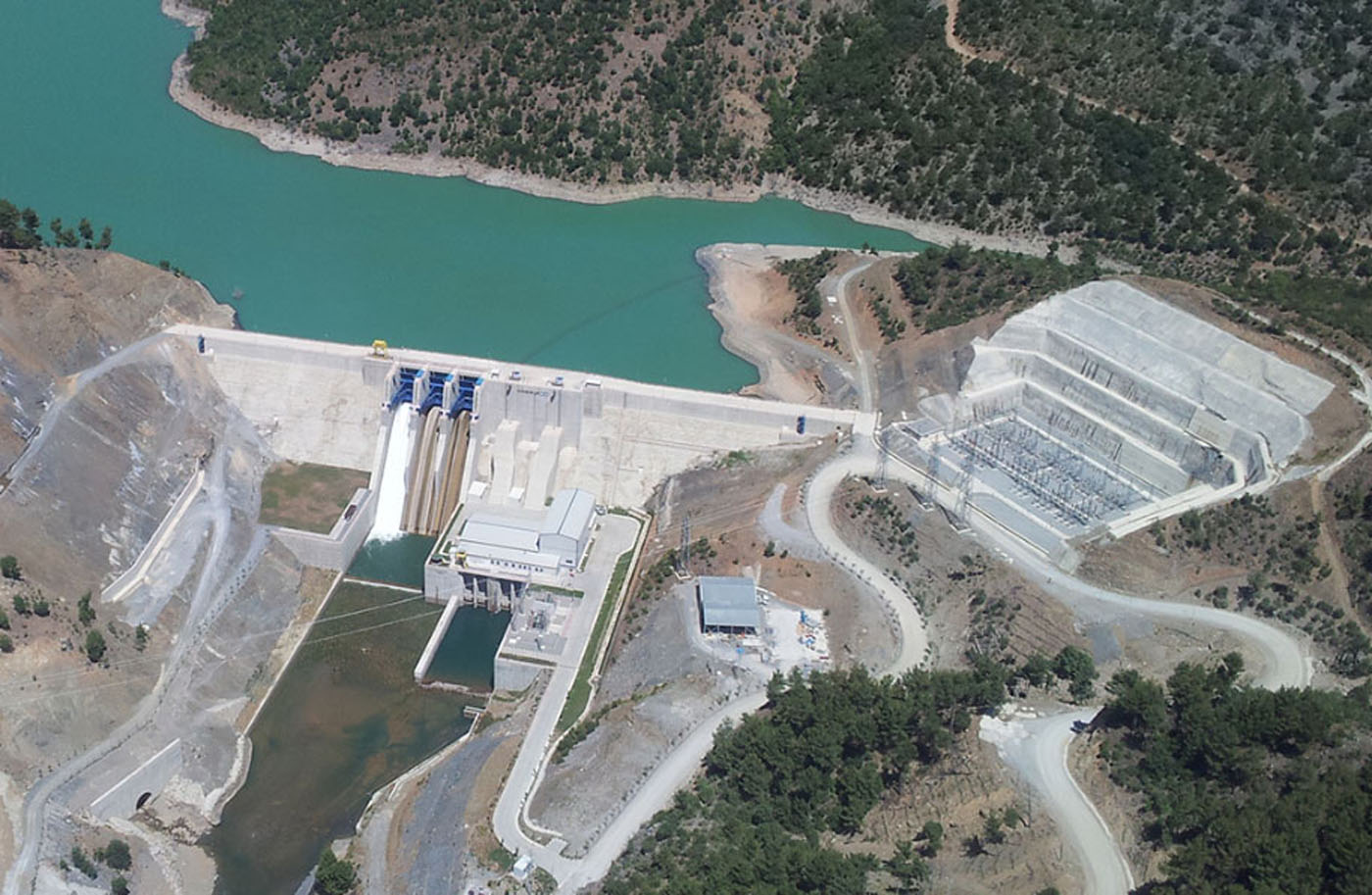

Menge

Download PDF data sheet
Menge completed
Menge completed

Particulars

Owner: Enerjisa En. Ut. A.S.

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 23 m3x106

Height: 73 metres

Length: 304 metres

Volume of RCC: 321 m3x103

Total volume: 384 m3x103

Construction Dates

Start of Project: 05/09 (May 2009)

Start of RCC: 08/10 (August 2010)

End of RCC: 10/11 (October 2011)

End of Project: 12/11 (December 2011)

Country: Turkey

River: Göksu

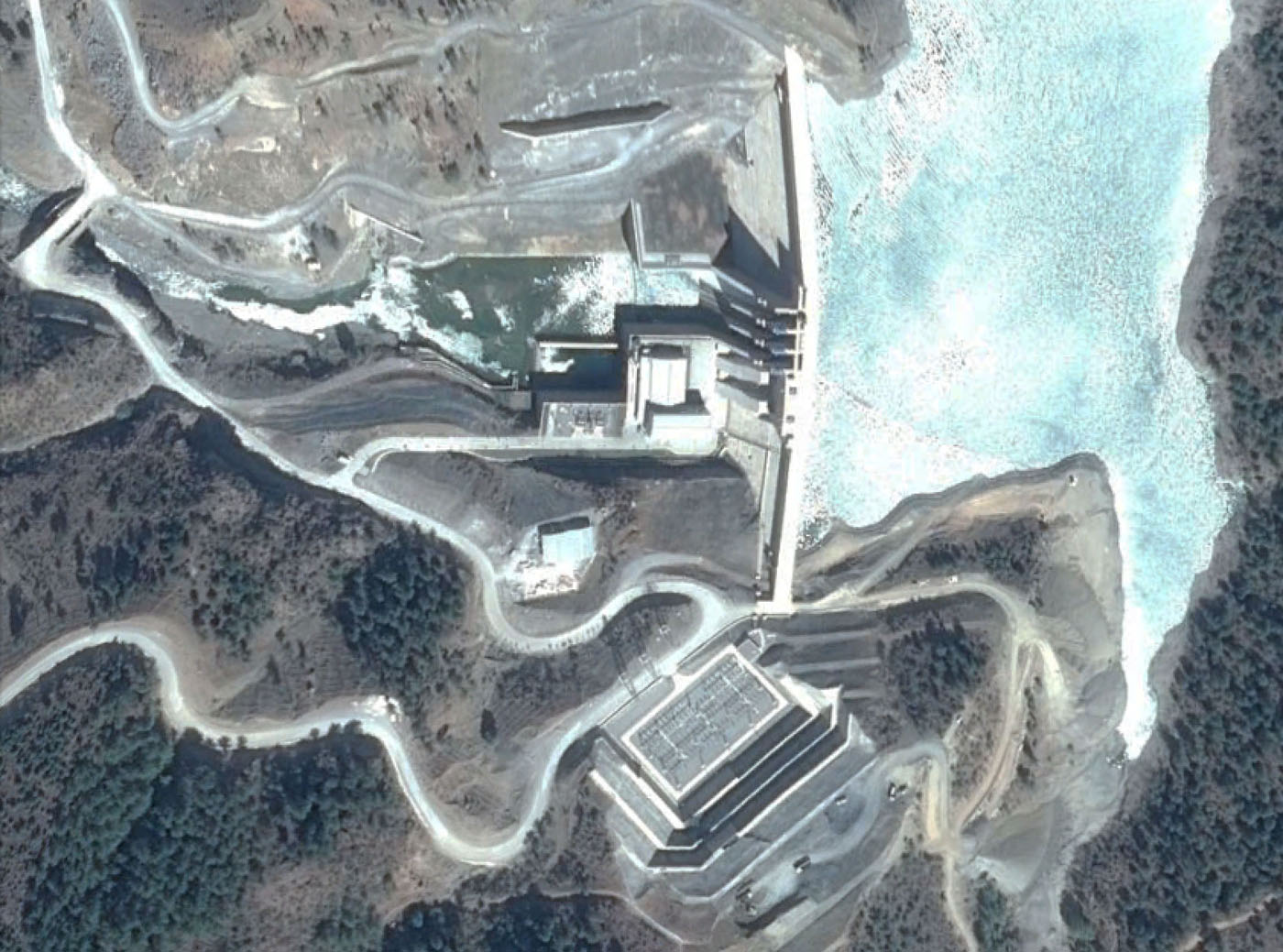

DMS Co-ordinates: 37˚42'17.38"N, 35˚43'24.60"E

DD Co-ordinates: 37.704826, 35.723499

Facings

Upstream

SlopeType
0.25Traditional concrete against formwork

Downstream

SlopeType
0.80RCC against formwork

Spillway

SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
80
Pozzolan (kg/m3)Pozzolan Type
40Low-lime flyash (ASTM Class F)
