Ninho da Águia

Download PDF data sheet

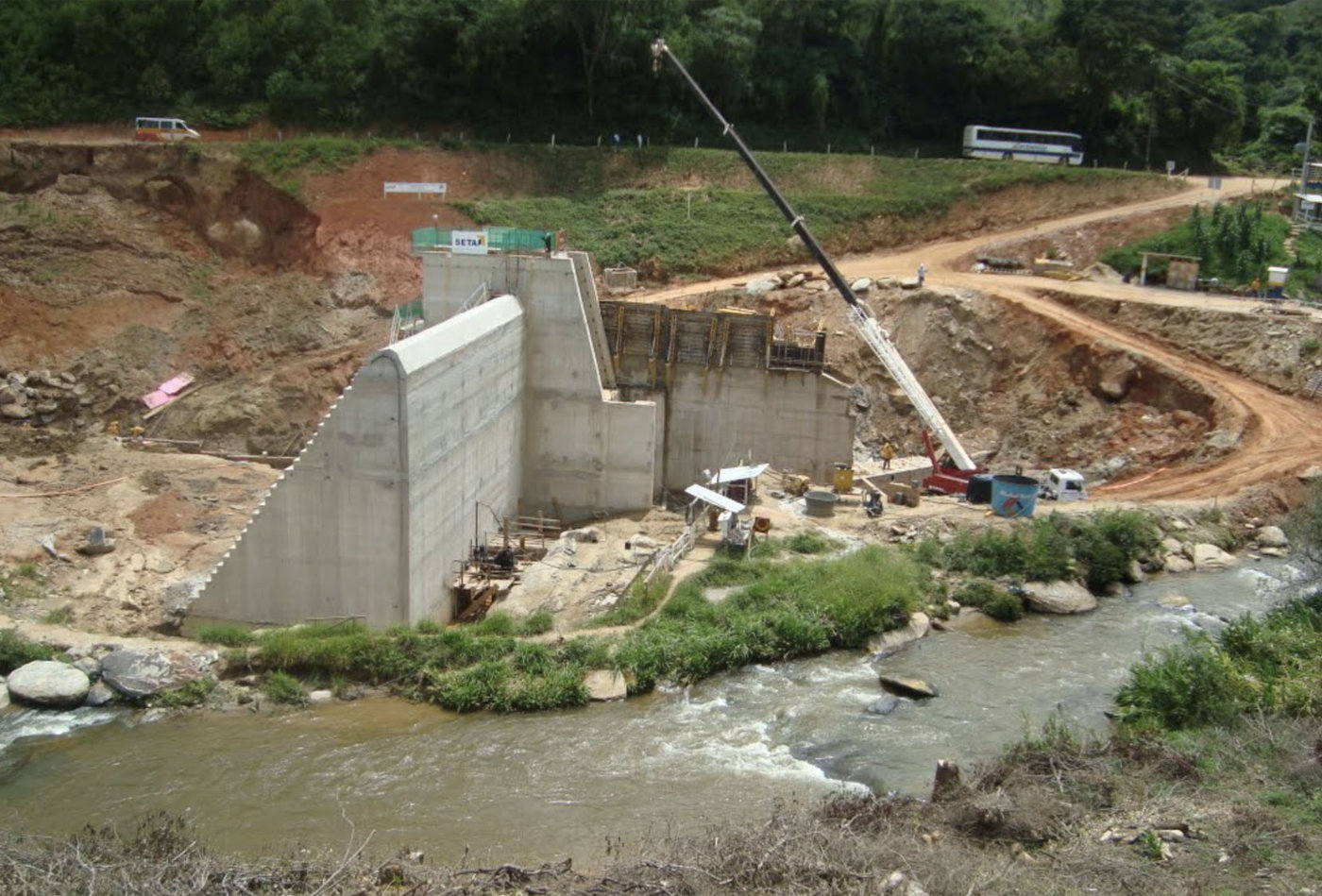

Ninho da Águia completed

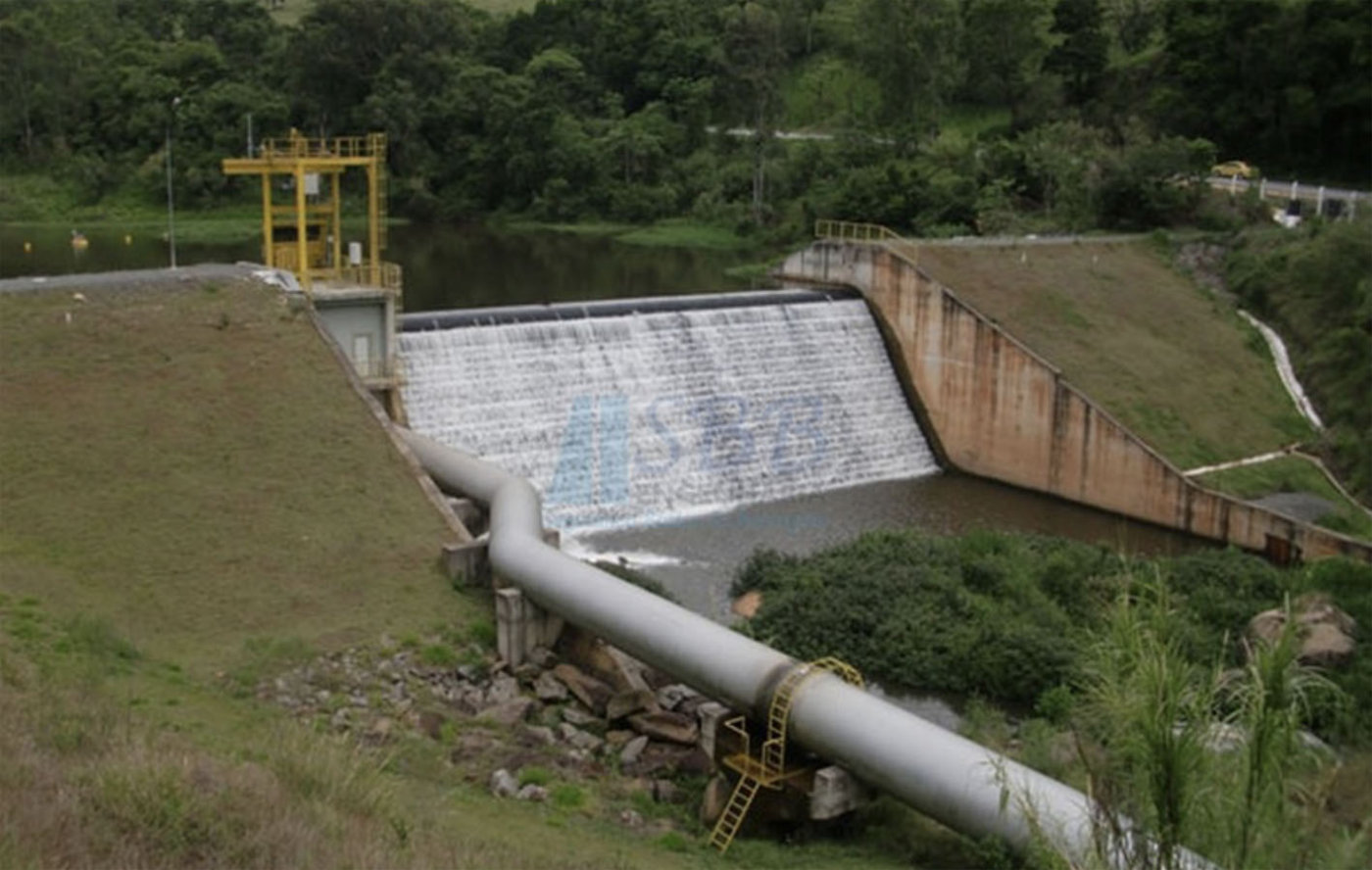

Ninho da Águia completed

Particulars

Owner: CPFL Renovaveis

Designer: MEK Engenharia

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 1 m3x106

Height: 15 metres

Length: 94 metres

Volume of RCC: unknown

Total volume: 14 m3x103

Construction Dates

Start of Project: /09 ( 2009)

Start of RCC: /09 ( 2009)

End of RCC: /10 ( 2010)

End of Project: /10 ( 2010)

Country: Brazil

River: Santo Antônio

DMS Co-ordinates: 22˚29'37.47"S, 45˚19'48.72"W

DD Co-ordinates: -22.493742, -45.330200

Facings

Upstream

SlopeType
Vertical

Downstream

SlopeType
0.75

Spillway

SlopeType
0.75

Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type
