Oguzlar

Download PDF data sheet

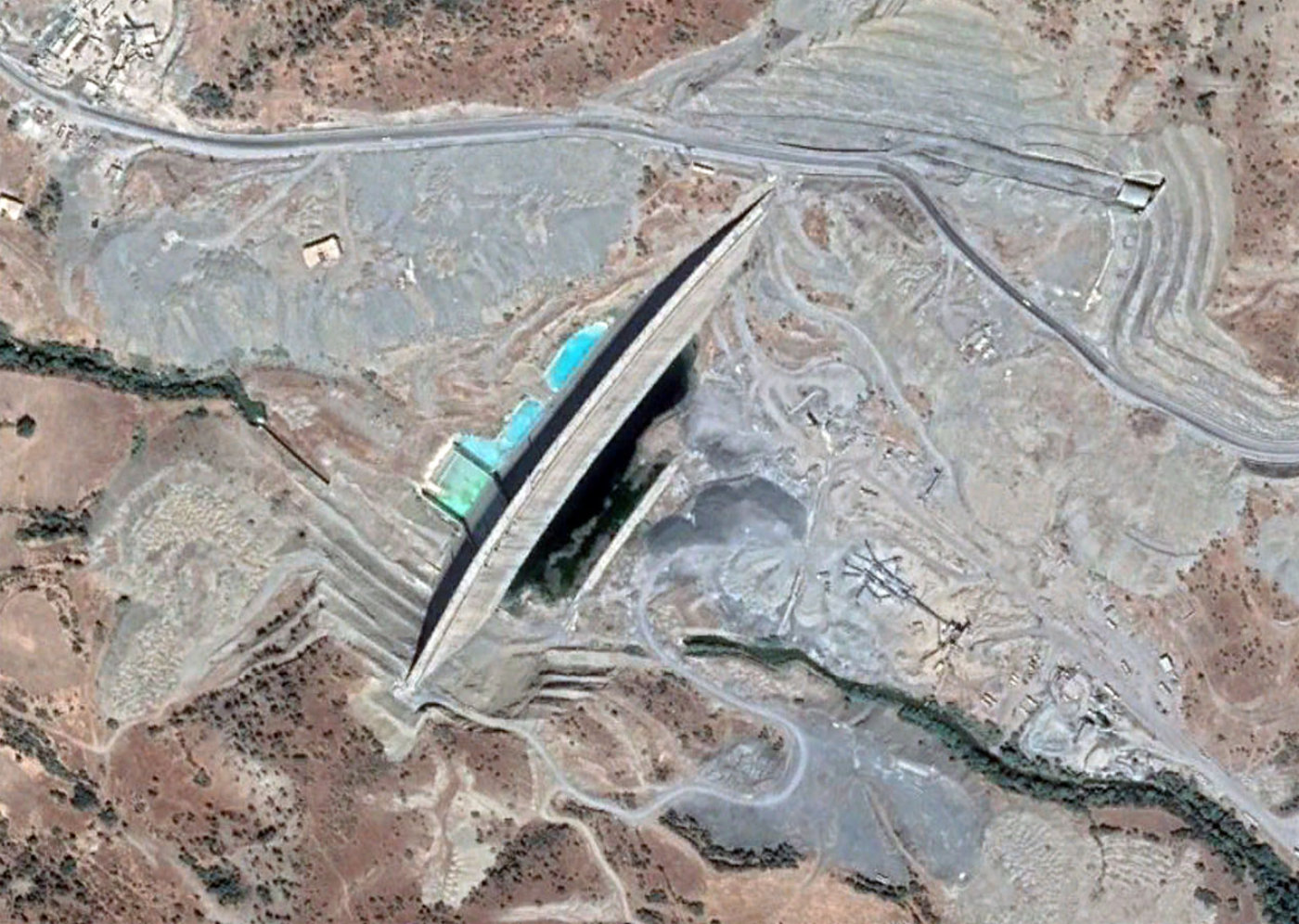

Oguzlar on Google Earth
Oguzlar on Google Earth

Particulars

Owner: DSI - State Hydraulic Works

Designer: ESPM Eser Proje ve Müh. A.S.

Contractor: Ceysu

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 20 m3x106

Height: 63 metres

Length: 431 metres

Volume of RCC: 392 m3x103

Total volume: 460 m3x103

Construction Dates

Start of Project: 09/08 (September 2008)

Start of RCC: /13 ( 2013)

End of RCC: /14 ( 2014)

End of Project: /15 ( 2015)

Country: Turkey

River: Ortasu

DMS Co-ordinates: 37˚25'35.2"N, 42˚48'9.27"E

DD Co-ordinates: 37.425556, 42.802574

Facings

Upstream

SlopeType
0.10Traditional concrete against formwork

Downstream

SlopeType
0.80Traditional concrete against formwork  [stepped face]

Spillway

SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300600

Cementitious material

Cement (kg/m3)
100
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -
