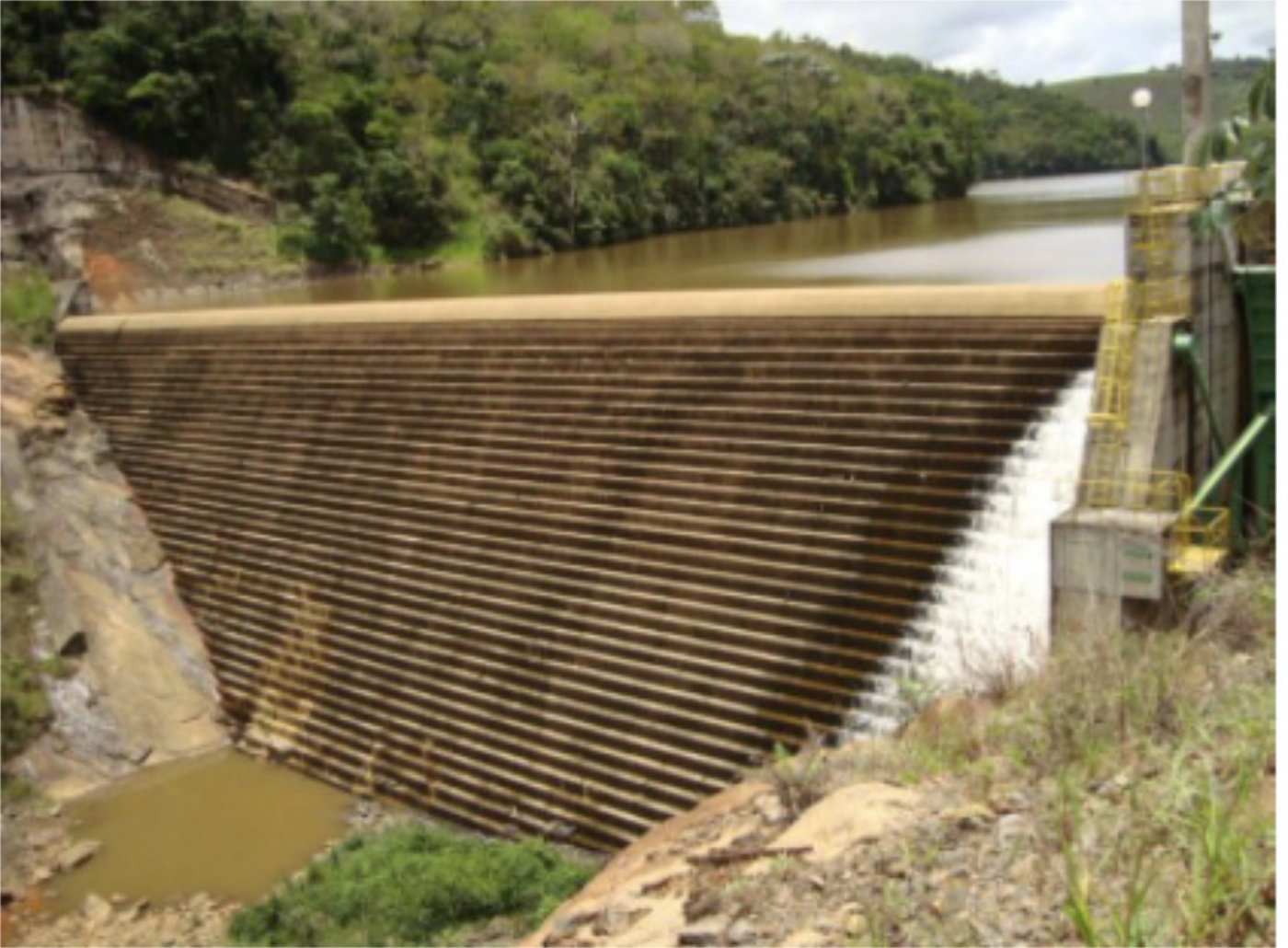

Picada

Download PDF data sheet
Picada completed
Picada completed

Particulars

Owner: Votorantim S.A.

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 7 m3x106

Height: 32 metres

Length: unknown

Volume of RCC: unknown

Total volume: unknown

Construction Dates

Start of Project: /02 ( 2002)

Start of RCC: /03 ( 2003)

End of RCC: /05 ( 2005)

End of Project: /06 ( 2006)

Country: Brazil

River: unknown

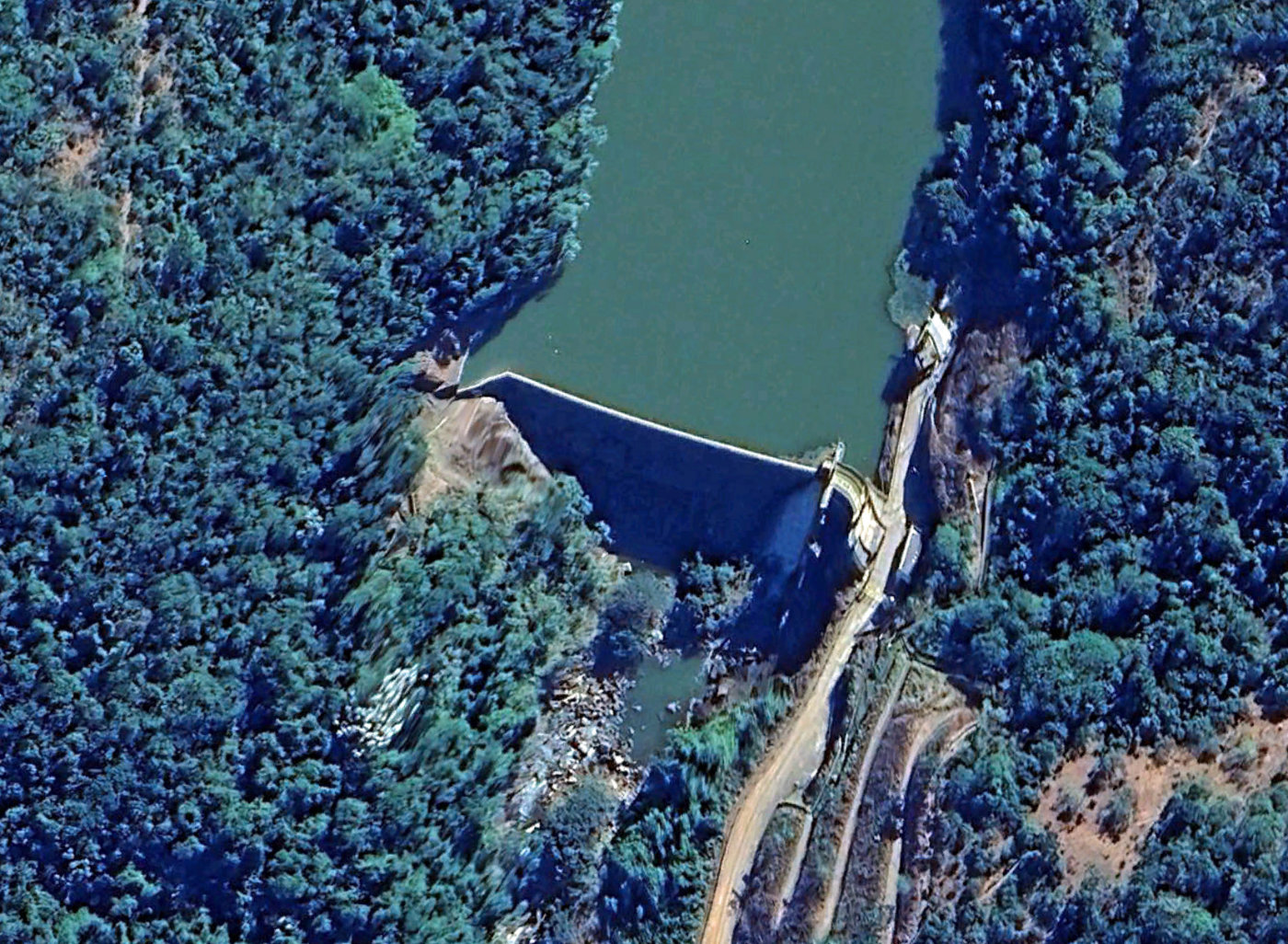

DMS Co-ordinates: 21˚53'4.6"S, 43˚32'27.13"W

DD Co-ordinates: -21.884611, -43.540871

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type
