Santa Eugenia

Download PDF data sheet

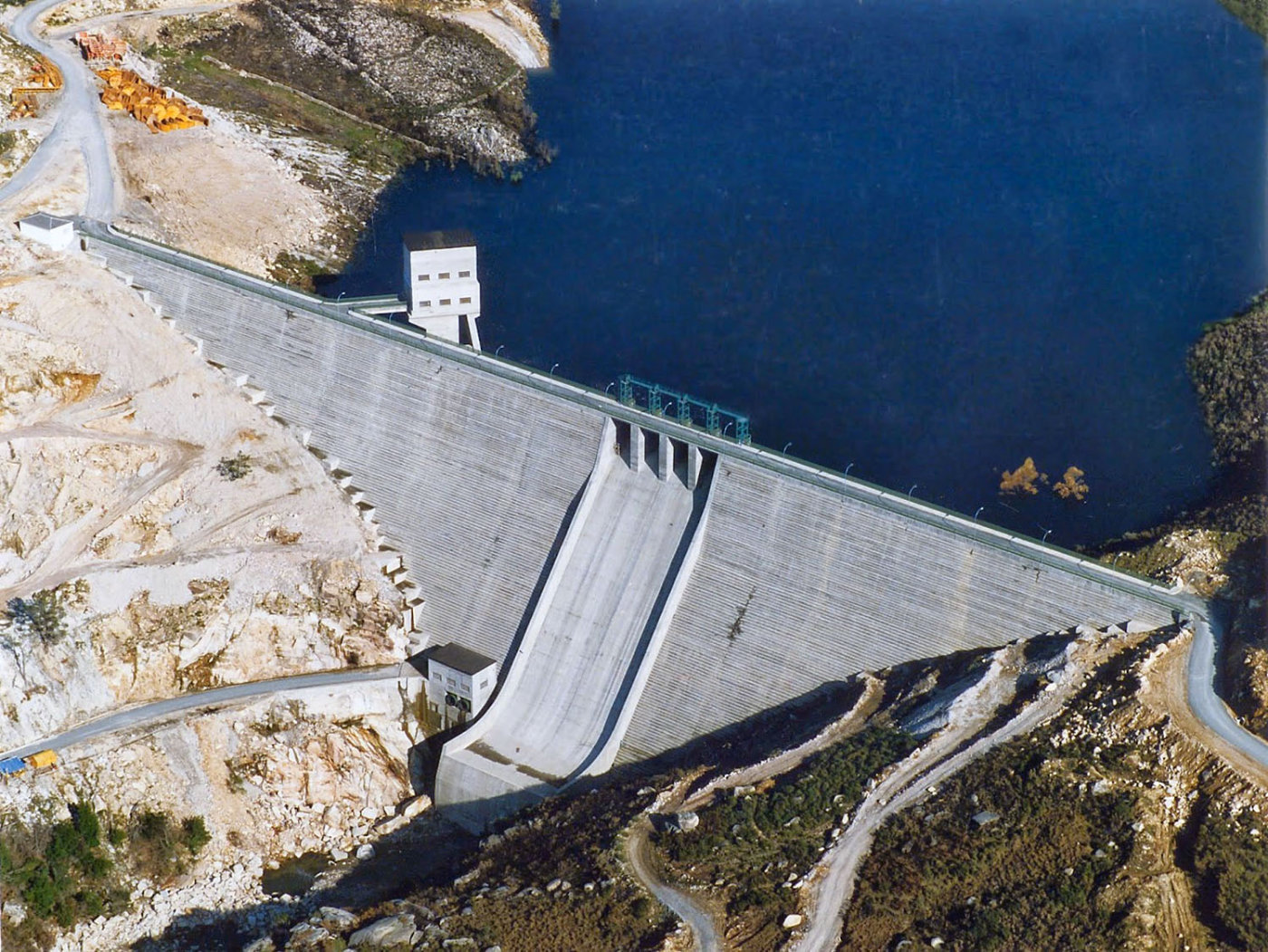

Santa Eugenia completed
Santa Eugenia completed

Particulars

Owner: Sociedad Española de Carburos Metálicos S.A.

Designer: Oficina Tecnica AEPO (Eng. Vicente Perez Vilar)

Contractor: Cubiertas y Mzov S.A.

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 17 m3x106

Height: 84 metres

Length: 290 metres

Volume of RCC: 225 m3x103

Total volume: 254 m3x103

Construction Dates

Start of Project: 01/87 (January 1987)

Start of RCC: 06/87 (June 1987)

End of RCC: 06/88 (June 1988)

End of Project: 10/88 (October 1988)

Country: Spain

River: Xallas

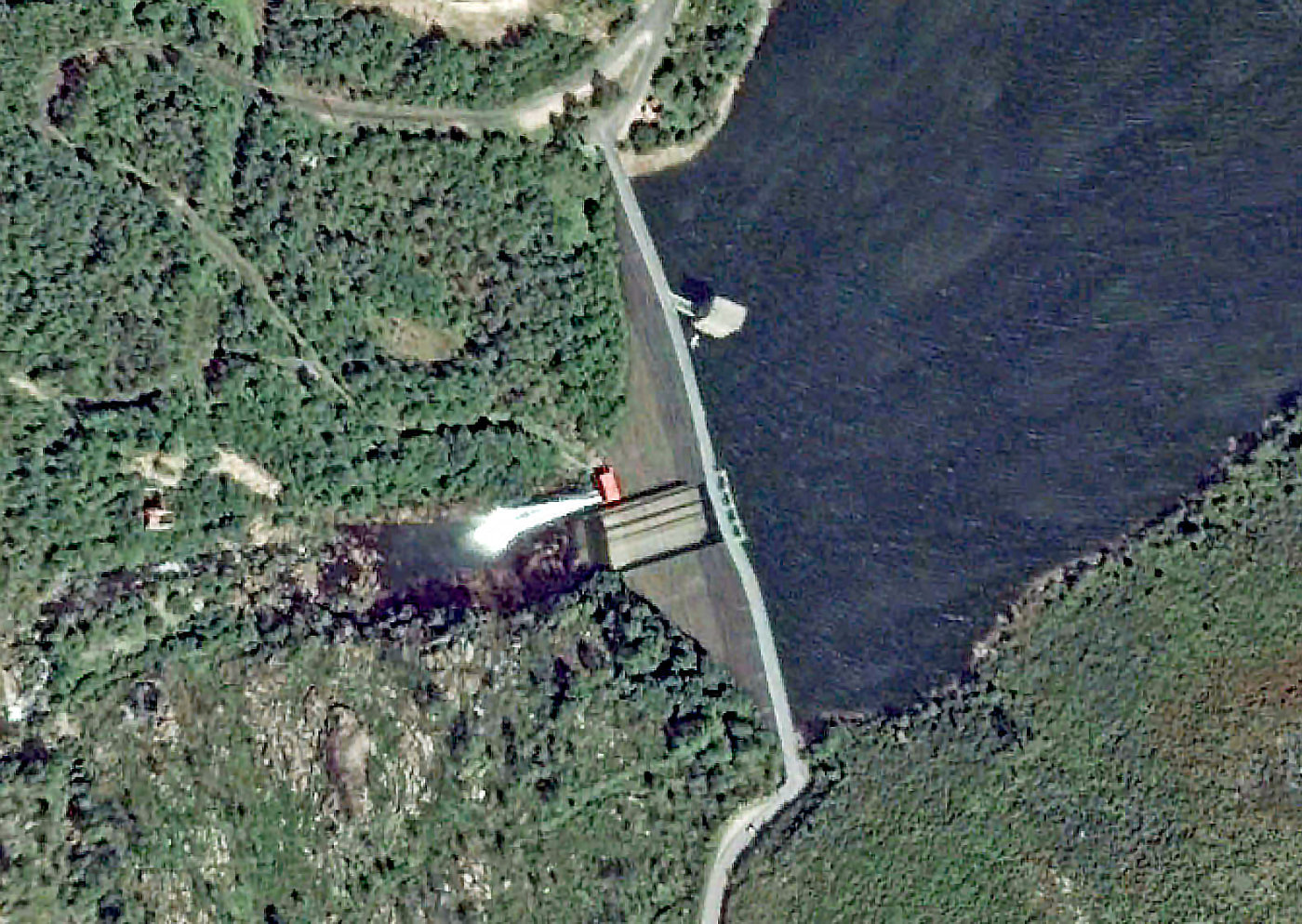

DMS Co-ordinates: 42˚54'53.18"N, 9˚6'14.98"W

DD Co-ordinates: 42.914772, -9.104161

Facings

Upstream

SlopeType
0.05RCC against formwork

Downstream

SlopeType
0.75RCC against formwork  [stepped face]
0.35RCC against formwork  [stepped face]

Spillway

SlopeType
0.75Traditional concrete against formwork

Placement

Layers (mm)Lifts (mm)
250250

Cementitious material

Cement (kg/m3)
88
72
Pozzolan (kg/m3)Pozzolan Type
152Low-lime flyash (ASTM Class F)
145
