Vinoramas

Download PDF data sheet

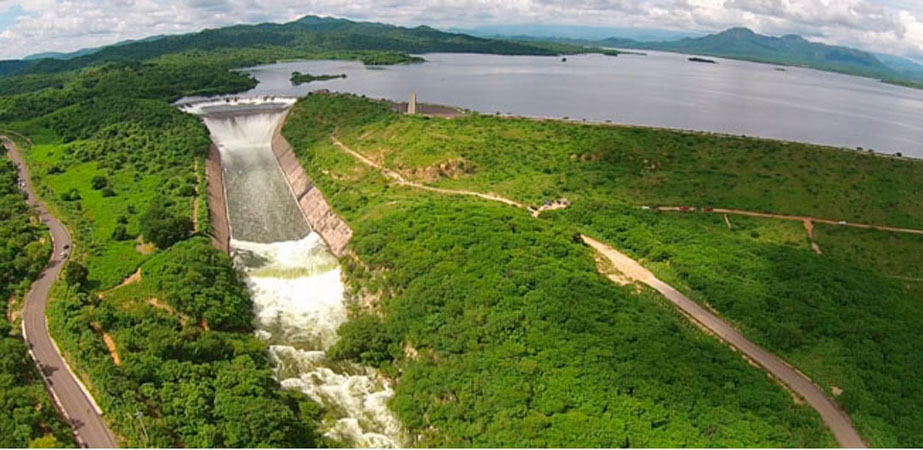

Vinoramas completed
Vinoramas completed

Particulars

Owner: CNA (Comisión Nacional del Agua)/Estado de Sinaloa

Designer: CNA/Tecnologia y Sistemas

Contractor: Comision Constructora del Estado de Sinaloa

Statistics

Type: Gravity

Purpose(s): Flood Control / Irrigation

Reservoir capacity: 102 m3x106

Height: 50 metres

Length: 807 metres

Volume of RCC: 117 m3x103

Total volume: 184 m3x103

Construction Dates

Start of Project: 10/91 (October 1991)

Start of RCC: 04/93 (April 1993)

End of RCC: 12/93 (December 1993)

End of Project: 01/94 (January 1994)

Country: Mexico

River: El Bledal

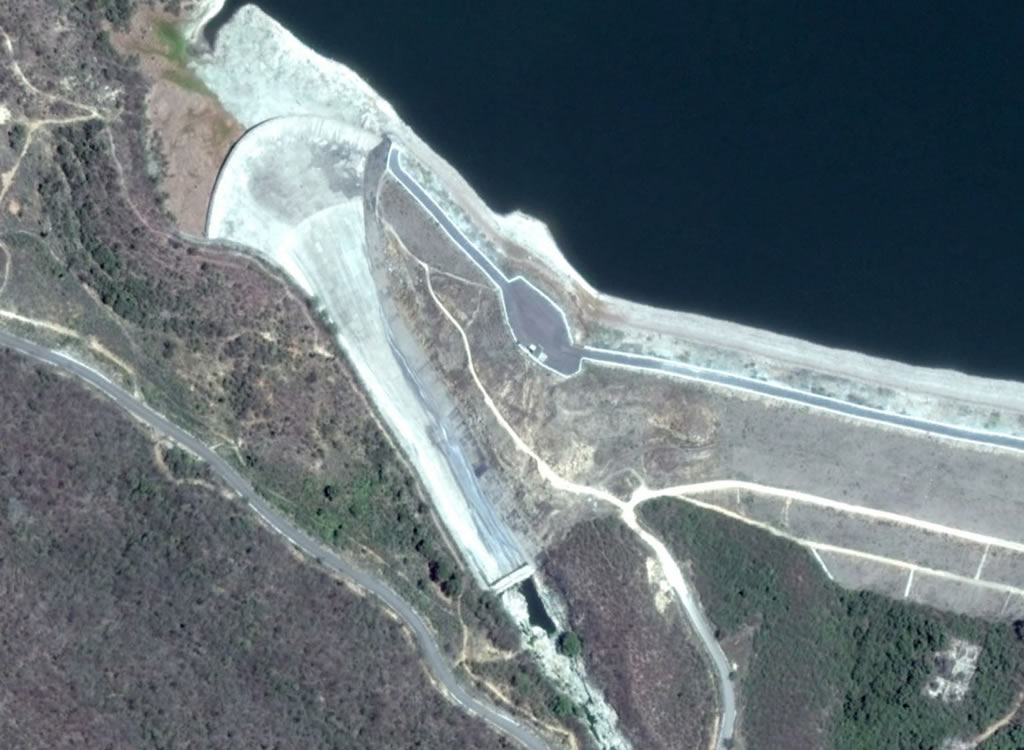

DMS Co-ordinates: 24˚49'2.19"N, 107˚09'26.17"W

DD Co-ordinates: 24.817274, -107.157272

Facings

Upstream

SlopeType
VerticalTraditional concrete against precast concrete panels

Downstream

SlopeType
0.80RCC against formwork  [stepped face]

Spillway

SlopeType
0.80Reinforced concrete cast against precast units or slip-formed facing elements

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
100
Pozzolan (kg/m3)Pozzolan Type
100Milled sand
