Yanwangbizi
Download PDF data sheet

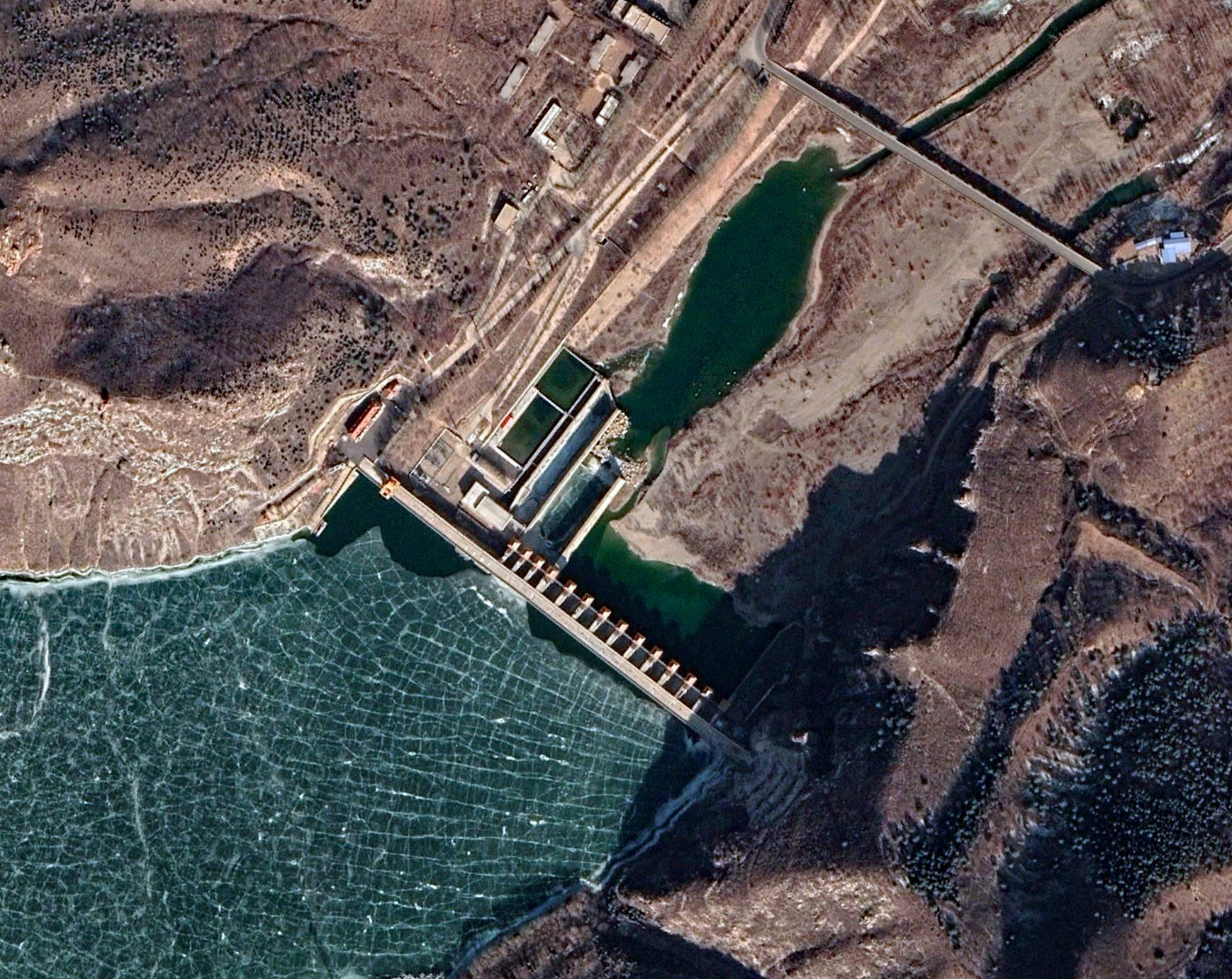

Yanwangbizi on Google Earth
Particulars
Owner: Chaoyang Water Conservancy Bureau
Designer: Liaoning Hydropower Investigation & Design Institute
Contractor: 1st Construction Bureau
Statistics
Type: Gravity
Purpose(s): Flood Control / Hydropower / Irrigation / Water Supply
Reservoir capacity: 217 m3x106
Height: 35 metres
Length: 383 metres
Volume of RCC: 87 m3x103
Total volume: 220 m3x103
Construction Dates
Start of Project: —/96 (— 1996)
Start of RCC: —/97 (— 1997)
End of RCC: —/01 (— 2001)
End of Project: —/02 (— 2002)
Country: China
River: Daling
DMS Co-ordinates: 41˚24'15.82"N, 120˚17'56.95"E
DD Co-ordinates: 41.404392, 120.299156
Facings
Upstream
| Slope | Type |
|---|---|
Downstream
| Slope | Type |
|---|---|
Spillway
| Slope | Type |
|---|---|
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
Cementitious material
| Cement (kg/m3) |
|---|
| 64 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 118 | Low-lime flyash (ASTM Class F) |
