Yukari (Upper) Kaleköy

Download PDF data sheet

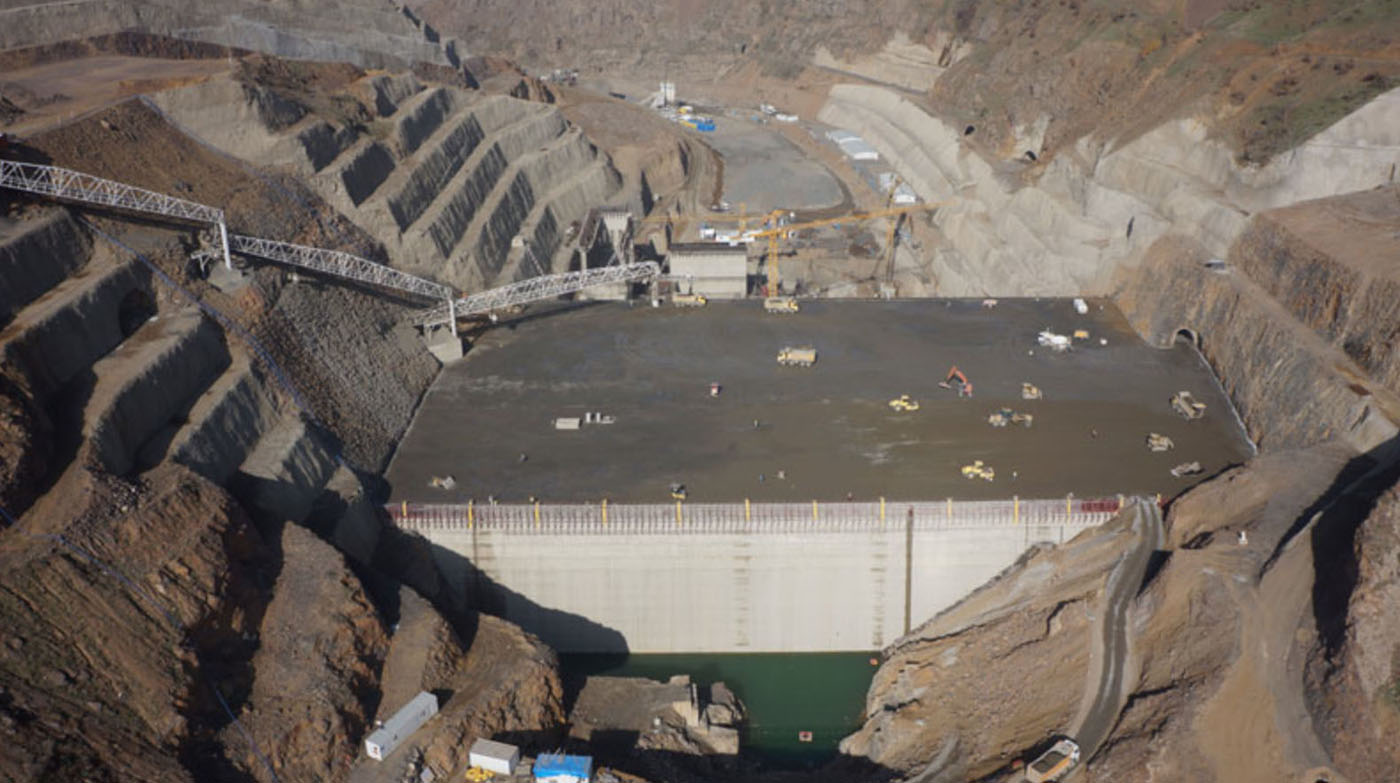

Yukari (Upper) Kaleköy under construction
Yukari (Upper) Kaleköy under construction

Particulars

Owner: Kalehan Energy Üretim ve Ticaret A.S.

Designer: Temelsu International Engineering Services Inc.

Contractor: Ozaltin Ins. Tic. ve San A.S.

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 784 m3x106

Height: 150 metres

Length: 516 metres

Volume of RCC: 2224 m3x103

Total volume: 2414 m3x103

Construction Dates

Start of Project: 06/12 (June 2012)

Start of RCC: 06/14 (June 2014)

End of RCC: 09/16 (September 2016)

End of Project: 04/18 (April 2018)

Country: Turkey

River: Murat

DMS Co-ordinates: 38˚48'49.70"N, 41˚2'31.55"E

DD Co-ordinates: 38.813889, 41.042095

Facings

Upstream

SlopeType
0.25RCC against precast concrete panels

Downstream

SlopeType
0.80Traditional concrete against formwork

Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
130
Pozzolan (kg/m3)Pozzolan Type
0Milled sand
