Serra dos Cavalinhos II

Download PDF data sheet

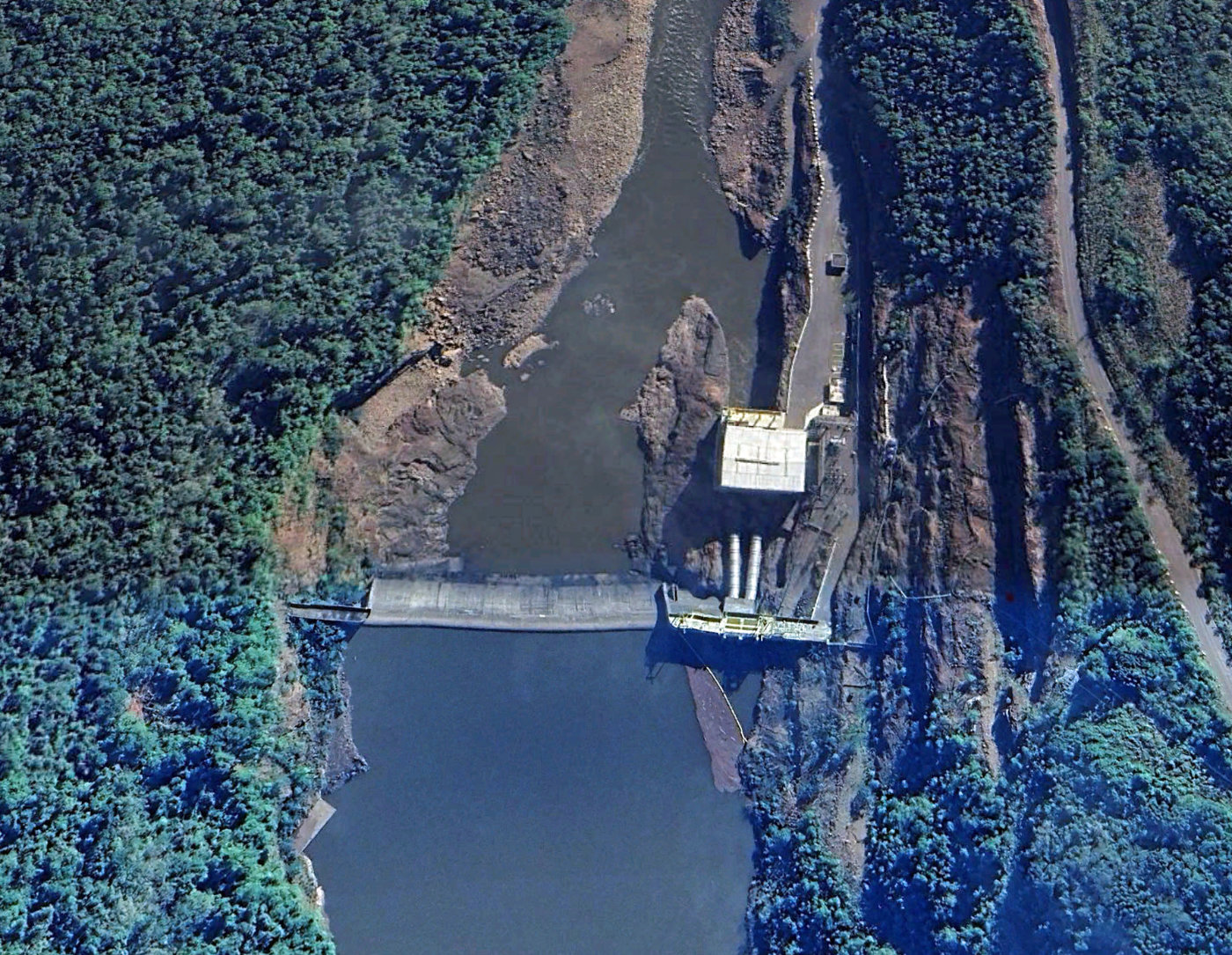

Serra dos Cavalinhos II completed

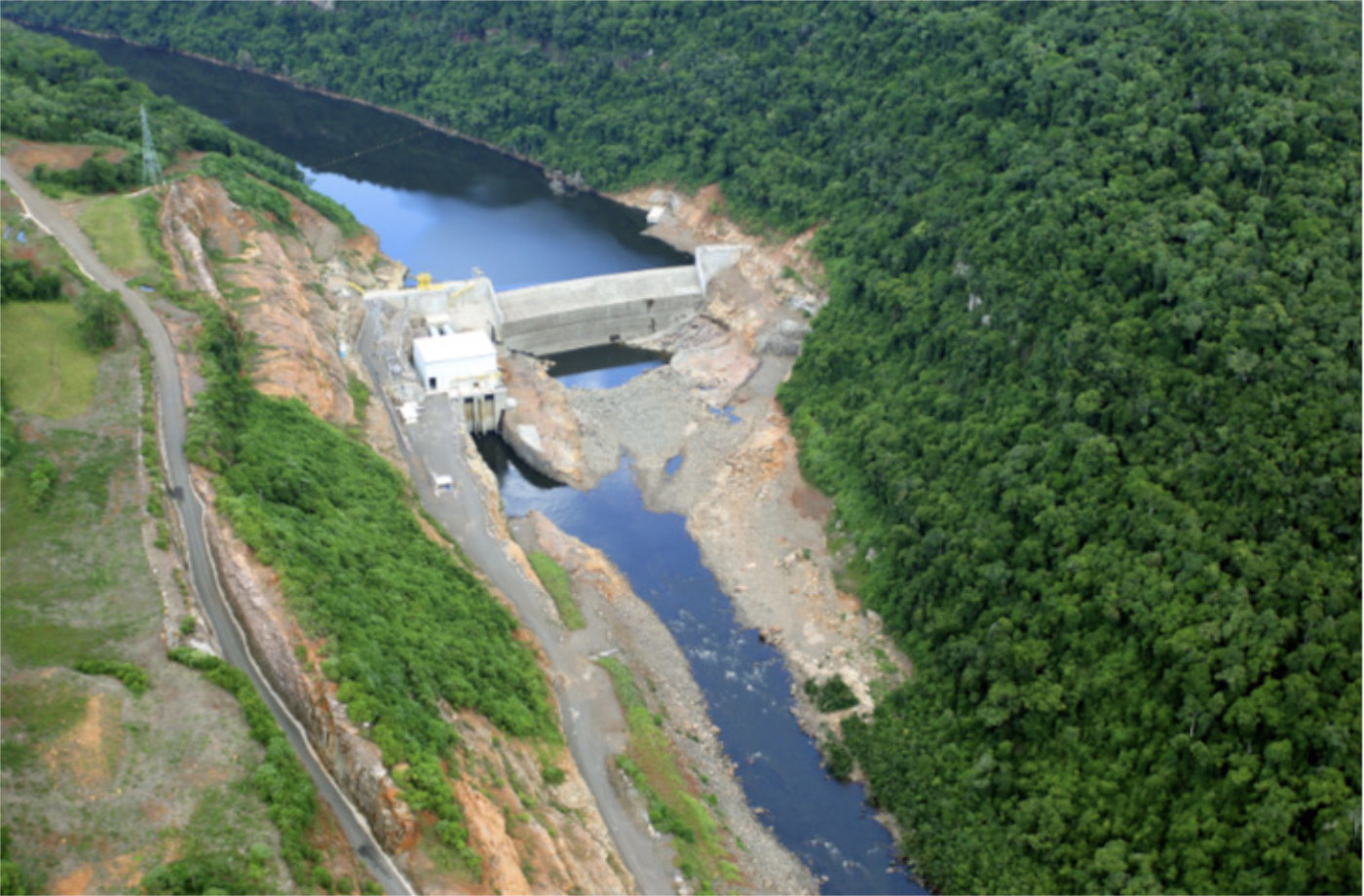

Serra dos Cavalinhos II completed

Particulars

Owner: Serra dos Cavalinhos II Energética S.A.

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 24 m3x106

Height: 42 metres

Length: unknown

Volume of RCC: 33 m3x103

Total volume: 80 m3x103

Construction Dates

Start of Project: /11 ( 2011)

Start of RCC: /12 ( 2012)

End of RCC: /12 ( 2012)

End of Project: /13 ( 2013)

Country: Brazil

River: unknown

DMS Co-ordinates: 28˚47'33.06"S, 50˚33'55.85"W

DD Co-ordinates: -28.792517, -50.565514

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)
72
Pozzolan (kg/m3)Pozzolan Type
18
